Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
131
Program example for jumps
Task
Approaching points on a circle segment:
Existing conditions:
Start angle: 30° in R1
Circle radius: 32 mm in R2
Position spacing: 10° in R3
Number of points: 11 in R4
Position of circle center in Z: 50 mm in R5
Position of circle center in X: 20 mm in R6

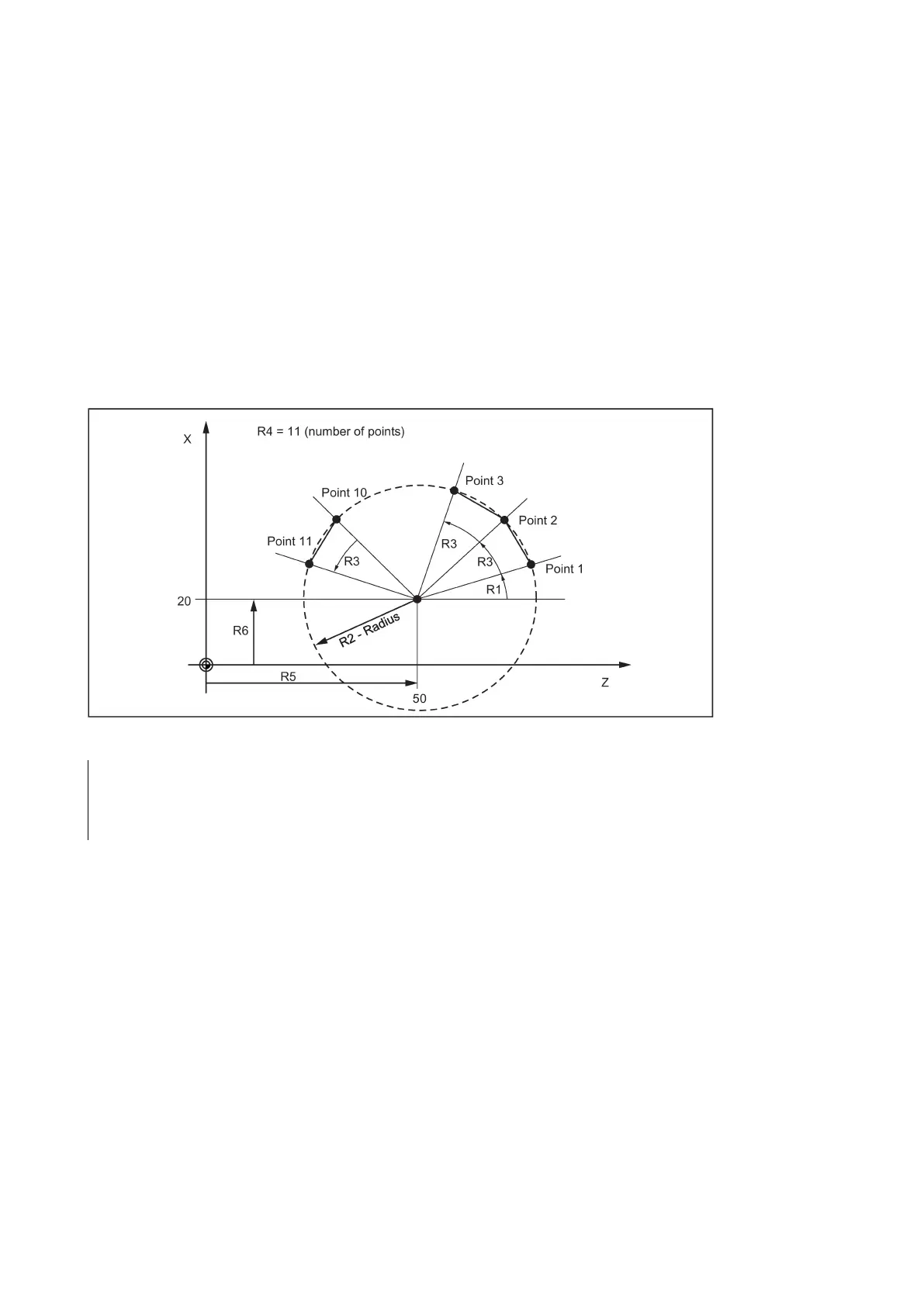

See the following illustration for linear approach of points on a circle segment:
N10 R1=30 R2=32 R3=10 R4=11 R5=50 R6=2 0
;Assignment of initial values
N20 MC1: G0 Z=R2*COS (R1)+R5 X=R2*SIN( R1)+R6
;Calculation and assignment to axis ad dresses
In block N10, the starting conditions are assigned to the corresponding arithmetic parameters. The calculation of the
coordinates in X and Z and the processing takes place in N20.
In block N30, R1 is incremented by the clearance angle R3, and R4 is decremented by 1.
If R4 > 0, N20 is executed again; otherwise, N50 with End of program.
