Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
22 6FC5398-4DP10-0BA6, 09/2017
4.

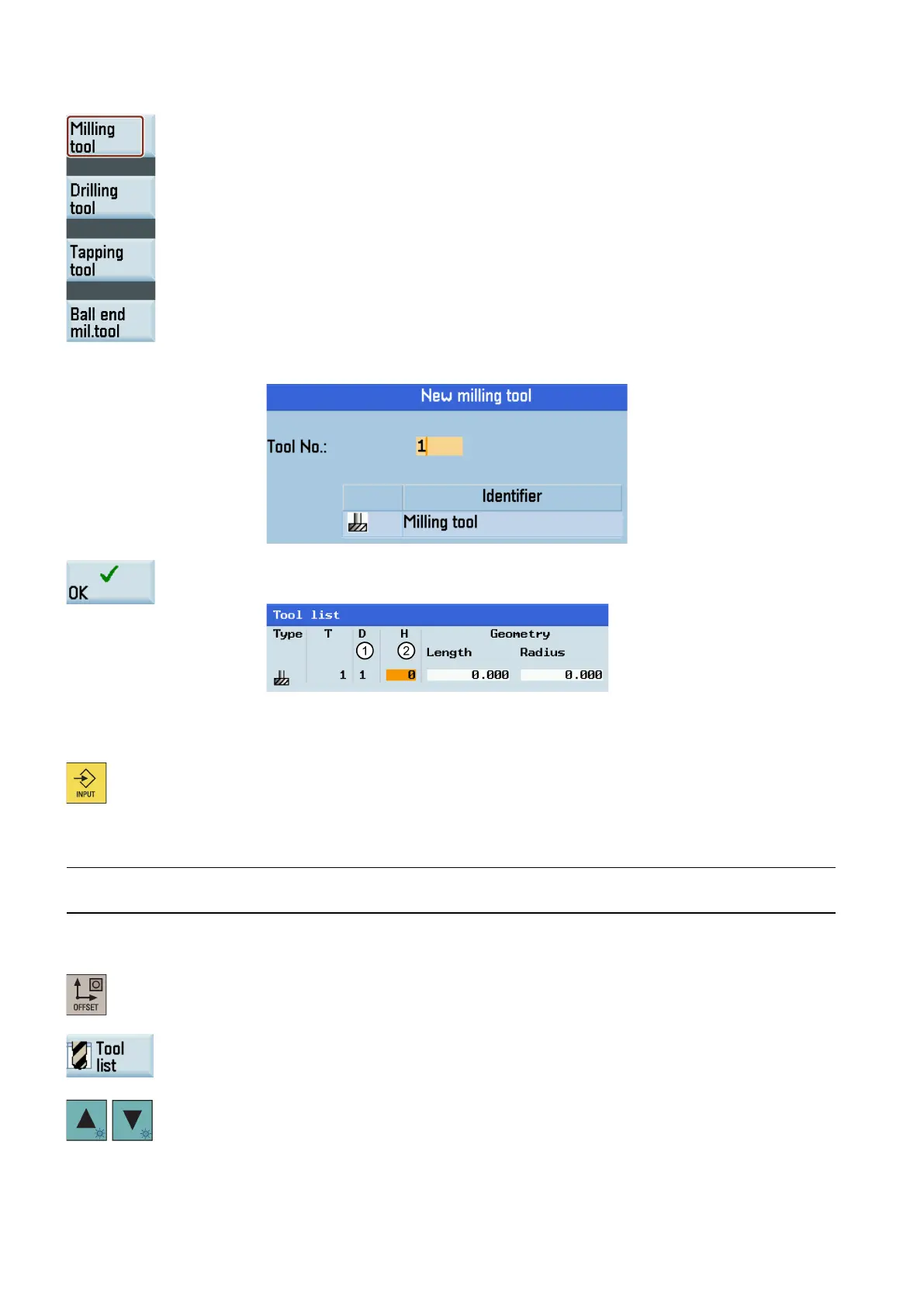

Select a tool type (for example, a milli
ng tool) with the corresponding softkey.
5.
Enter the tool number in the following window:
6.
Press this softkey to confirm your settings. The window below shows the information of the
new tool created. Set the desired tool data in this window.
•
Column
①
indicates the tool offset number in Siemens dialect mode.
•
Column ② indicates the tool offset number visible only in ISO dialect mode.
7.
Press this key to confirm your settings.
6.2
Creating/changing a cutting edge
Note
Before creating or changing cutting edges, you must first
create tools (Page 21).
Operating sequence
1.
Select the offset operating area.
2.
Open the tool list window.
3.
Select the tool to which you desire to add a cutting edge.
