Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
267
13.5
Programming (Example 4)
Machining requirements

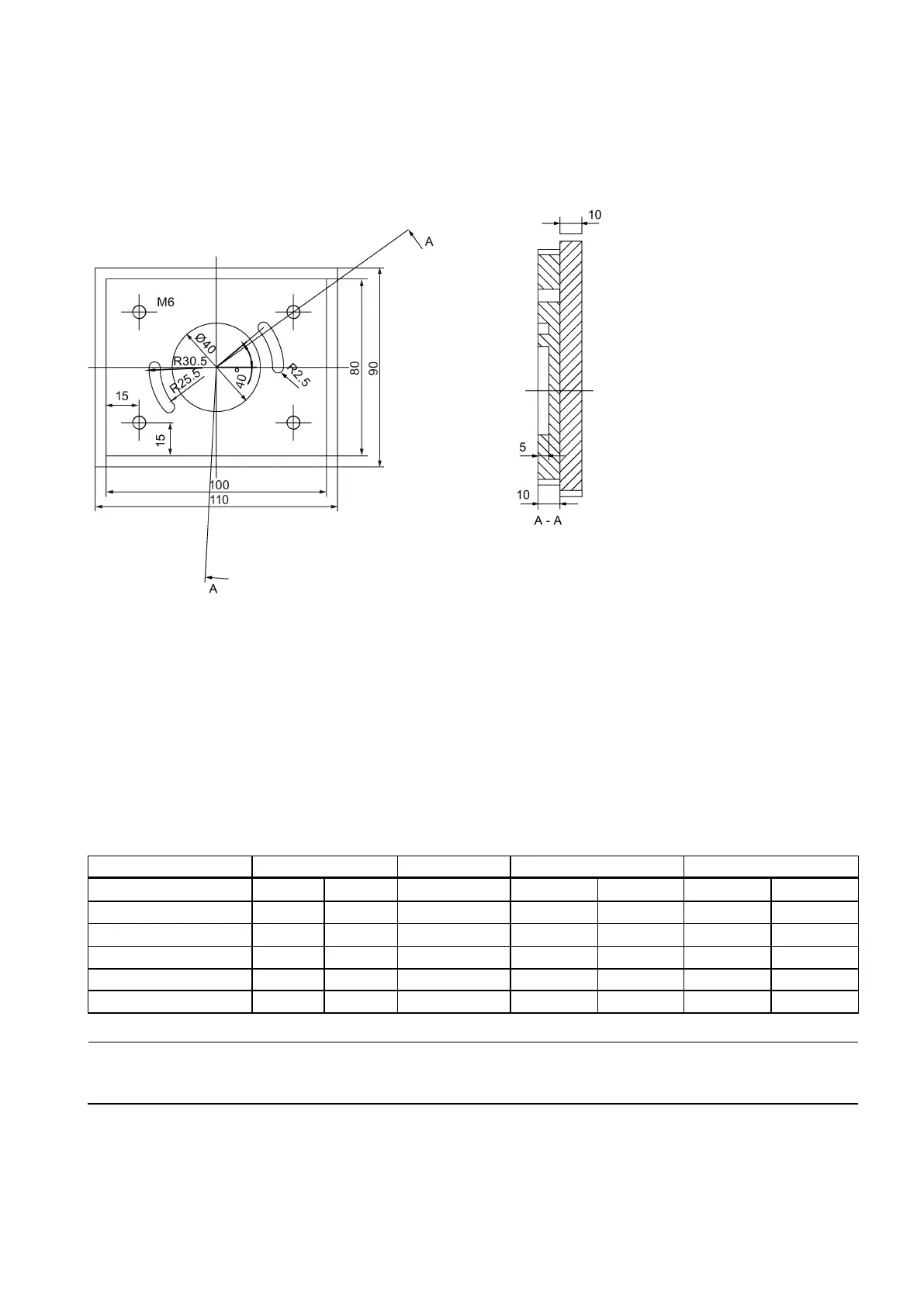

Workpiece drawing (unit: mm)
Technical requirements
● The arc transition must be smooth, without lapping.
● The cutting trace must be even.
● The sharp edges must be rounded.
Blank data
Blank material: Cube aluminum
Blank length: 100 mm
Blank width: 80 mm
Blank height: 60 mm (machining length: 46 mm; clamping length: 10 mm)
Required tool
Tool type
Tool number
Tool diameter
Roughing
Finishing
DIN ISO (mm) Speed Feedrate Speed Feedrate
Face milling tool
T1D1
T1H1
50
1500
600
2500
600
End milling tool T2D1 T2H2 12 4000 600 4000 600
End milling tool T3D1 T3H3 4 4000 600 4000 600
Drilling tool
T4D1
T4H4
5
1200
100
1200
100
Tapping tool
T5D1
T5H5
6
600
600
600
600
Note
• When programming in ISO mode, you need to set the H numbers of T1 to T5 as 1 to 5 respectively in the tool list;
•
Cut the workpiece manually after machining is over.
