Programming and Operating Manual (Milling)
278 6FC5398-4DP10-0BA6, 09/2017
G1 Z-5 F50
G1 G41 X28 Y0 F600
G3 X17.678 Y17.678 CR=28
G3 X14.142 Y14.142 CR=2.5
G2 X23 Y0 CR=23
G3 X28 CR=2.5
G1 G40 X25.5 Y0
G0 Z100
M17
Then you can proceed with the operations for "program simulation and execution
(Page 278)".

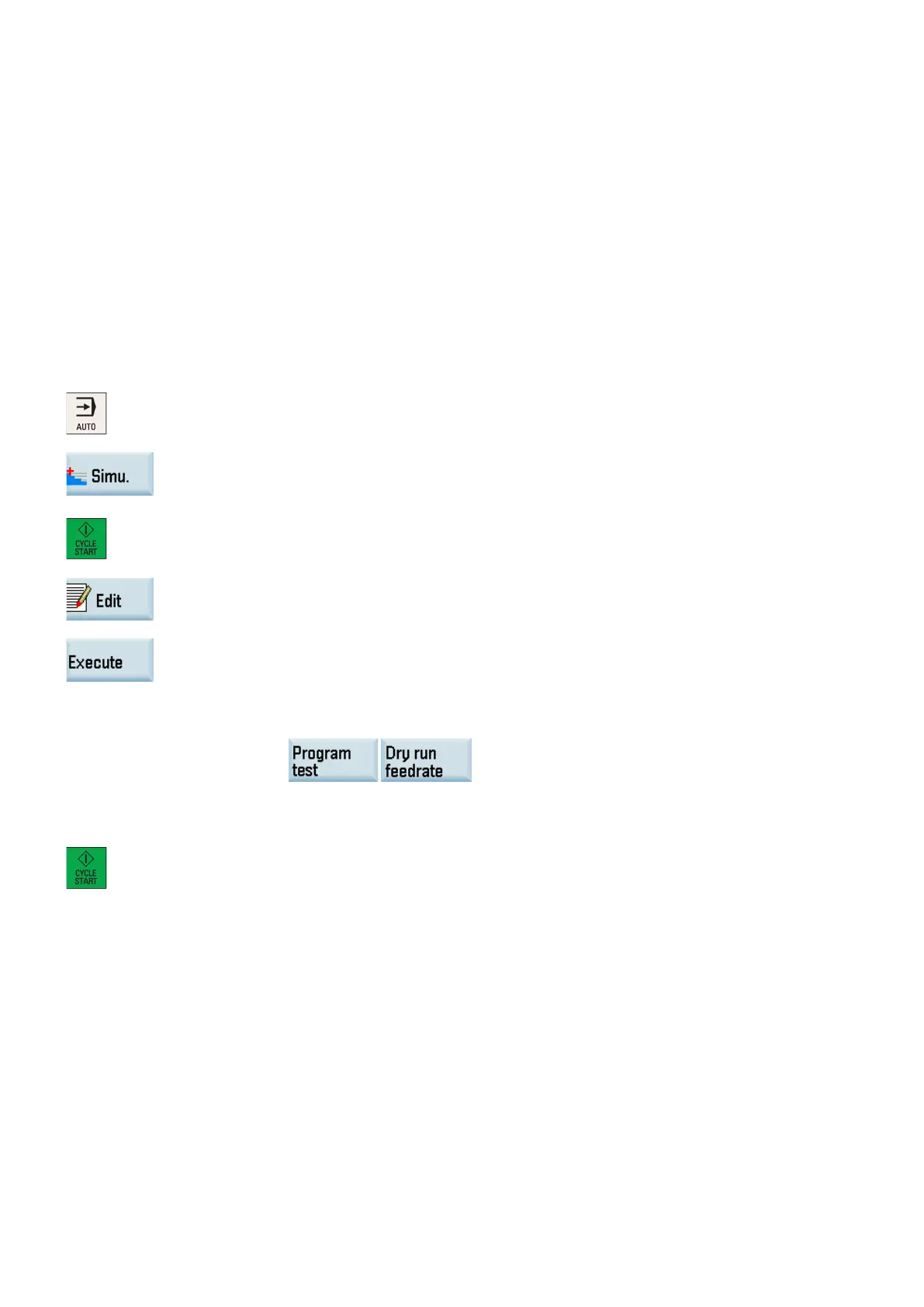

Program simulation and execution
Press this softkey to open the program simulation window, and the program contro
l mode
PRT is automatically activated.
Press this key to start the simulation for the the selected part program.
After you finish the simulation, you can press this softkey to return to the program editor
window.
Press this softkey and the system automatically changes to "AUTO" mode in the machining
operating area.
Make sure the following preconditions are met before start machining:
These two softkeys have been deactivated.
The feedrate override is 0%.
The safety door is closed and the coolant is switched on.
Make sure the safety door is c
losed and the coolant is switched on.
Press this key to start workpiece machining.
