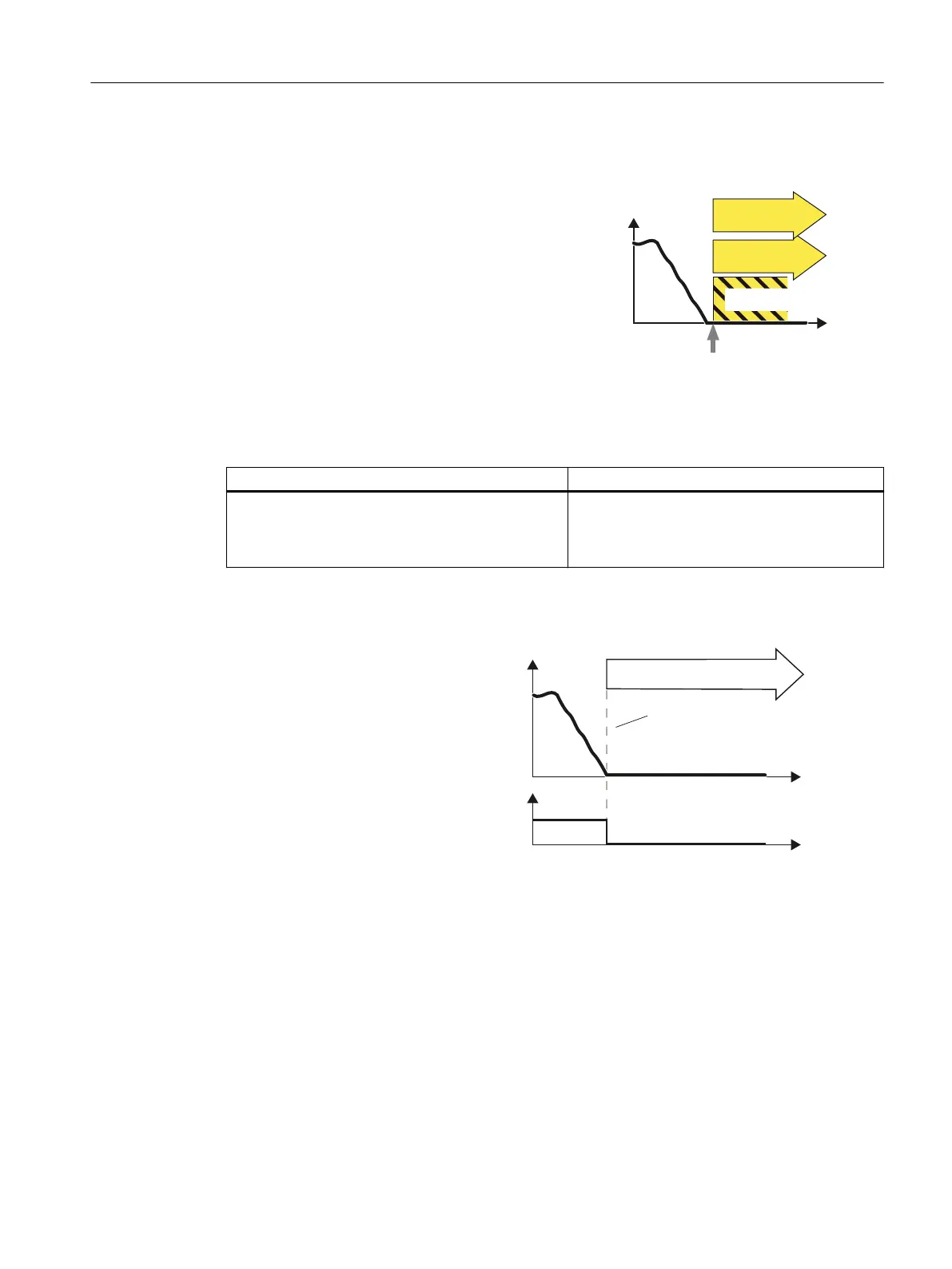

4.5 SBC (Basic/Extended)
Definition according to EN 61800-5-2:
"The SBC function supplies a safe output
signal to control a holding brake."
6SHHG
6HOHFW672
STO
SBC
W
Safe Brake Control (SBC)
Example of how the function can be used
Example Possible solution
The safe control of a motor holding brake must be
guaranteed in order to guarantee the motor is at a
standstill.
SBC is (if configured) initiated together with
STO. The Motor Module / Safe Brake Relay /
Safe Brake Adapter then carries out the action
and safely controls the outputs for the brake.
How does SBC function in detail?
The converter recogni‐
zes the selection of
STO via a failsafe input
or via the safe commu‐
nication PROFIsafe.
The converter then
safely switches off the
torque of the connected
motor.
SBC is (if configured) in‐
itiated together with
STO. The Motor Mod‐
ule / Safe Brake Relay /
Safe Brake Adapter
then carries out the ac‐
tion and safely controls
the outputs for the
brake.
7KHPRWRUWRUTXHLVVZLWFKHGRII
6%&FRQWUROVDEUDNHVDIHO\
6SHHG
672GHVHOHFWLRQ
352),VDIHFRQWURO
ZRUG
6726%&
W
W
4.5.1 Details and parameterization
The "Safe Brake Control" function (SBC) is used to safely control holding brakes that function
according to the closed-circuit principle (e.g. motor holding brake).
Safety functions integrated in the drive
4.5 SBC (Basic/Extended)
Safety Integrated (with SINAMICS S120)
Commissioning Manual, 02/2020, A5E46305916B AB 109
