6.3.8 Deselecting safety functions integrated in the drive
You deselect safety functions integrated in the drive by accessing the corresponding drive
addresses in the safety program and then set/reset the relevant bits.
Precondition
● PLC tags for the signals required have been added (Page 228).
Procedure
Proceed as follows to select or deselect a safety function integrated in the drive in the safety
program:
1. Open the F-block, e.g. Main_Safety_RTG1 [FB1010].
2. Insert a new network, and in the network, link (logically combine) the signals:
21
3 3a
'5B1U!B
6LFKHUKHLWV
IXQNWLRQ!
'HVHOHFWLRQB
6LFKHUKHLWV
IXQNWLRQ!
'5B1U!B
6LFKHUKHLWV
IXQNWLRQ!
No. Instruction/variable Purpose/procedure
(1) ---| |---NO contact:
"Deselection_<safety function>"
Example: "deselectionSs1"
or
Drive I/O address with ZSW bit
Address the PLC tag "Deselection_<safety
function>" or the drive I/O address, which
transfers the associated bit of the safety con‐
trol word.
(2) ---( )--- Assignment:
"DR_<drive number>_<safety function>"
Example: "drive1Ss1Disable"
or
Drive I/O address with STW bit
Assign the logic operation result to the safety
function in the drive involved.
(3) Branch If you deselect the safety function involved for
several drives, insert a branch and operation
for each drive (see 3a).
(3a) ---( )--- Assignment:
"DR_<drive number>_<safety function>"
Example: "drive2Ss1Disable"
or
Drive I/O address with ZSW bit
Assign the logic operation result to the safety
function in the drive involved.

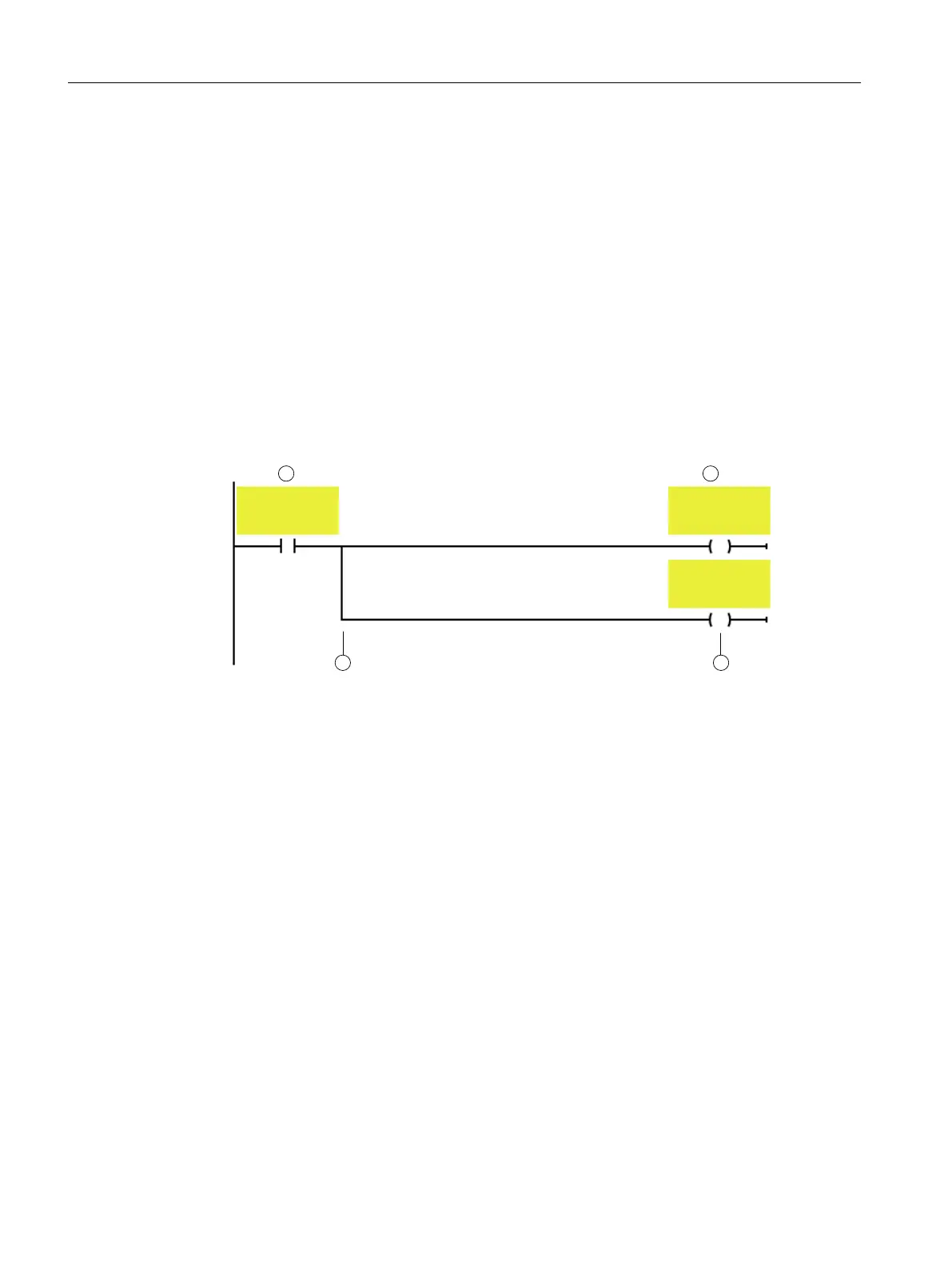

Figure 6-6 Inserting a new network
Commissioning and configuring
6.3 Generating a safety program
Safety Integrated (with SINAMICS S120)
240 Commissioning Manual, 02/2020, A5E46305916B AB
