6.6.3 SBC
Precondition
● The Safety Integrated commissioning mode (Page 249) is active for the drive to be
configured.
● At least one safety monitoring function is enabled for the drive.
● A motor holding brake has been configured for the drive.
Display "Safe brake control - SBC" commissioning screen
MENU SELECT > Commissioning > Menu forward key > Safety > Functions > SBC

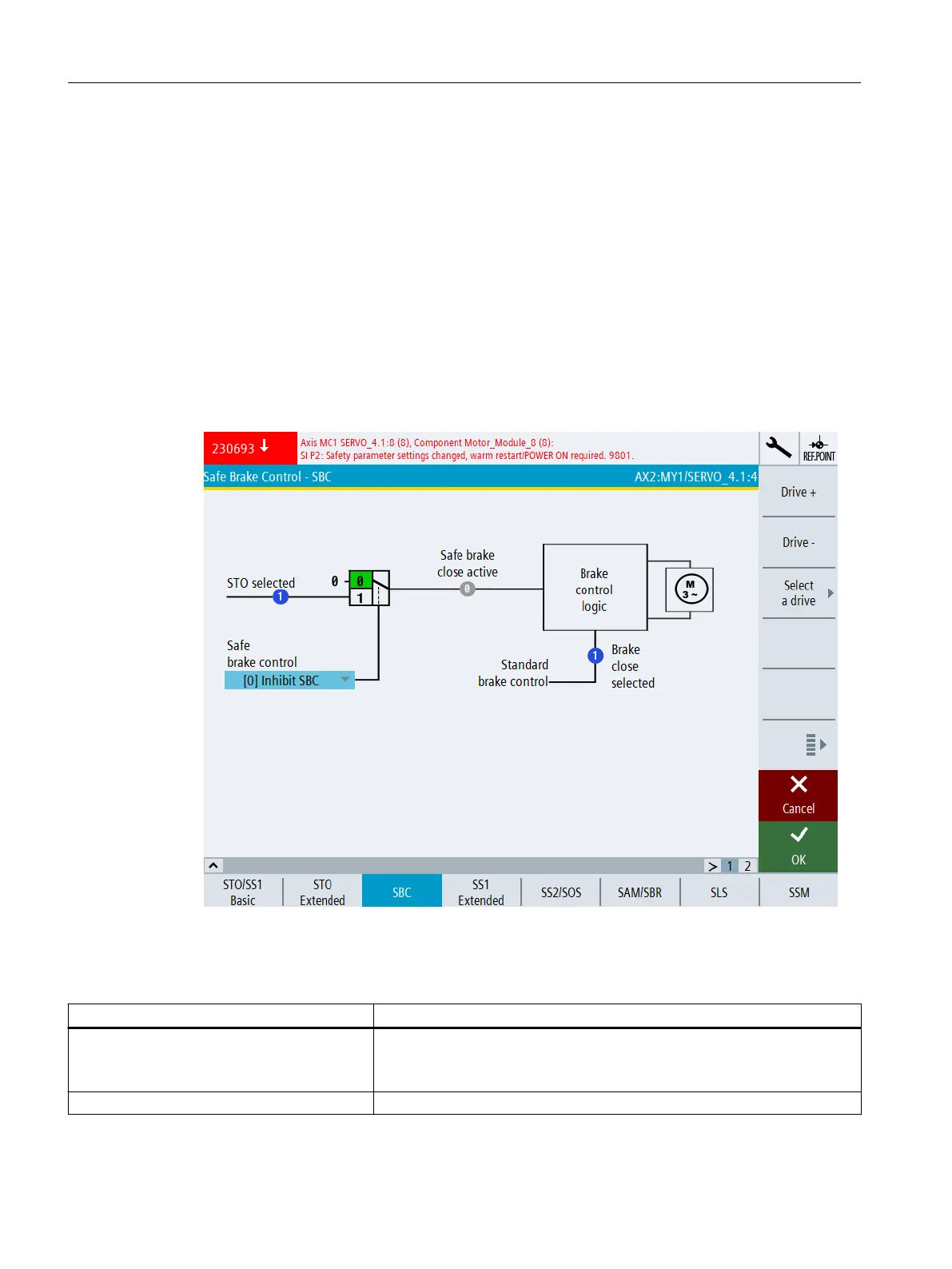

Figure 6-21 Safe brake control - SBC
Status information
Status Meaning
STO selected
r9773.0
Display and BICO output for the status of Safety Integrated on the drive
(Control Unit + Motor Module):
STO selected in the drive
Switching element See "Safe brake control" setting
Commissioning and configuring
6.6 Configuring safety functions integrated in the drive
Safety Integrated (with SINAMICS S120)
272 Commissioning Manual, 02/2020, A5E46305916B AB
