7.4.3 SI telegrams overview
The telegram types for PROFIsafe and SIC/SCC for the respective drives/axes are displayed
in the "SI telegrams overview" diagnostic screen.
Call
MENU SELECT > Diagnostics > Menu forward key > Safety > SI telegrams

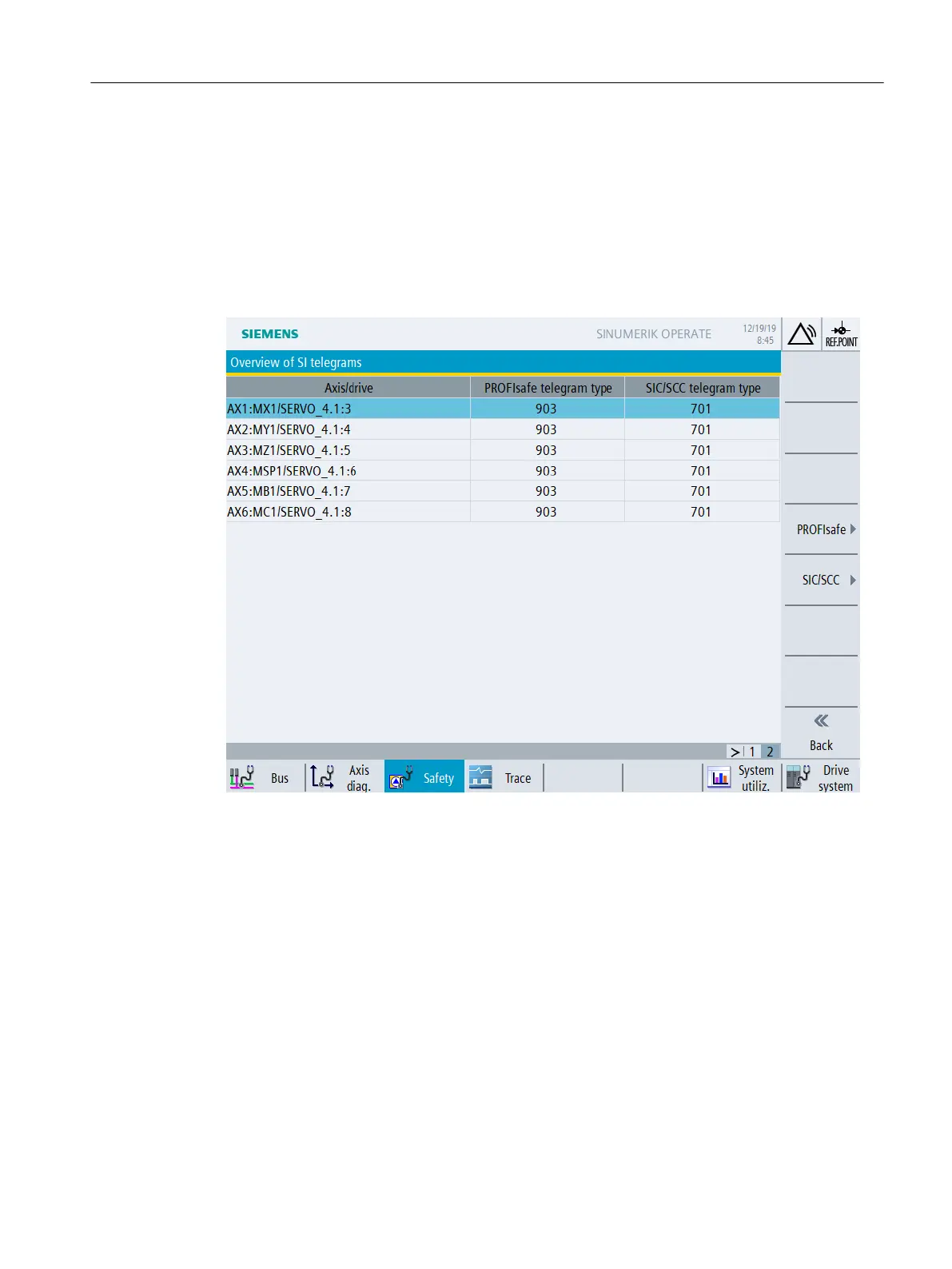

Figure 7-7 "SI telegrams overview" diagnostic screen
This screen is simultaneously used as entry to the following diagnostic screens:
● SI telegrams PROFIsafe (Page 318)
● PROFIdrive SI telegrams (Page 319)
Additional information
You will find general information on safety-relevant telegrams in Chapter Controlling safety
functions integrated in the drive (Page 205).
