7.4.6 SI checksums
In the "SI checksums overview" diagnostic screen, all of the safety reference and actual
checksums are displayed for the axes and drives. Status symbols are used to flag differences
between reference and actual checksums
Calling "checksums"
MENU SELECT > Diagnostics > Menu forward key > Safety > SI checksums

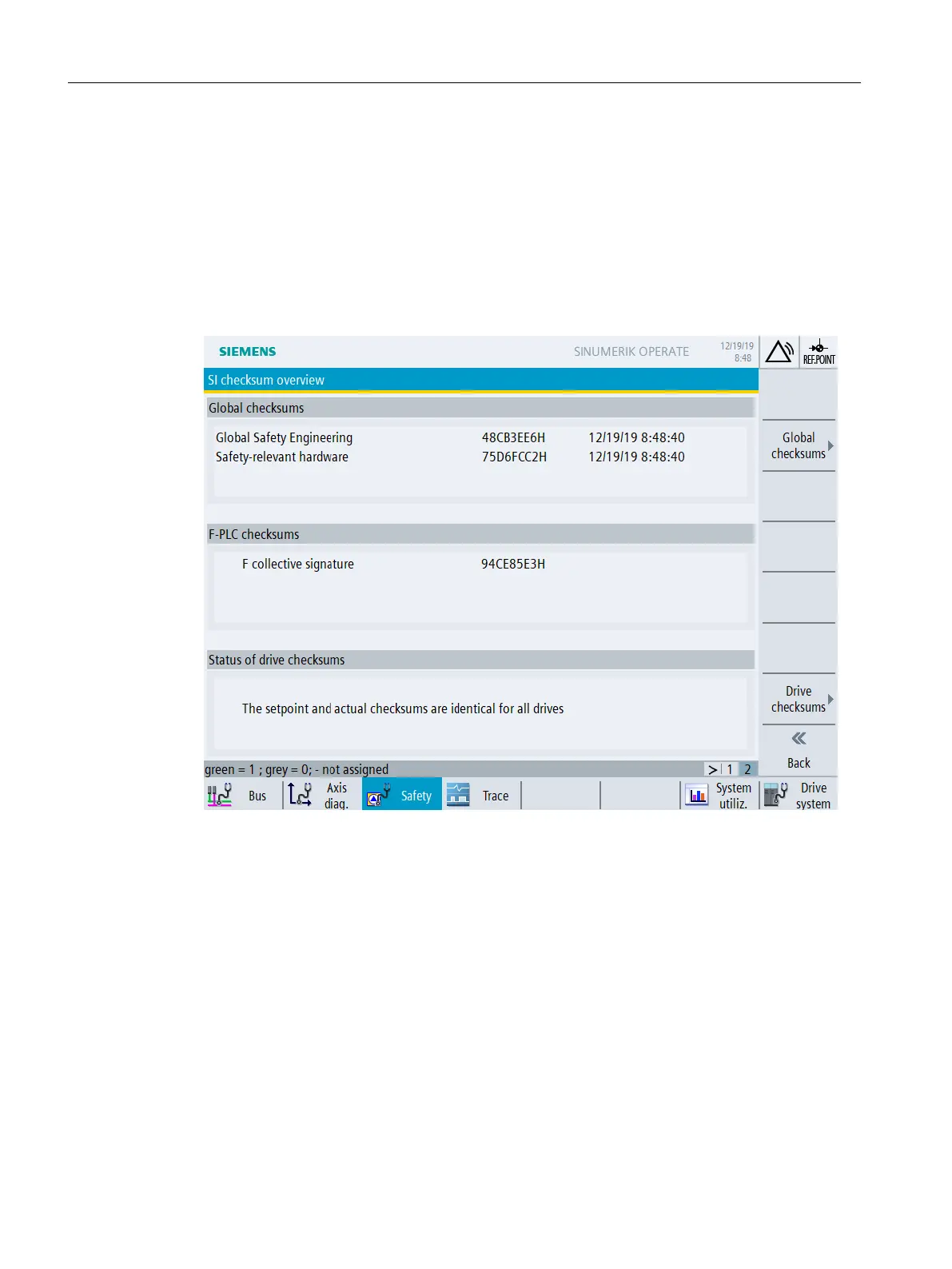

Figure 7-10 "SI checksums overview" diagnostics screen
Diagnostics
7.4 Diagnostic functions in the SINUMERIK ONE Commissioning Tool
Safety Integrated (with SINAMICS S120)
320 Commissioning Manual, 02/2020, A5E46305916B AB
