7.4 Diagnostic functions in the SINUMERIK ONE Commissioning Tool
7.4.1 Safety Integrated diagnostics overview
The diagnostics overview includes general information about the operating mode used, the
number and type of axes used - as well as status information about the pending alarms and safe
homing.
Call
MENU SELECT > Diagnostics > Menu forward key > Safety

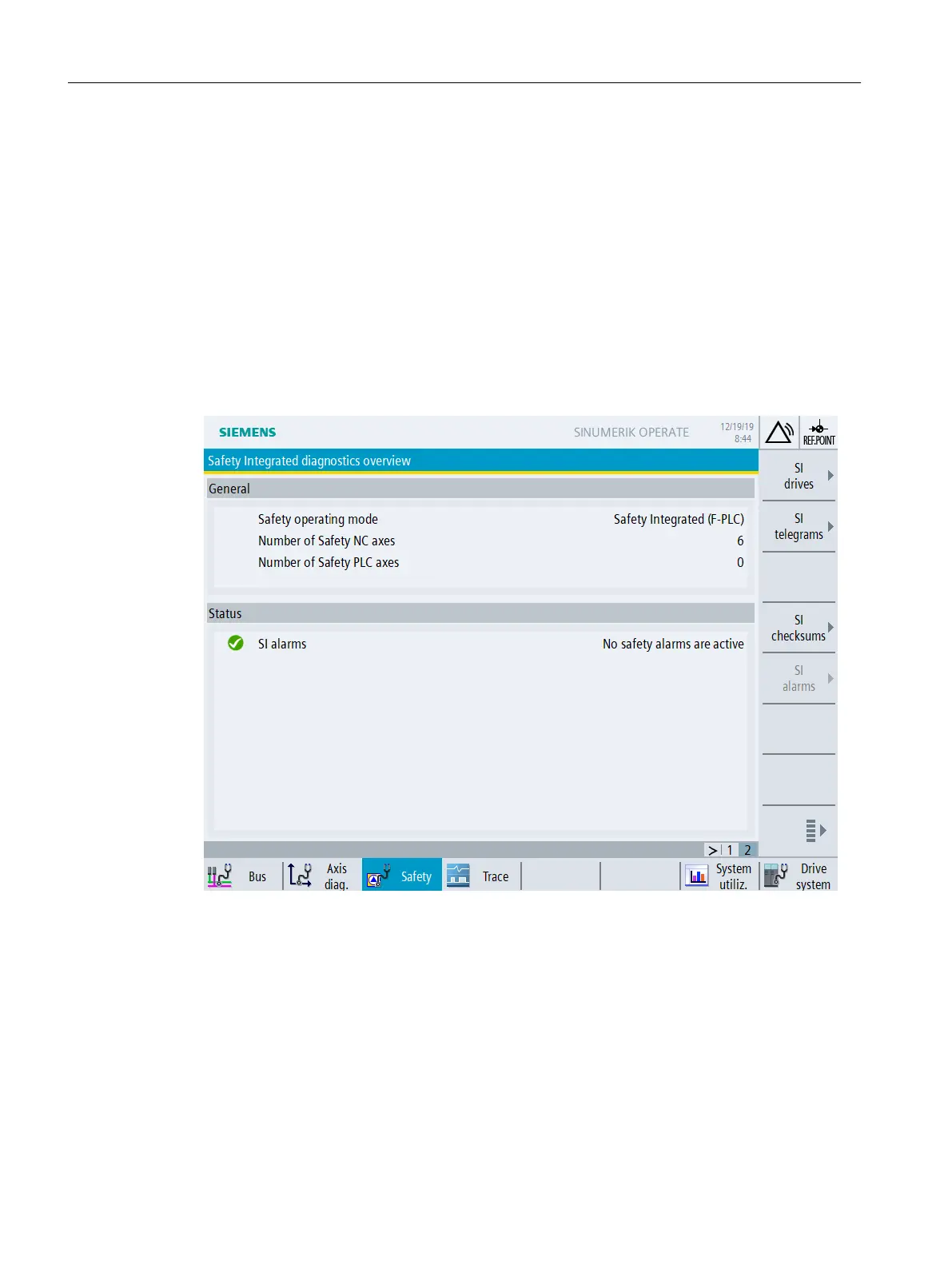

Figure 7-4 Safety Integrated diagnostics overview
This screen is simultaneously used as entry to the following diagnostic screens:
● SI drives (Page 315)
● SI telegrams (Page 317)
● SI checksum (Page 320)
● SI alarms (Page 322)
● SI Safe Cams (Page 323) (via menu forward key)
Diagnostics
7.4 Diagnostic functions in the SINUMERIK ONE Commissioning Tool
Safety Integrated (with SINAMICS S120)
314 Commissioning Manual, 02/2020, A5E46305916B AB
