7.4.2 SI drives status
The configured safety-relevant status and diagnostic information of the selected drive are
displayed in the "SI drive status" diagnostic screen.
Functions, which are not configured for the selected drive, are not displayed on the screen.
The diagnostic screen "SI drive status" is available for basic functions and for extended
functions.
Call "SI drive status - Basic functions"
MENU SELECT > Diagnostics > Menu forward key > Safety > SI drives > Basic functions

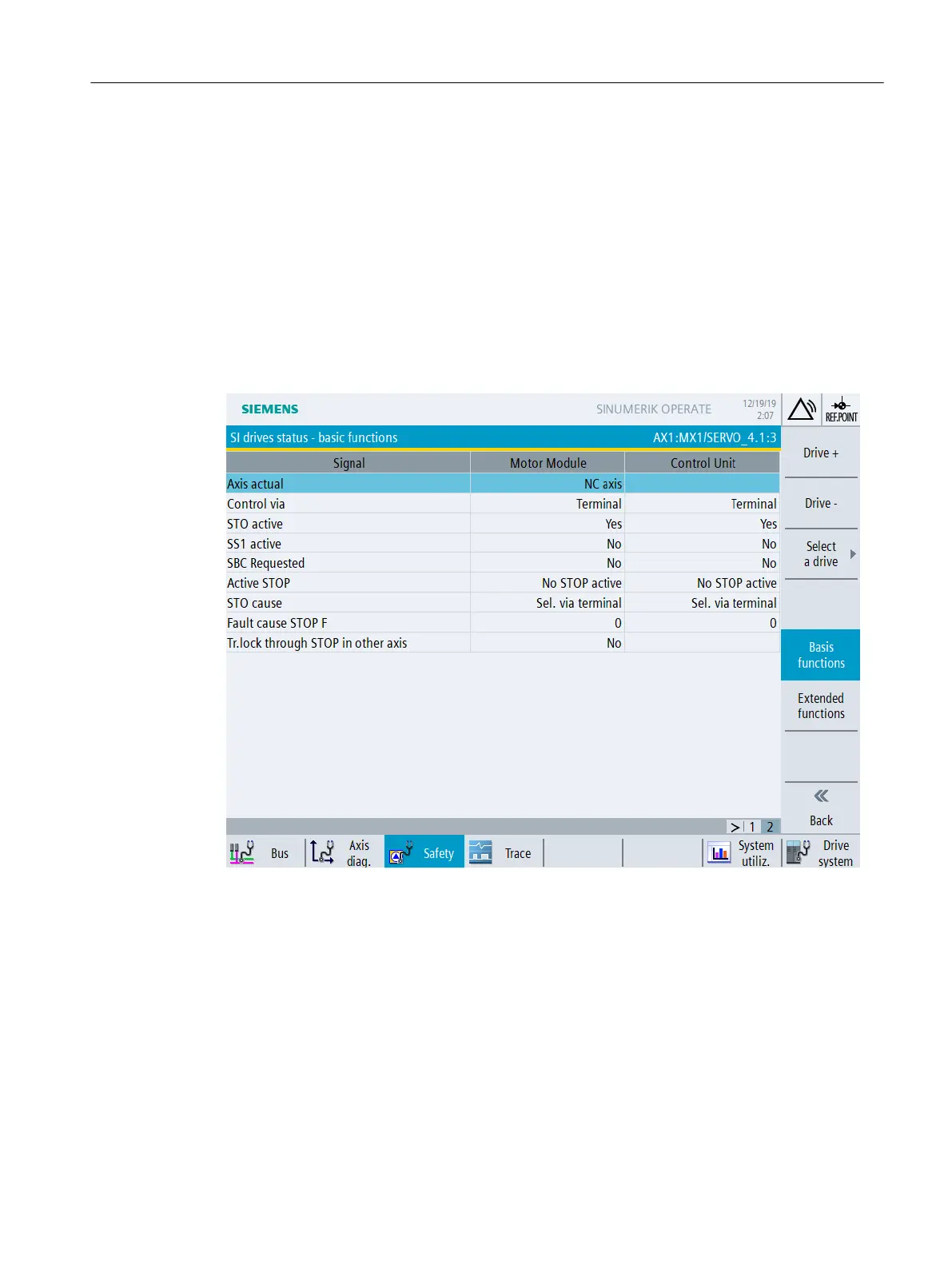

Figure 7-5 Diagnostic screen "SI drive status - Basic Functions"
Diagnostics
7.4 Diagnostic functions in the SINUMERIK ONE Commissioning Tool
Safety Integrated (with SINAMICS S120)
Commissioning Manual, 02/2020, A5E46305916B AB 315
