6.6.5 SS2/SOS
Precondition
● The Safety Integrated commissioning mode (Page 249) is active for the drive to be
configured.
● The drive is configured for operation with an encoder and Extended Functions.
Display "Safe Stop 2 - Safe Operating Stop - SS2/SOS" commissioning screen
MENU SELECT > Commissioning > Menu forward key > Safety > Functions > SS2/SOS

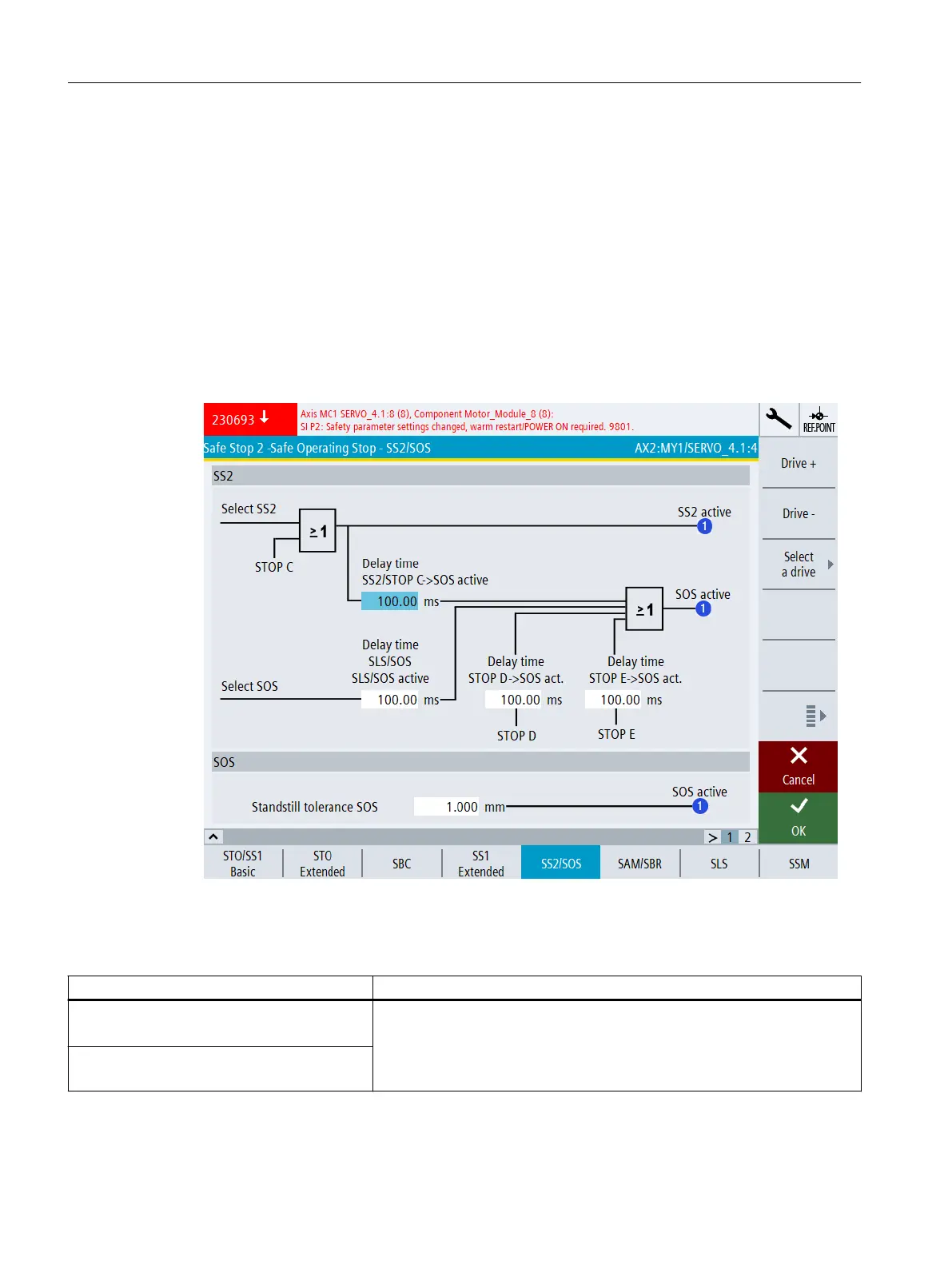

Figure 6-23 Safe Stop 2 - Safe Operating Stop - SS2/SOS
Status information
Status Meaning
SS2 active
r9722.2
Status signals for the safety motion monitoring functions integrated in the
drive on monitoring channel 1.
SOS active
r9722.3
Commissioning and configuring
6.6 Configuring safety functions integrated in the drive
Safety Integrated (with SINAMICS S120)
276 Commissioning Manual, 02/2020, A5E46305916B AB
