6.6.9 SSM
Precondition
● The Safety Integrated commissioning mode (Page 249) is active for the drive to be
configured.
● The drive is configured for operation with Extended Functions.
Display "Safe Speed Monitoring - SSM" commissioning screen
MENU SELECT > Commissioning > Menu forward key > Safety > Functions > SSM

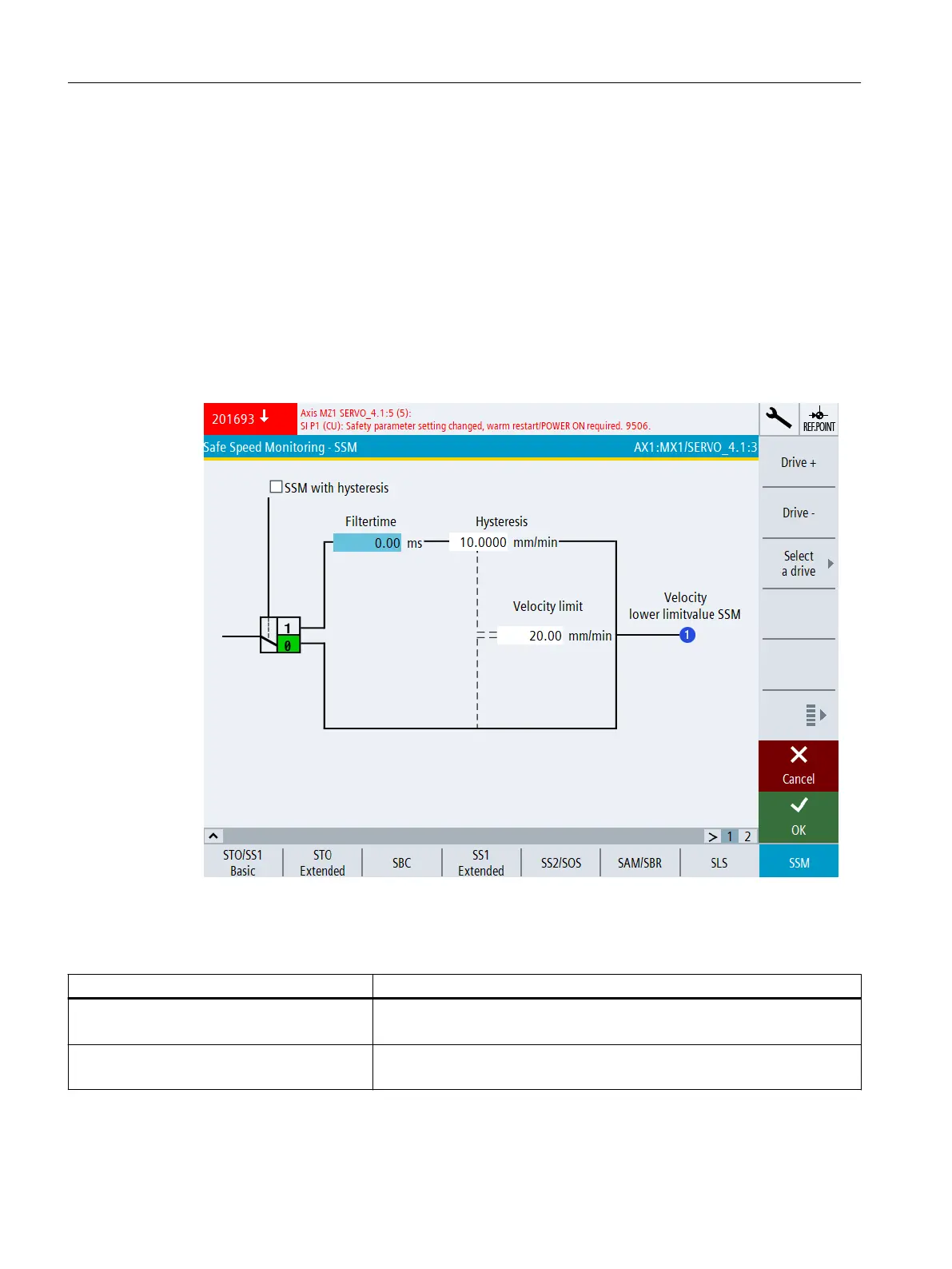

Figure 6-27 Safe Speed Monitor - SSM
Status information
Status Meaning
Switching element (SSM with hysteresis)
p9501.16
Indicates whether the "Hysteresis" and "Filter time" functions are active.
Speed below SSM limit value
r9722.15
Indicates whether the current velocity is below the parameterized velocity
limit.
Commissioning and configuring
6.6 Configuring safety functions integrated in the drive
Safety Integrated (with SINAMICS S120)
286 Commissioning Manual, 02/2020, A5E46305916B AB
