6.6.4 SS1 Extended
Precondition
● The Safety Integrated commissioning mode (Page 249) is active for the drive to be
configured.
● The drive is configured for operation with an encoder and Extended Functions.
Display "Safe Stop 1 - SS1 Extended" commissioning screen
MENU SELECT > Commissioning > Menu forward key > Safety > Functions > SS1 Extended

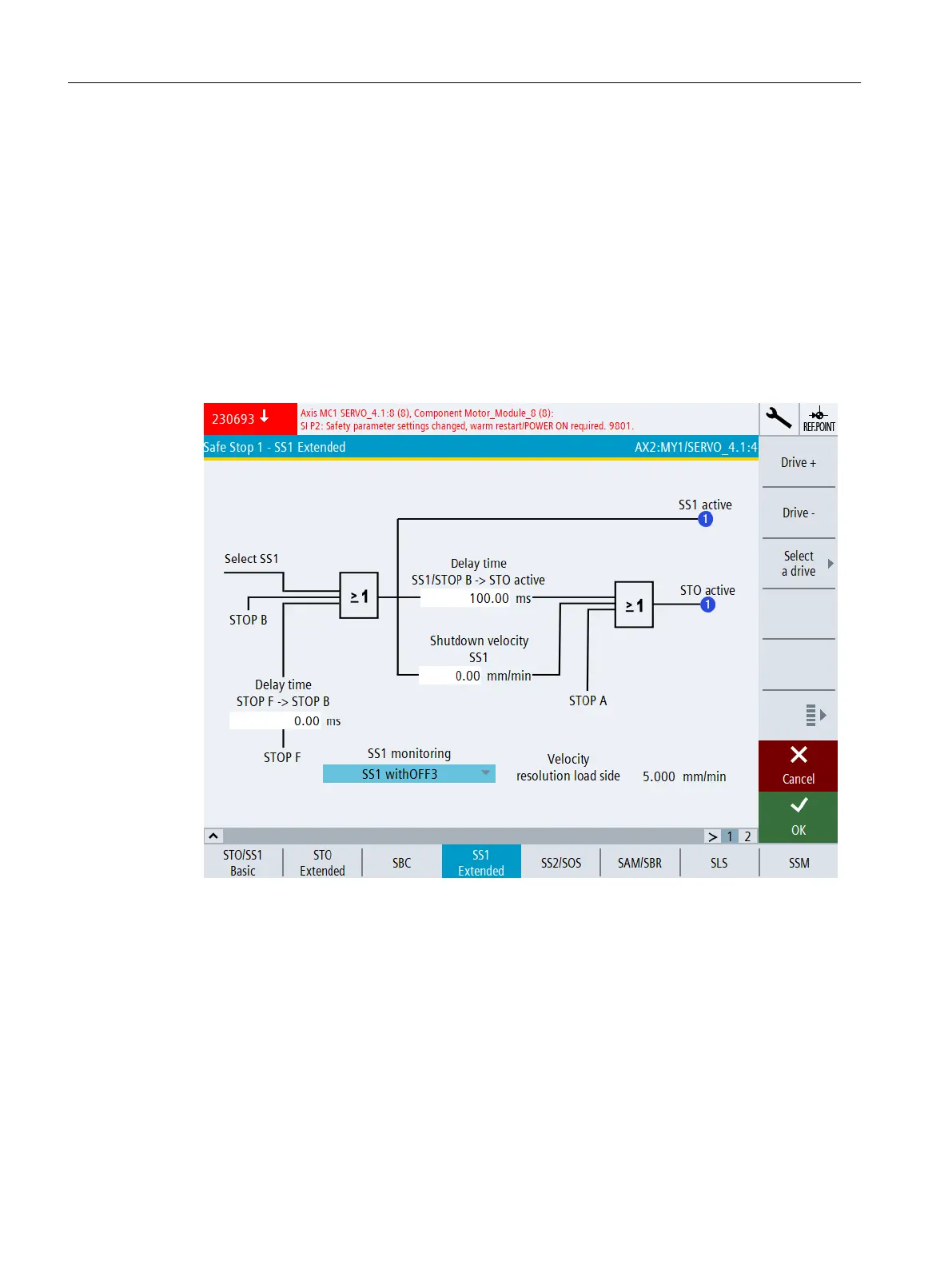

Figure 6-22 Safe Stop 1 - SS1 Extended
Commissioning and configuring
6.6 Configuring safety functions integrated in the drive
Safety Integrated (with SINAMICS S120)
274 Commissioning Manual, 02/2020, A5E46305916B AB
