SIPROTEC
®
4 Devices
4-14
7SA6 Manual
C53000-G1176-C156-2
4.4 Control
The multiple application possibilities for SIPROTEC
®
4 devices allow an equally flex-
ible concept for command processing and control.
Remote If the device is integrated into a master control system, then command outputs can be
remotely controlled via the system interface using telegrams from
G Higher-level control systems, or
G substation control devices such as SICAM SC.
Local On-site, the SIPROTEC
®
4 device offers the possibility to control a circuit breaker or
primary switching equipment using the operator control panel.
For devices with a four-line display, switching operations are controlled using:
• Main menu → Control → Breaker/Switch → Control → Equipment and in-
tended direction ON or OFF (Figure 4-9), or
• The Function Keys F1 to F4.
The functionality of these keys is programmable.

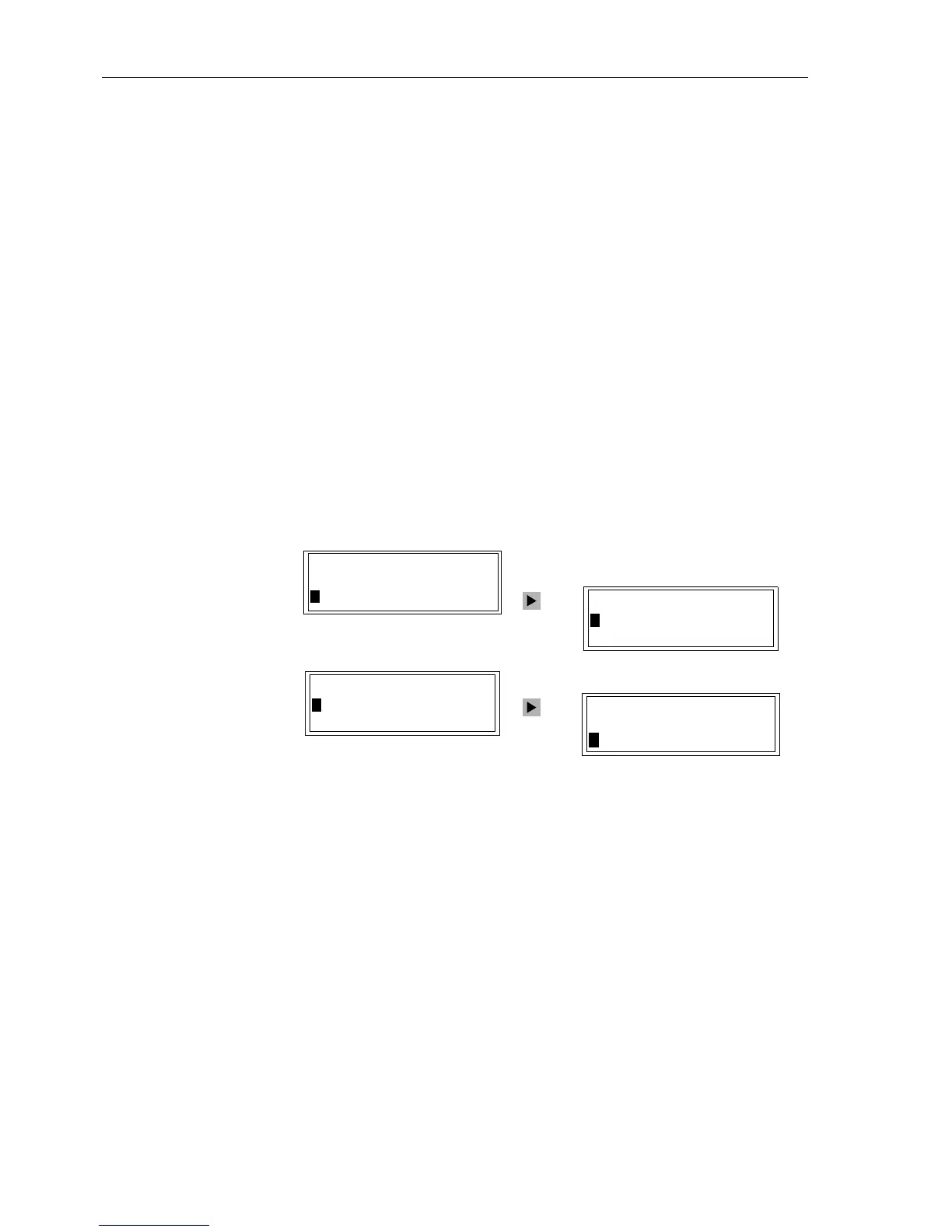

Figure 4-9 On-site control using the operator control panel
MAIN MENU 03/05
---------------------
Measurement –> 2
>Control –> 3
CONTROL 01/03
--------------------
>Breaker/Switch–> 1
>Tagging –> 2
CONTROL 01/03
--------------------
>Breaker/Switch–> 1
>Tagging –> 2
BREAKER/SWITCH 02/04
--------------------
>Display –> 1
>Control –> 2
