Siemens siprotec 7SA6 User Manual

Functions
6-14
7SA6 Manual
C53000-G1176-C156-2
6.1.2 Setting Groups
Purpose of Setting
Groups
A setting group is a collection of setting values to be used for a particular application.
In the 7SA6 relay, four independent setting groups (A to D) are possible. The user can
switch between setting groups locally, via binary inputs (if so configured), via the op-
erator or service interface using a personal computer, or via the system interface.
A setting group includes the setting values for all functions that have been selected as
Enabled during configuration (see Chapter 5). Whilst setting values may vary among
the four setting groups, the selected functions of each setting group remain the same.
Multiple setting groups allows a specific relay to be used for more than one application.
While all setting groups are stored in the relay, only one setting group may be active
at a given time.
If multiple setting groups are not required, Group A is the default selection, and the
rest of this sub-section is of no importance.
If multiple setting groups are desired, address 103 Grp Chge OPTION must have
been set to Enabled in the relay configuration. Refer to Chapter 5. Each of these sets
(A to D) is adjusted one after the other.
Copying Setting
Groups
In most cases, only a few settings will vary from setting group to setting group. For this
reason, an option exists to copy stored setting values from one setting group to anoth-
er setting group using DIGSI
®
4:
To copy the setting values from setting group to another setting group, you should
highlight the setting group in the list whose setting values are to be copied. Next, go
to the menu bar, click on Edit and select Copy (see Figure 6-10).

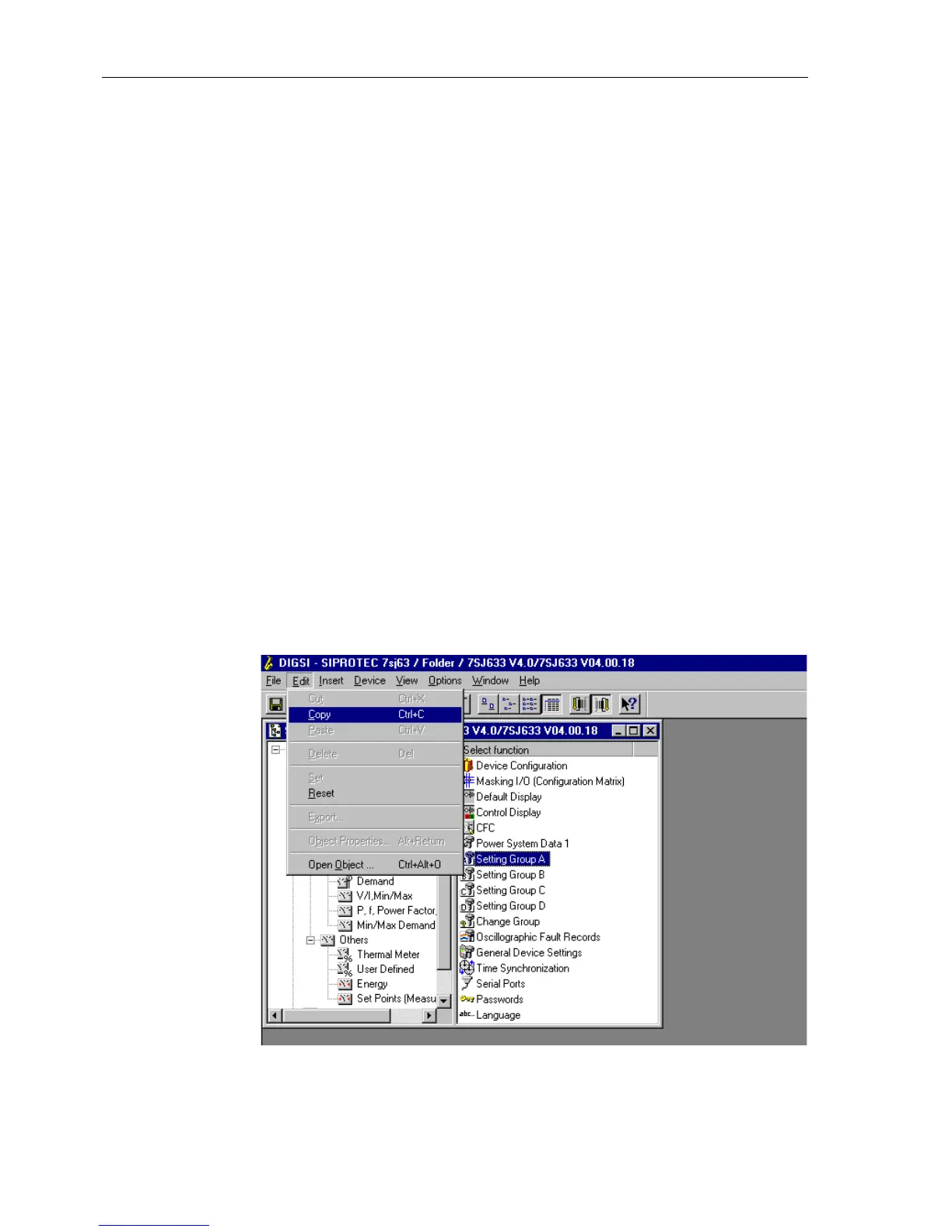

Figure 6-10 Copying a setting group in DIGSI
®
4 – example
