Control During Operation
7-97SA6 Manual
C53000-G1176-C156-2

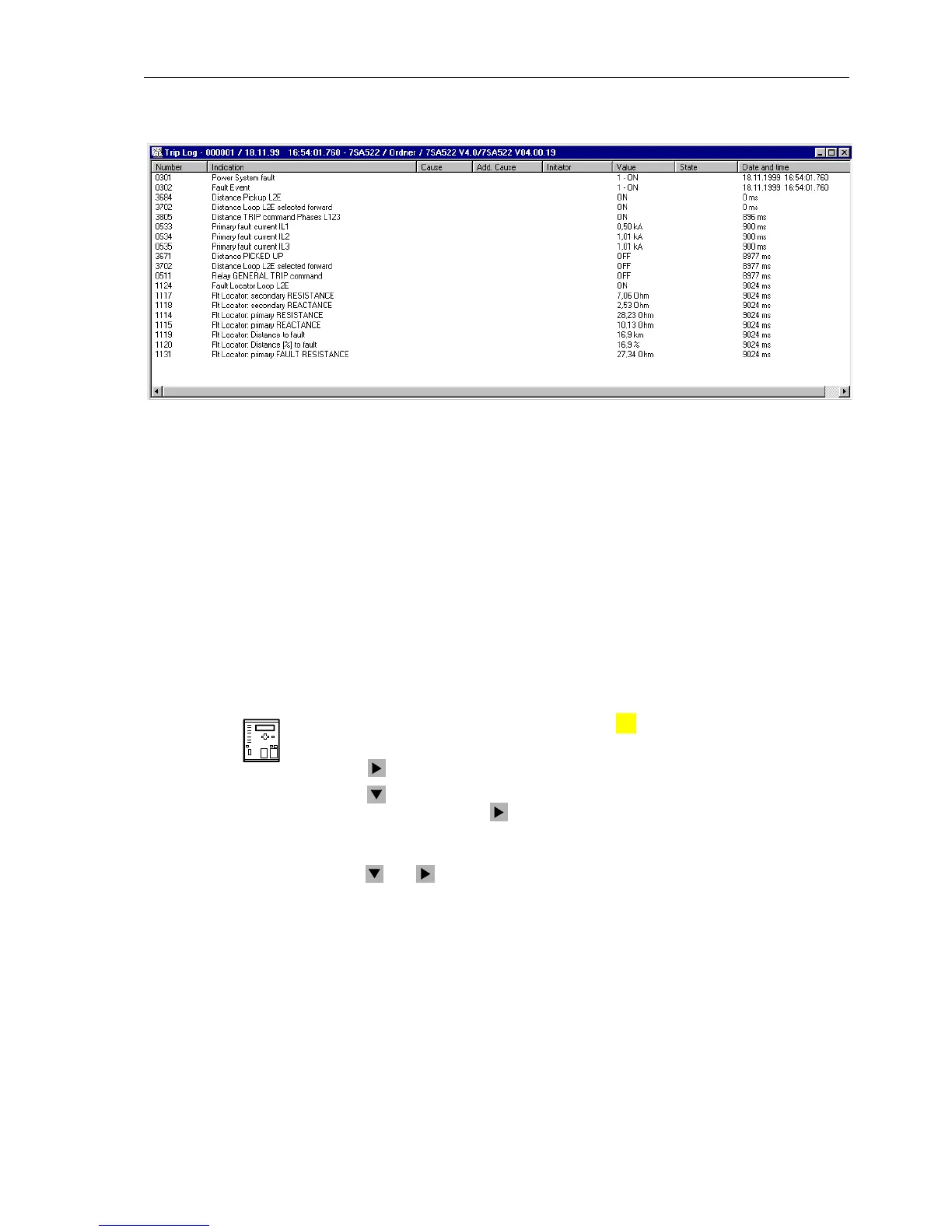

Figure 7-9 Example of fault messages in DIGSI
®
4
7.1.1.4 Earth Fault Messages
Devices with sensitive earth fault detection provide special earth fault logs. The earth
faults are registered if the earth fault detection function is set to “OFF” (Address
3001
= Alarm Only) and an earth fault was already in queue so that the trip delay (T
Sens.E/F
) could expire.
Up to 200 earth fault messages can be stored for the last 8 earth faults.
All available indications are displayed and explained in Appendix B. In a specific case,
of course, only the applicable messages appear on the display.
From the
DeviceFront
With a device ready for operation, first press the key. The MAIN MENU appears.
The first menu item (
Annunciation) is marked.
Press the key to enter the
ANNUNCIATION sub-menu (see Figure 7-1).
Usingthe key,selectthesub-menuitem
Earth Fault Messages andmoveto
the earth fault logs using the key. The
EARTH FAULT MESSAGES selection ap-
pears.
In this sub-menu, the indications for the last 3 network faults can be selected, again
using the and keys. See the example in Figure 7-10.
If no messages are present for a fault, then entrance is denied and “
List Empty”is
displayed.
The messages within an earth fault log are listed in chronological order and numbered
consecutively, from the oldest to the newest ones.
The inception of an earth fault is identified with the date (without indication of the year)
and time in hours, minutes, and seconds (resolution = 1 ms). See the example in Fig-
ure 7-10.
MENU
