SIPROTEC
®
4 Devices
4-28
7SA6 Manual
C53000-G1176-C156-2
Settings Double click on a protective function shown in the listbox of Figure 4-22 to obtain a
dialogue box for entering the settings associated with this function (Figure 4-23).

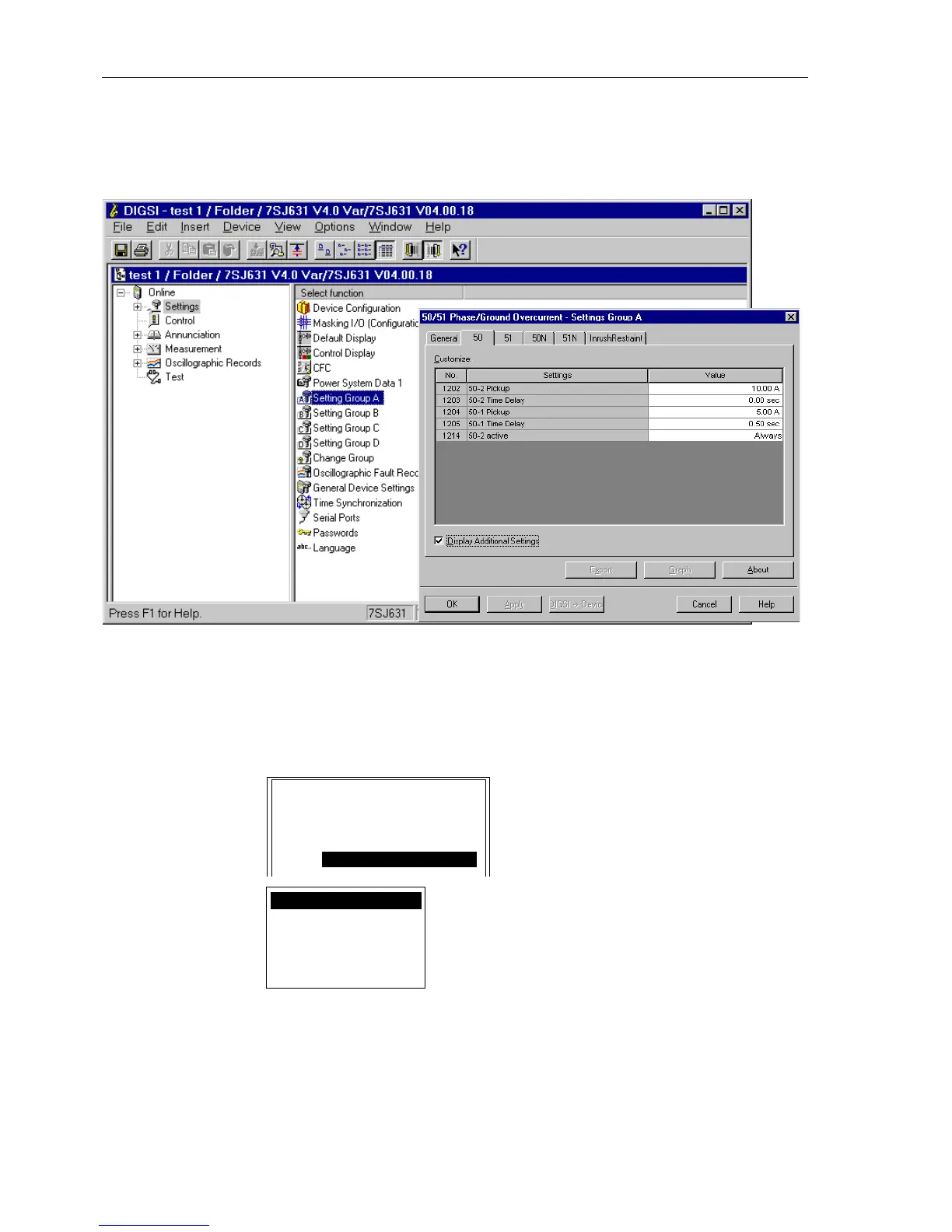

Figure 4-23 DIGSI
®
4, entering settings for a protective function — example
Changing Setting
Groups
The setting groups can be changed during operation using DIGSI
®
4, from the opera-
tor control panel on the device, by triggering binary inputs, or via the system interface.
The active setting group is indicated.
Figure 4-24 SIPROTEC
®
4 device, changing setting groups on the operator control panel
CHANGE GROUP 02/02
---------------------
0301 ACTIVE GROUP
Group A
0302 CHANGE to
Group A
Group A
Group B
Group C
Group D
Binary Input
IEC60870–5–103
