Siemens siprotec 7SA6 User Manual

Hardware and Connections
2-21
7SA6 Manual
C53000-G1176-C156-2
2.1.6 Connections to Analog Outputs
Connections 9-pin D-subminiature female socket connectors are provided for all analog outputs of
the 7SA6. The connector is illustrated in Figure 2-21. The pin assignments are de-
scribed in Subsection 8.2.1.

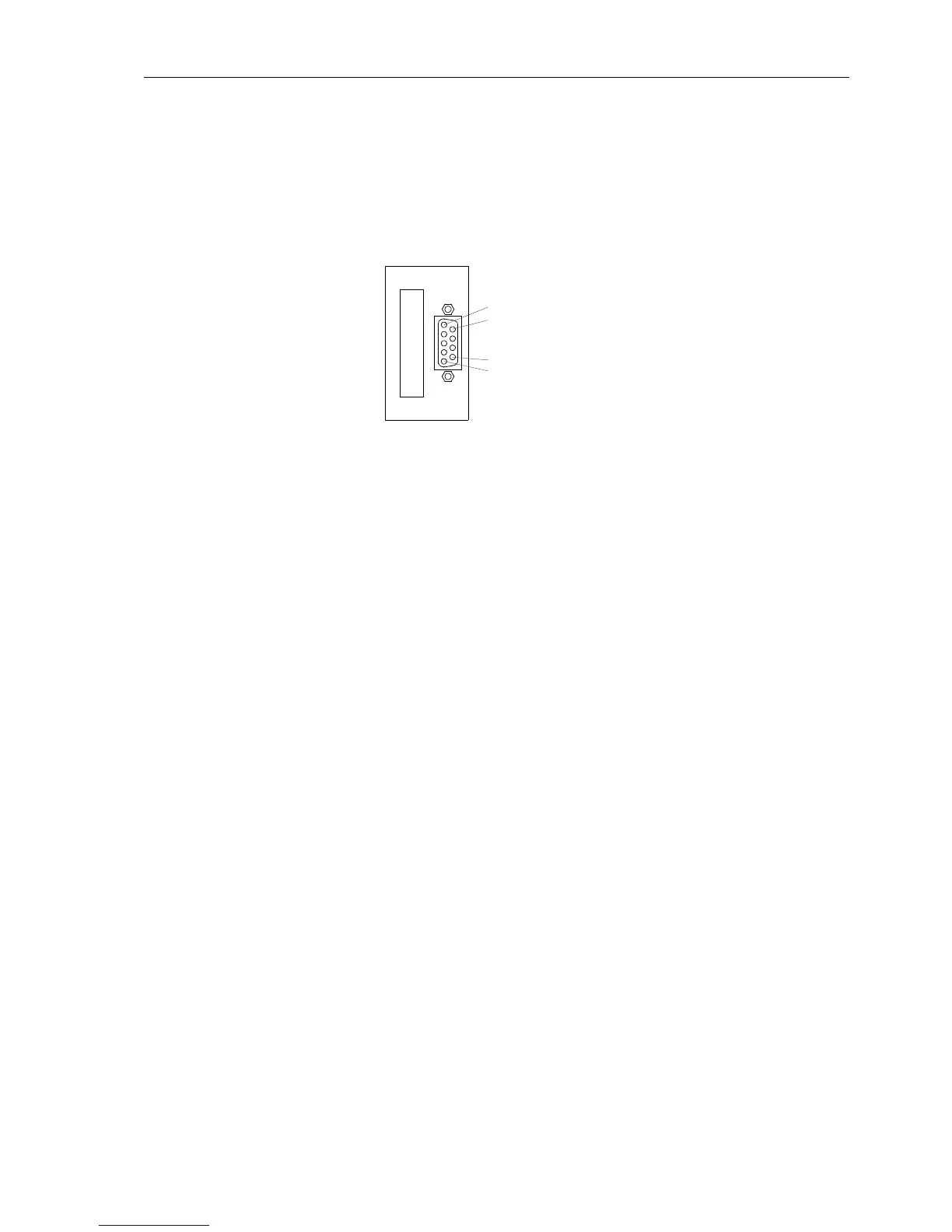

Figure 2-21 9 pin D-subminiature connectors
Connections to
Serial
Communication
Interfaces
Standard 9-pin D-subminiature plug connectors per MIL–C–24308 and DIN 41652
canbeused.
Communication cable: Two-wire / four-wire, shielded
Max. load impedance: 350 Ω
1
6
5
9
AN20
20 mA/ 332R
