Hardware and Connections
2-35
7SA6 Manual
C53000-G1176-C156-2
2.2.5 Connections to Analog Outputs
Connections 9-pin D-subminiature female socket connectors are provided for all analog outputs of
the 7SA6. The connector is illustrated in Figure 2-32. The pin assignments are de-
scribed in Subsection 8.2.1.

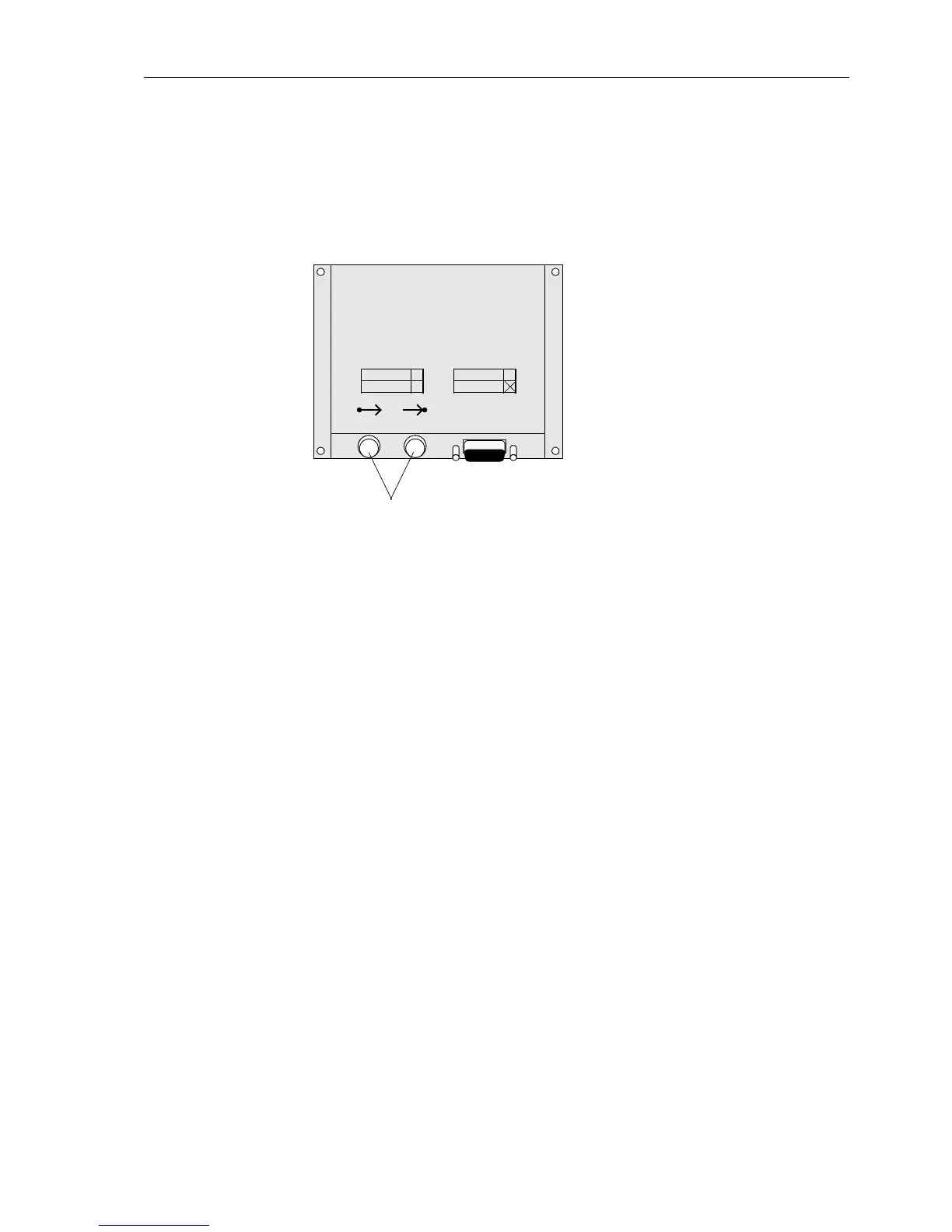

Figure 2-32 Inclined housing with 9 pin D-subminiature connectors
Connections to
Serial
Communication
Interfaces
Standard 9 pin D-subminiature plug connectors per MIL–C–24308 and DIN 41652 can
be used.
Communication cable: Two-wire / four-wire, shielded
Max. load impedance: 350 Ω
Channel B
Channel D
Channel C
Channel E
Plastic Plugs
