TOHATSU MFS 9.9 User Manual

5-4
Power Unit
4st 9.9/15/20 2008
OIL-COMP.
GM
SOCSOC
80 N·m (58 lb·ft) [8.0 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
TB
1342
1342
TB
1342
1342
G17
SOC
G17G17
BOND
8 N·m (6 lb·ft) [0.8 kgf·m]
TB
1342
1342
6 N·m (4 lb·ft) [0.6 kgf·m]
2
1
5
6
4
27
26
9
11
11
13
12
28
28
10
37
38
36
31
29
30
32
34
33
17
19
18
35
17-1
19
15
16
14
24
22
25
20
21
23
22
26-1
26-1
8
7
3
1 Flywheel Cup (with Ring Gear) 1
2 Nut, 16-P1.5 1
3 Washer, 16-27-3.2 1
4 Alternator 1
5 Screw 3 M6 L=30mm
6 Washer 3 M6
7 Clamp, 6.5-14L 1
8 Screw 1 M6 L=16mm
9 Coil Bracket 1
10 Bolt, 6-25 Pre-coated 3 M6 L=25mm
11 Dowel Pin, 6-12 2
12 Pulser Coil 1
13 Bolt 2 M5 L=14mm
14 C.D. Unit 1
15 Bolt, 6-16 Pre-coated 2 M6 L=16mm
16 Washer, 6-16-1.5 2
17 C.D. Unit Cord Ass'y 1
17-1 Grommet 1
18 Clamp, 6.5-14L 1
19 Bolt 2
20 C.D. Unit Bracket 1
21 Rubber Mount 4
22 Washer, 6-16-1.5 8
23 Collar, 6.2-9-8.7 4
Ref.
No.
Description Remarks
Q'ty
24 Bolt 4
25 Lead Wire Band, 135 1
26 Ignition Coil 1
26-1 Plug Cap (with Resistance) 2
27 Bolt 2
28 Cable Terminal Plug AR 7 for MF, 4 for EF 2 for EP
29 Cable Terminal Holder 1 with Collar
30 Collar, 6-8-6 1
31 Bolt 1 Upper M6 L=16mm
32 Bolt 1 Lower M6 L=12mm
33 Terminal Holder Cover 1
34 Wiring Diagram Decal 1 for MF, EF
Wiring Diagram Decal 1 for EP
35 Oil Pressure Switch 1
36 Warning Lamp 1
37 Clamp, 6.5-67P 1
38 Bolt 1 M6 L=12mm
Ref.
No.
Description Remarks
Q'ty

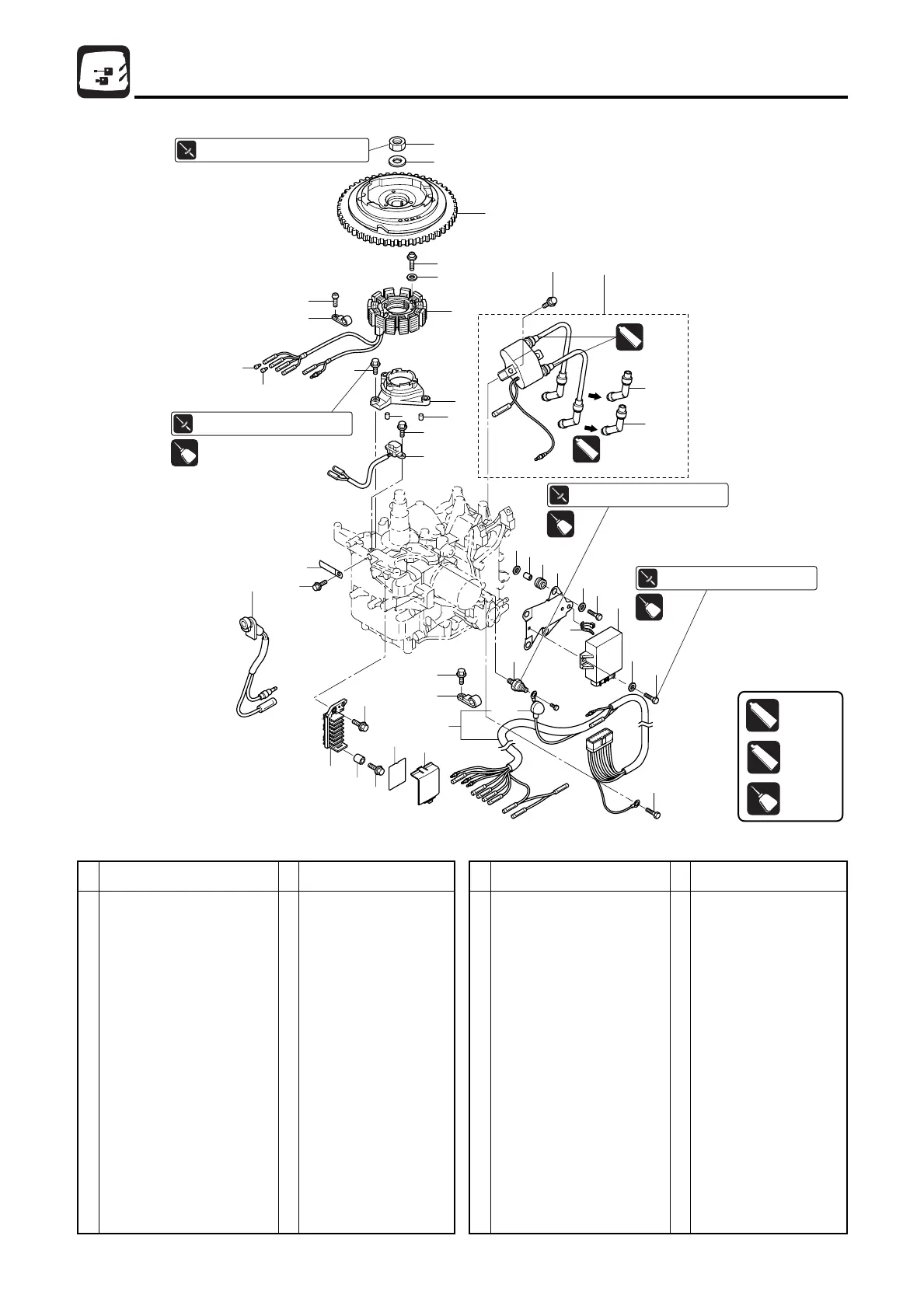

Magneto P/L Fig. 8
TB
13421342
1342
OIL-COMP.
GM
SOCSOC
SOC
G17G17
BOND
G17
E_MFS20C_ch05_090105.qxd 09.1.20 5:25 PM ページ 4
