TOHATSU MFS 9.9 User Manual

Bracket
7-20
4st 9.9/15/20 2008
1
2
7
8
4
7
6
5
3
6

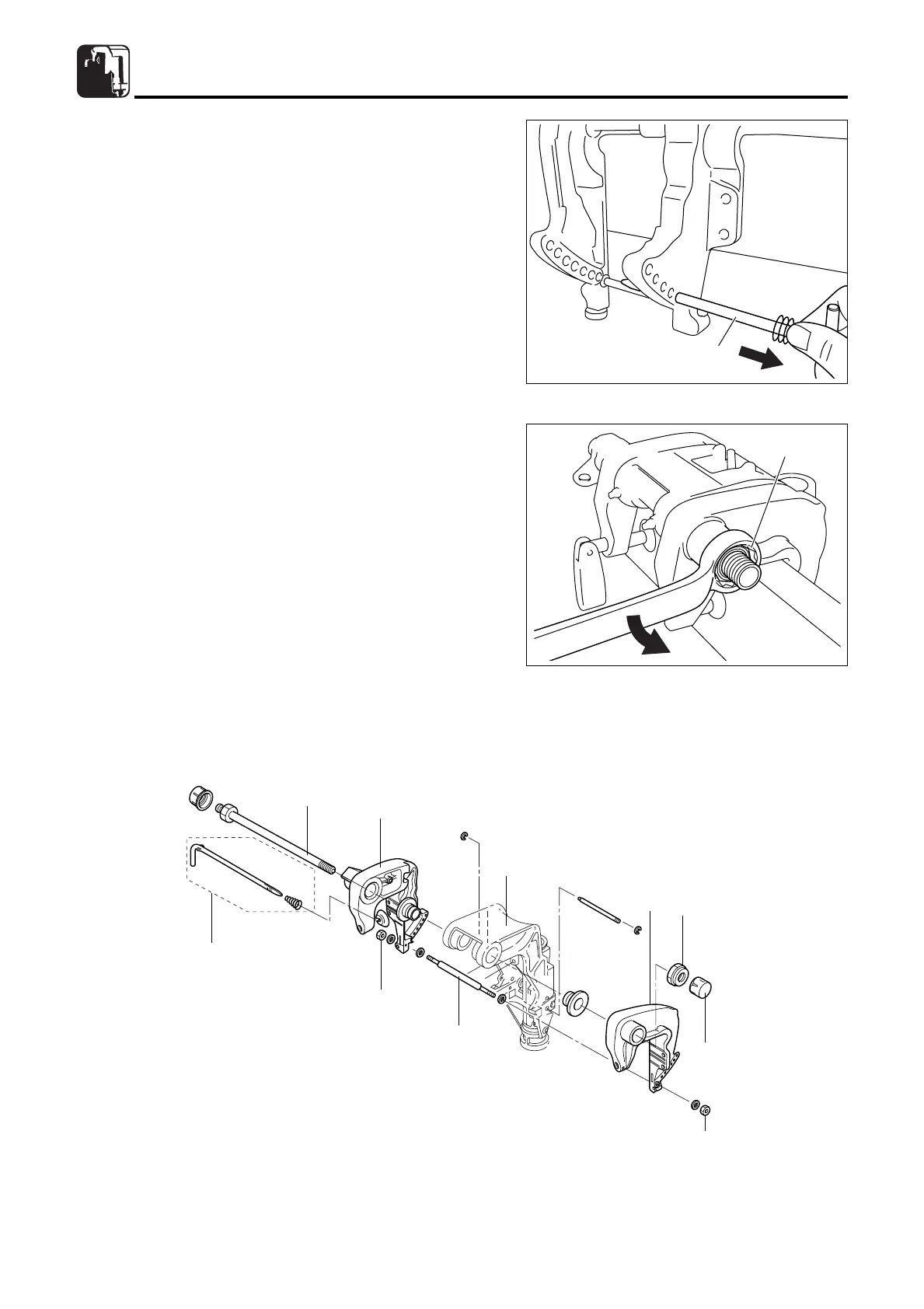

10) Disassembling Clamp Bracket
(Manual Tilt Model)
1. Remove thrust rod 1 from clamp bracket.
4
1
2. Remove nut cap 3 of swivel bracket shaft 2, and then,
loosen nut 4. Loose nut 6 of distance piece 5, and then,
remove nut. Pull out swivel bracket shaft, and then, remove
clamp bracket 7 from swivel bracket 8.
3. Check swivel bracket shaft and other parts for abnormality,
and replace if necessary.
