1-5
1
4st 9.9/15/20 2008
2) Measuring Instruments
For the following measuring instruments, use commercially available ones.
Circuit tester (
Resistance : 1Ω, 10Ω, 10 kΩ, AC voltage : 30 to 300V, DC voltage : 30V, Internal voltage 3V or less
)
Vernier calipers ( M1 type, 300 mm )
Micrometer ( minimum graduation of 0.01, outer, 0 to 25 mm, 25 to 50 mm, 50 to 75 mm )
Cylinder gauge ( 4 to 6 mm, 10 to 25 mm, 25 to 30 mm, 50 to 75 mm )
Ring gauge ( ø5.5, ø16, ø25, ø30, ø61)
Dial gauge ( minimum graduation of 0.01 )
Thickness gauge ( 0.03 to 0.3 mm )
V block
Surface plate ( 500 mm x 500 mm )
Dial gauge magnet base or dial gauge stand
3. Tools and Instruments

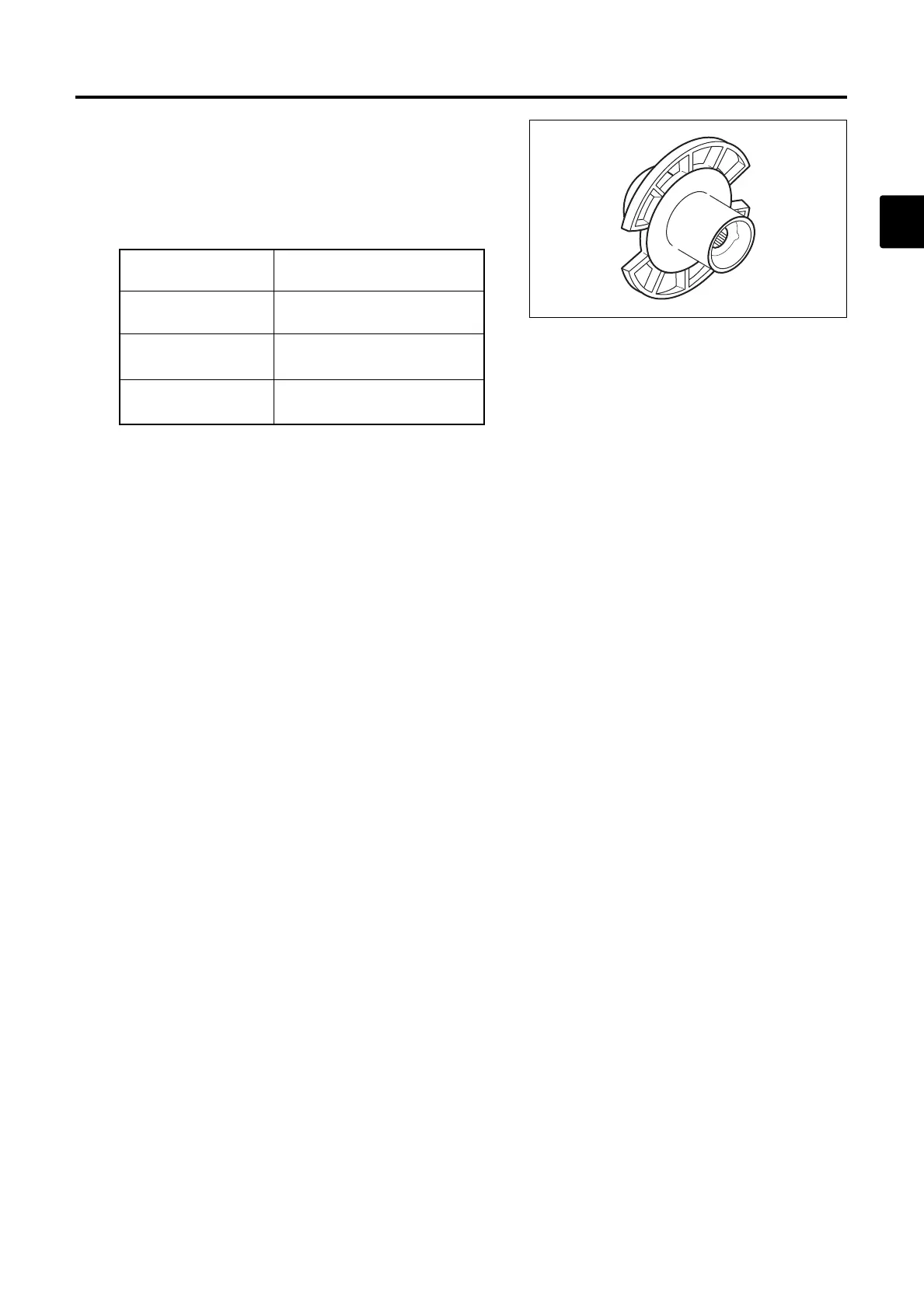

1) Test Propeller
P/N. 3R0-64111-0
Outer diameter : 180mm
With : 16mm
Model
Rotational speed at WOT
(Wide Open Throttle) (r/min)
F 9.9 C approximately 4,500
F 15C approximately 5,400
F 20C approximately 5,700
E_MFS20C_ch01_090105.qxd 09.1.20 5:09 PM ページ 5
