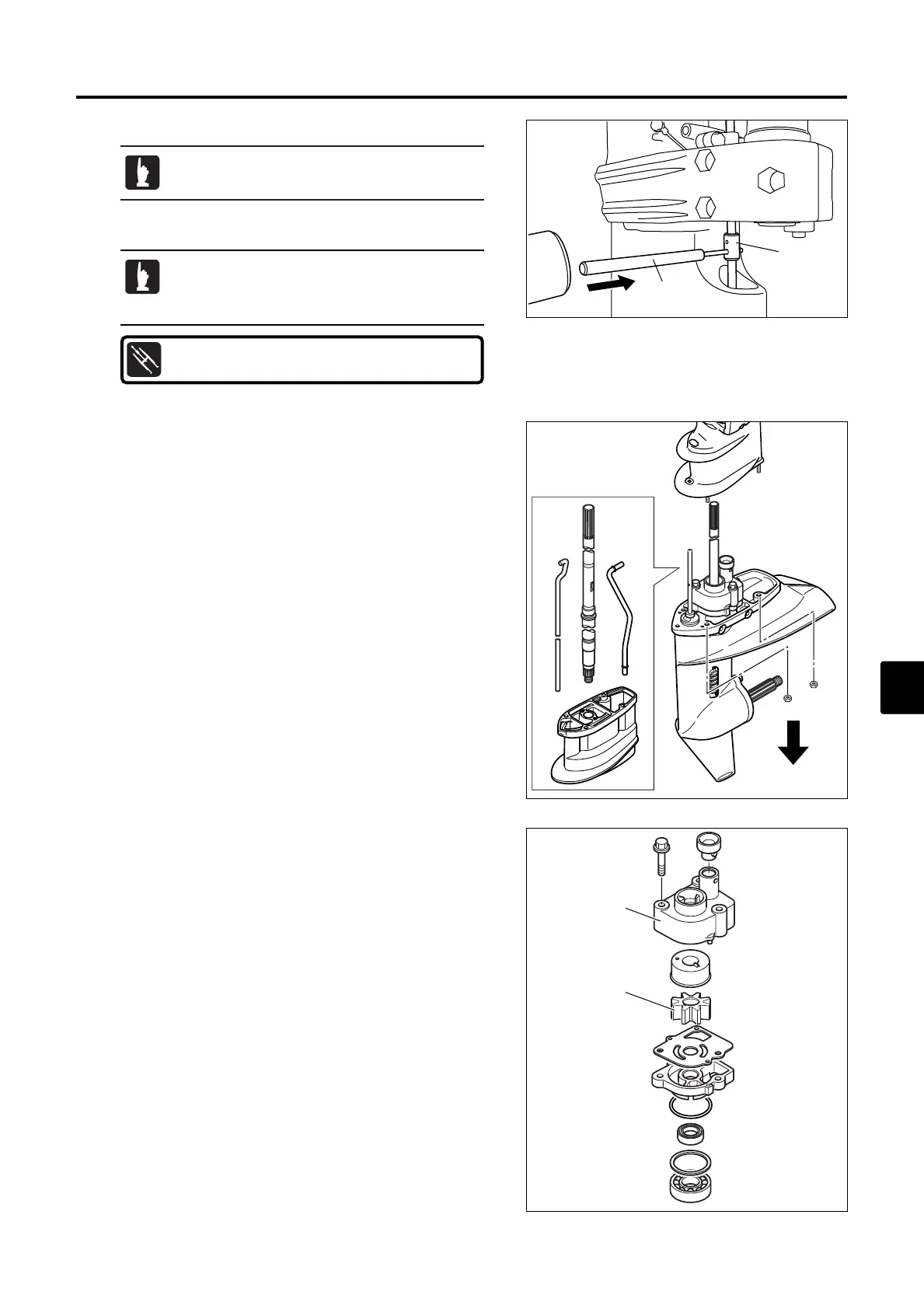

4st 9.9/15/20 2008
4) Disassembly of Water Pump
1. Remove pump case (Upper) 1.
2. Remove impeller 2.
1
2
3) Removing Lower Unit
2
1
2. Remove lower unit installation bolts, and pull lower unit ass'y
downward to remove.
·
Disconnect shift rod at lower side of shift rod joint 1.
· Use spring pin tool A2 to remove spring pin.
· Do not reuse removed spring pin.
Spring pin tool A2 :
P/N. 345-72227-0
a Projection b Hole
1. Remove spring pin and disconnect shift rod.
Removal of lower unit does not require removal
of power unit from outboard motor body.
