8
8-17
4st 9.9/15/20 2008

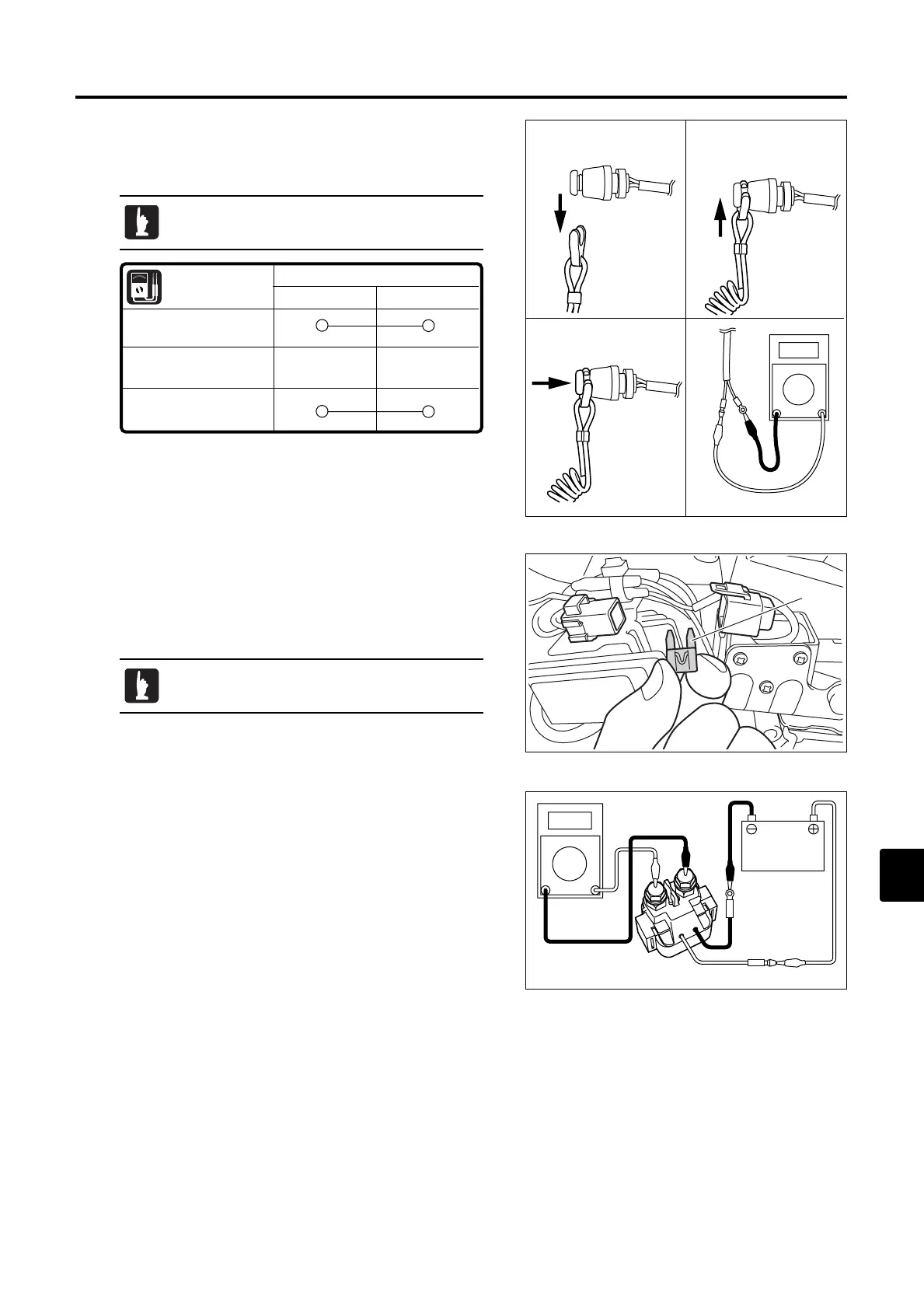

5. Starting System
1) Inspection of Fuse
1. Check electrical conductivity of fuse a. Replace if no
conductivity.
Flat or small sized plate fuse (20A) is adopted.
2) Inspection of Starter Solenoid
1. Connect tester lead wires to both terminals of starter
solenoid.
2. Connector green (G) lead wire to battery positive terminal.
3. Connector black (B) lead wire to battery negative terminal.
4. Check electrical conductivity between terminals of starter
solenoid. Replace if no conductivity.
5. Remove battery terminal from green (G) or black (B) lead
wire, and check there is no conductivity between starter
solenoid terminals. Replace if conductive.
9) Inspection of Stop Switch
1. Check conduction of stop switch, and replace if not
conductive.
Switch Position
Lead Wire Color
Brown (Br) Black (B)
This test can be made without removing parts.
Remove lock a
Attach lock b
Press switch c
E_MFS20C_ch08_081203.qxd 09.1.20 5:33 PM ページ 17
