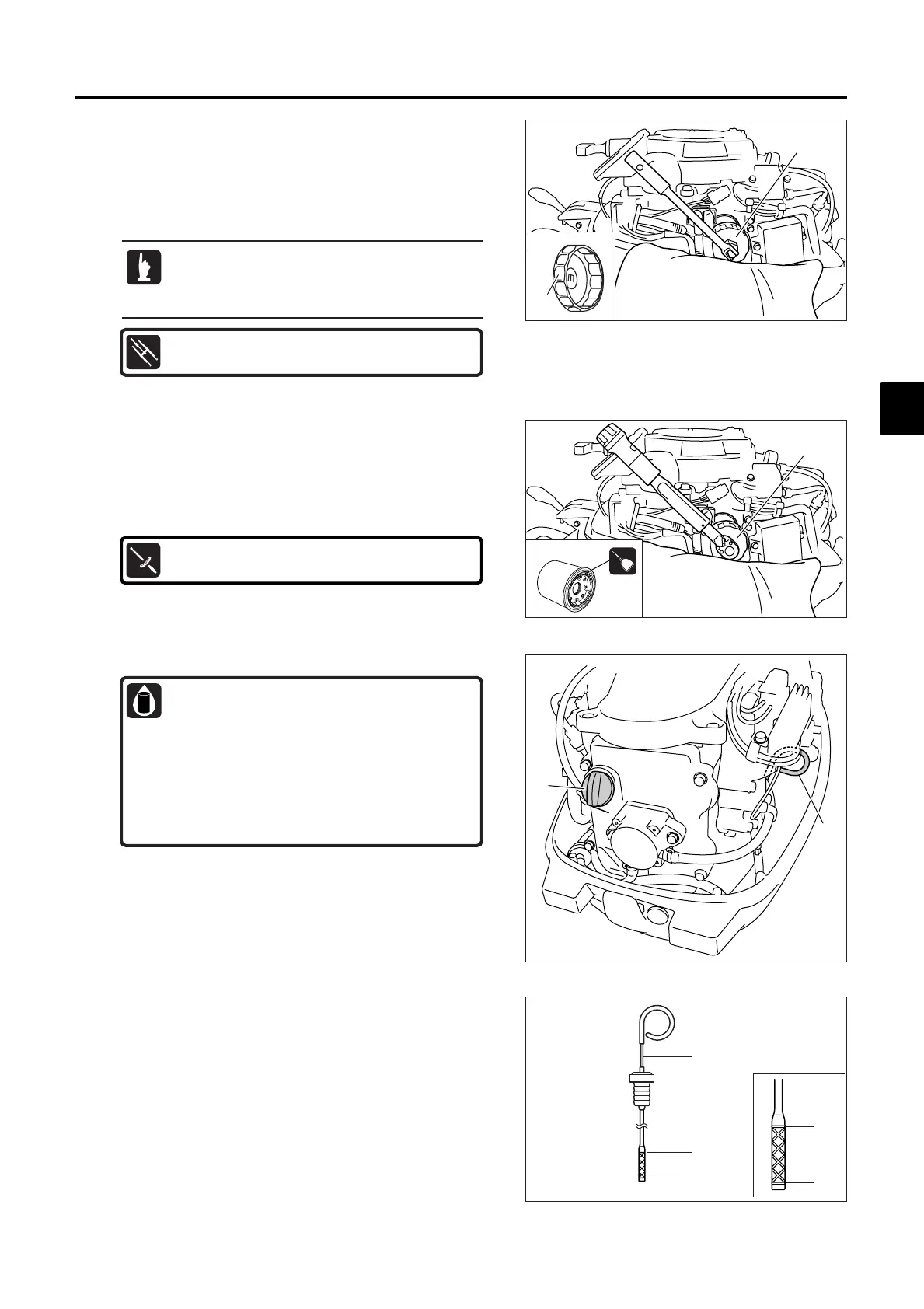

6) Replacement of Oil Filter
1. Drain engine oil.
2. Place a piece of rag below oil filter area, and remove oil filter
by using oil filter wrench 1.
3. Apply thin coat of engine oil to O ring of filter before installing
filter.
4. Install oil filter and tighten it to specified torque by using oil
filter wrench 1.
5. Pour engine oil into oil inlet 2.
Oil Filter :
18N · m (13 lb-ft) [1.8kgf · m]
Oil Filter Wrench 1 :
P/N. 3AC-99090-0
6. Attach oil filler cap 2 and oil level gauge 3, start and run
engine for 5 minutes to warm up.
4st OIL
4st
OIL
1
· Leakage Replace oil filter 5 minutes or more
after stopping engine.
· Wipe off spilled oil completely.
7. Stop engine and check oil level and oil leak after 5 minutes.
Do not overfill
4 Oil level gauge 5 upper limit (max) 6 lower limit (min)
Engine Oil :
4 Stroke Engine Oil
API : SE, SF, SG, SH, SJ, SL, SM
SAE : 10W-30, 10W-40
NMMA : FC-W Certified 10W-30/40
Quantity of Engine Oil :
(including oil filter) : 1.2L (1.3qt)
(not including oil filter) : 1.0L (1.1qt)
