8
8-15
4st 9.9/15/20 2008

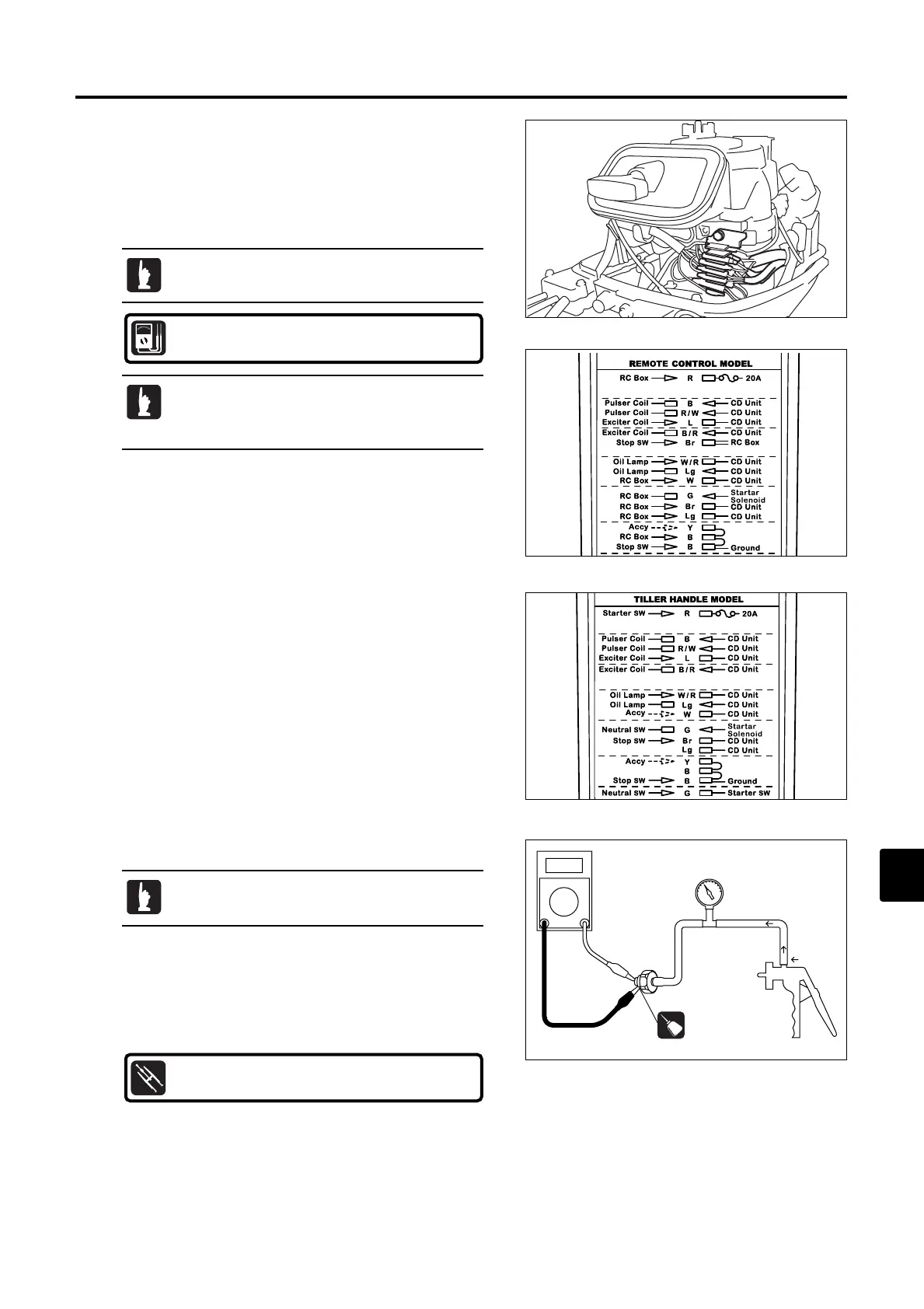

1. Remove cable terminal holder cover.
2. Disconnect cable coupler from exciter coil, and measure
resistance.
Exciter Coil Resistance (Reference value) :
Between Black/Red (B/R) - Blue (L) : 12.5 - 18.8 kΩ
5) Inspection of Exciter Coil
This test can be made without removing parts.
Check the connection by referring to coupler
connection chart located on the back of cable
terminal holder cover.
1. Check electrical conductivity of oil pressure switch. Replace
if no conductivity.
2. Connect vacuum/pressure gauge to oil pressure switch.
6) Inspection of Oil Pressure Switch
Remove the part and test it as a separate unit.
Remote control model (EP)
Tiller handle model
Vacuum/Pressure Gauge :
P/N. 3AC-99020-0
E_MFS20C_ch08_081203.qxd 09.1.20 5:33 PM ページ 15
