Electrical System
4st 9.9/15/20 2008
4. Start engine and check sparks. Check spark system if
sparks are weak.
Spark Tester 2 :
P/N. 3F3-72540-0
3
· When testing, put electrode cap assuredly
to prevent direct contact with spark
tester wiring and leak of electrical
current, and perform test carefully.
· Keep inflammable gas, fuel, oil and fat
away from tester to prevent them from
catching sparks.
Spark Performance :
10 mm (0.4 in) or over
This test can be made without removing parts.

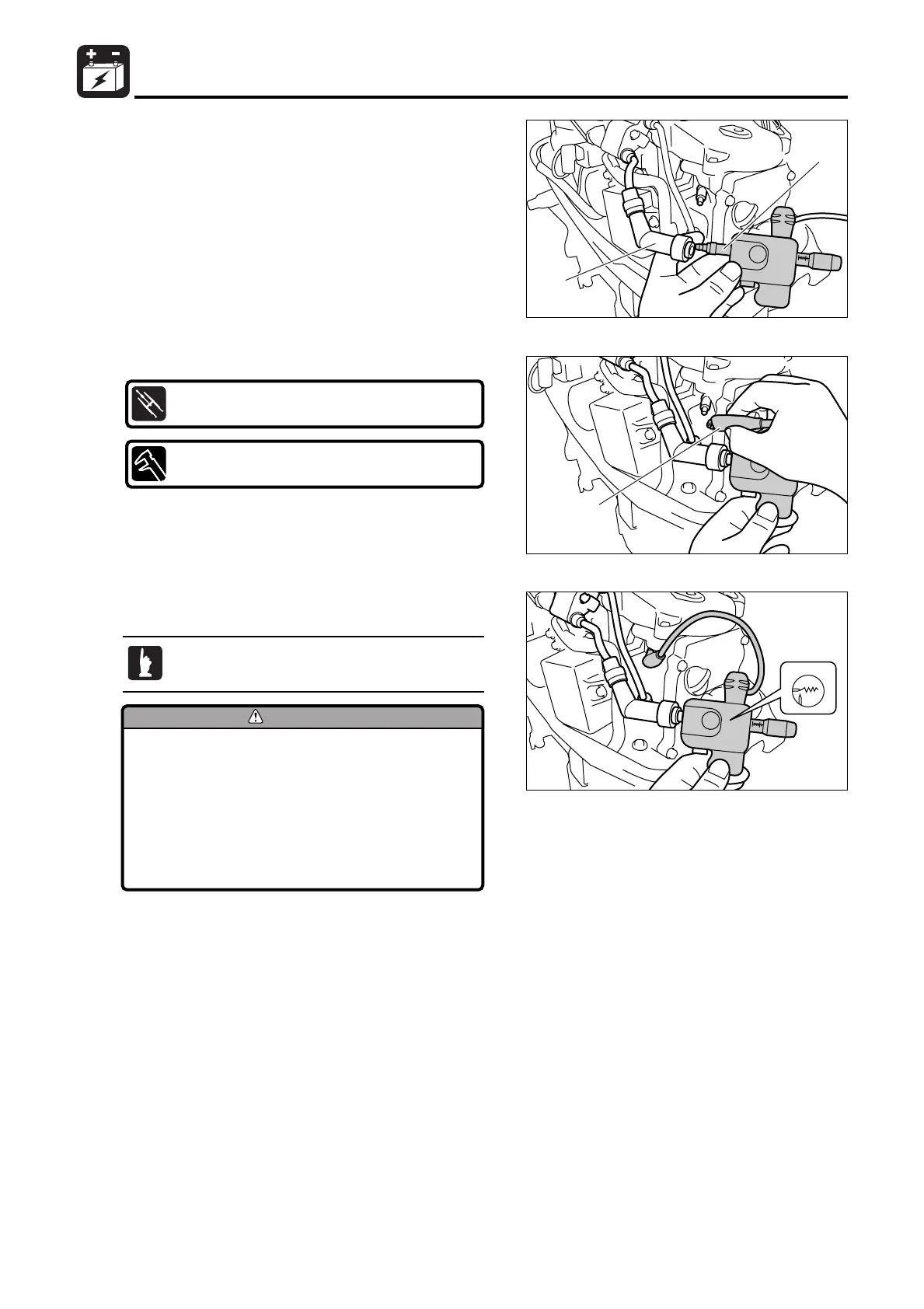

4. Ignition System and Ignition
Control System
1) Inspection of Ignition Sparks
1. Disconnect plug caps from spark plugs.
2. Connect plug cap 1 to spark tester 2.
3. Connect spark tester clip 3 to spark plug tip electrode.
