4st 9.9/15/20 2008

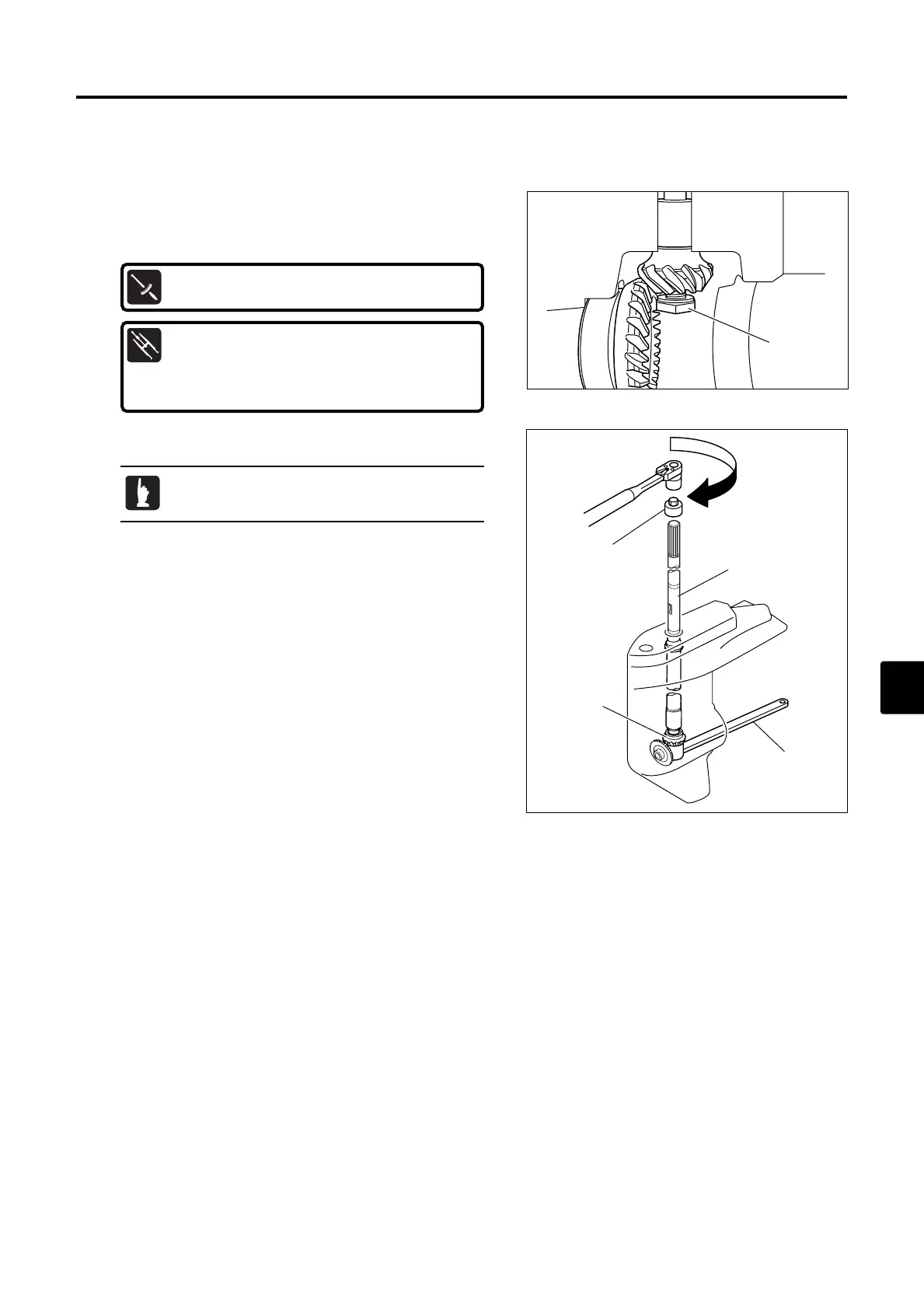

31) Installation of Pinion (B) Gear
1. Clean gear case interior.
2. After installing forward (A) gear into bear case, install drive
shaft ass'y 1, pinion (B) gear 2 and pinion (B) gear nut 3,
and tighten the nut to specified torque.
3. Stand gear case vertically. (Make drive shaft vertical.)
Pinion (B) Gear Nut :
35 N · m (25 lb · ft) [3.5 kgf · m]
1
4
5
2
Bevel Gear B Nut Socket 4 :
P/N. 346-72232-0
Bevel Gear B Nut wrench 5 :
P/N. 346-72231-0
3
Take case of direction of pinion (B) gear nut
seating surface.
