7-11
4st 9.9/15/20 2008
7

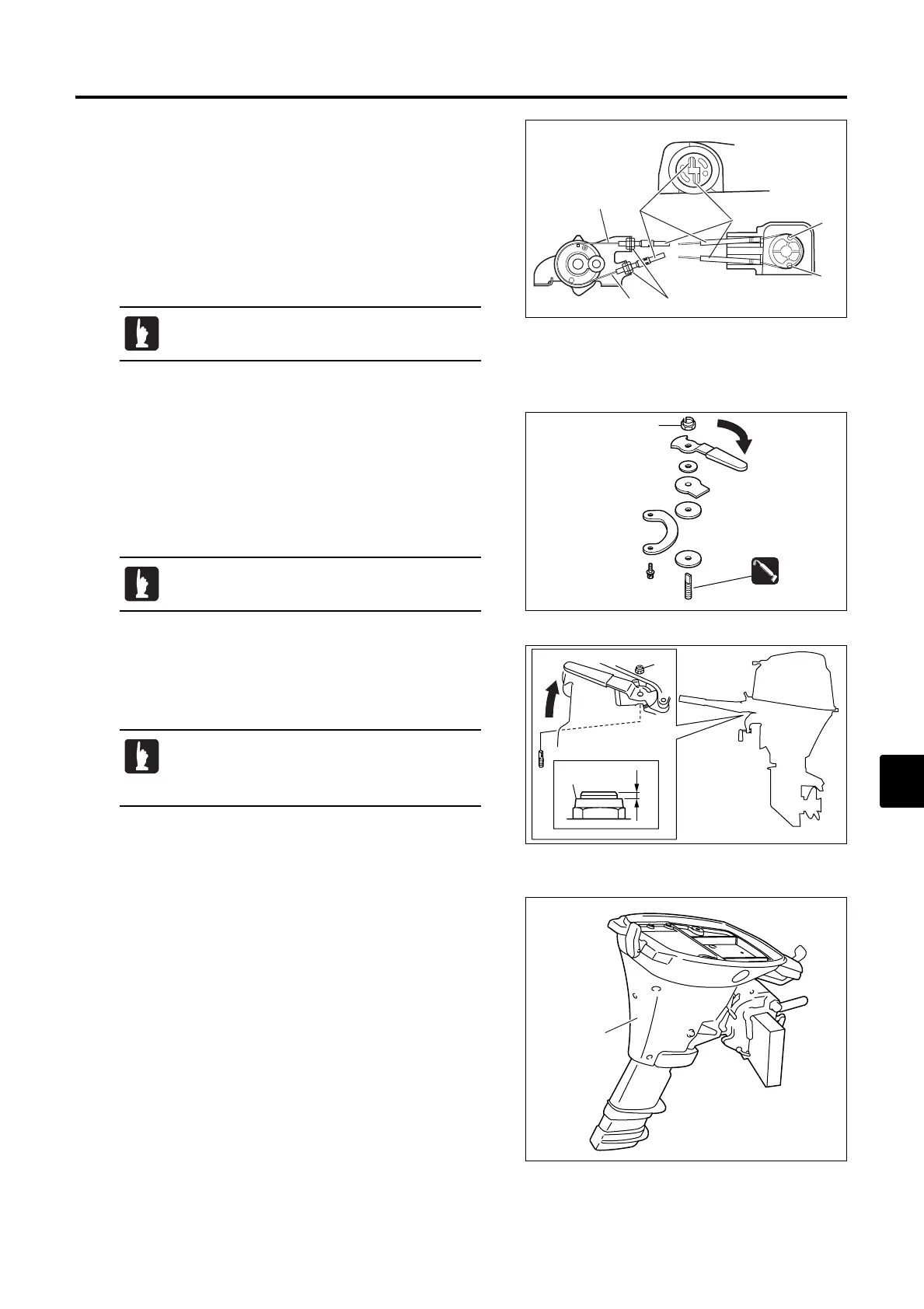

3) Adjustment of Co-pilot Plate
1. Install co-pilot plate.
2. Move co-pilot handle to left to slide it to tightening position.
3. Tighten nylon nut 1 until steering load becomes heavy.
4. Move co-pilot handle to the right to slide it to release
position, and check that steering can be made lightly. If not,
repeat steps 2. to 4. to finely adjust.
To prevent nylon nut from falling, tighten nut until
more than one thread of bolt a can be seen
above the nut.
Tighten nylon nut 1 to approximately 6 N · m (4
lb · ft) [0.6 kgf · m] and check steering load.
5. Install cable b of which inner wire is stretched when
acceleration grip is set to full close position.
6. Then, install another cable a (of which inner wire is
stretched when acceleration grip is set to full open position.
7. Adjust position of lock nuts 6 of throttle cable so that throttle
grip can reach full open and full close positions.
Adjust cable tension so that it moves approximately
1mm when pushed lightly with a finger.
4) Removing Drive Shaft Housing
1. Remove drive shaft housing cover a, and drain engine oil
completely by referring to “Chapter 3, 5) Replacement of
engine oil".
E_MFS20C_ch07_081216.qxd 09.1.20 5:40 PM ページ 11
