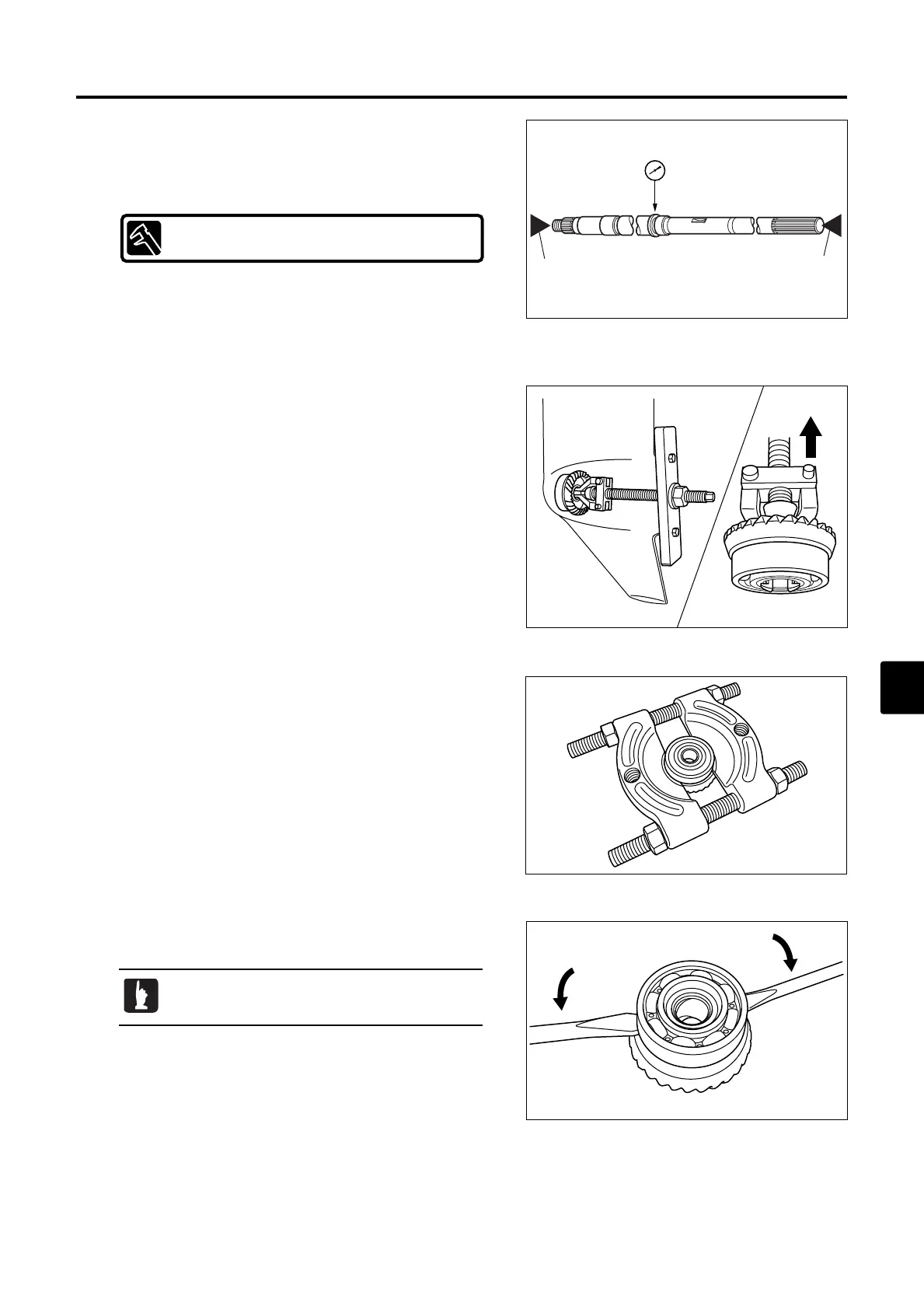

23) Removing Forward (A) Gear
1. Use commercially available bearing puller 1 to remove
forward (A) gear from gear case.
· Before removing, check bearing for play or
deflection. Replace if necessary.
22) Inspection of Drive Shaft
1. Check drive shaft for bend and wear. Replace if necessary.
2. Measure drive shaft runout.
Runout Limit : 0.5 mm（0.020 in）
a Support point
2. Use universal puller plate to make gap between ball bearing
and forward gear.
3. Put two bladed screw drivers in the gap and pry out forward
(A) gear from bearing.
