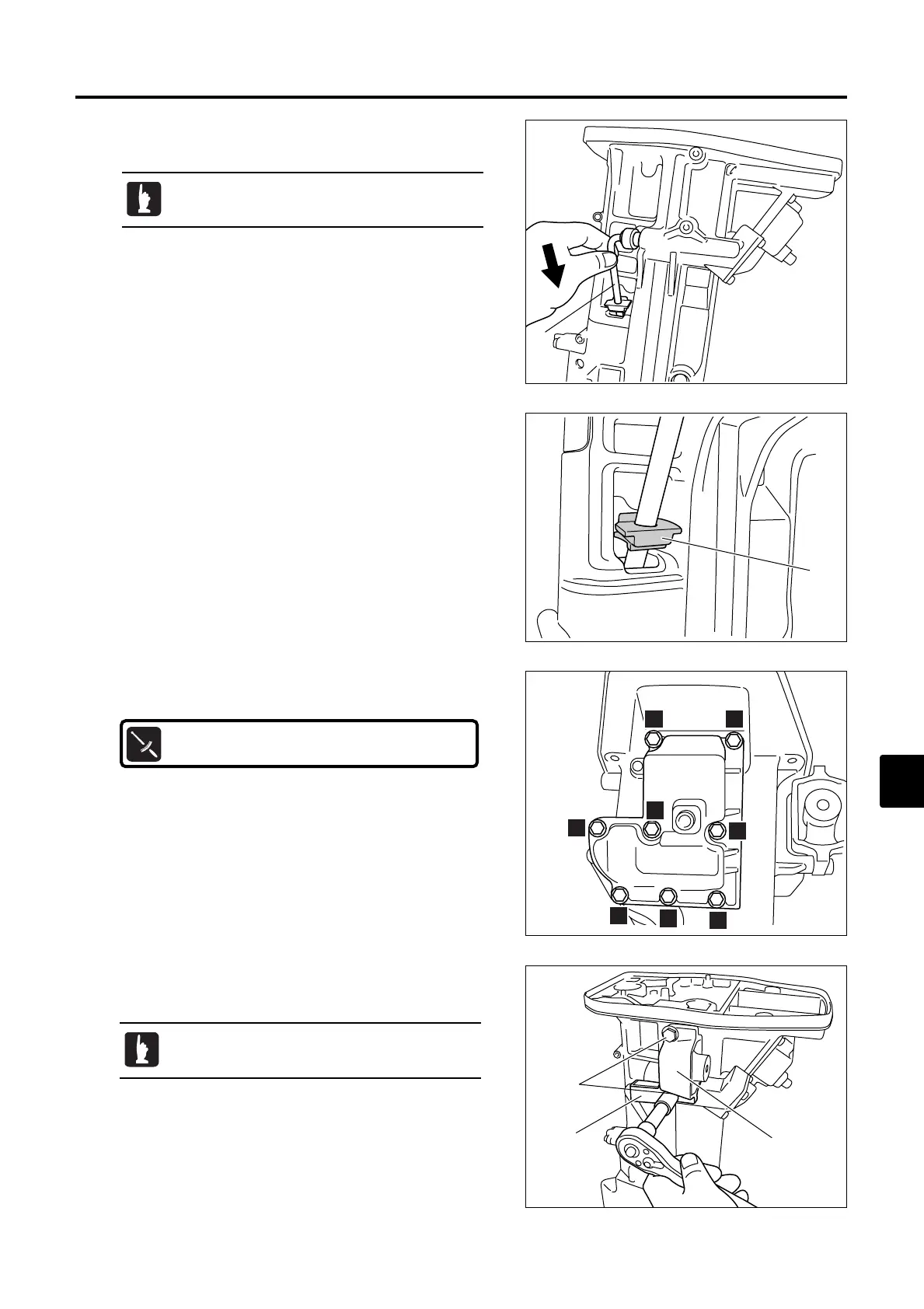

2. Attach exhaust cover securing bolts and tighten them in the
order of their numbers shown to specified torque.
Idle Exhaust Installation Bolt :
6.0 N · m (4.3 lb · ft) [0.6 kgf · m]
6) Assembly of Drive Shaft Housing
1. Install water pipe 1 into drive shaft housing.
1
2
Insert pipe into drive shaft housing taking care of
orientation of water pipe auxiliary mount 2.
3. Install upper mount 3 on the drive shaft housing and tighten
bolt 4 to specified torque.
Install water pipe lock plate 5 to pipe securely.
1
6
5
4
3
2
7 8
4
5
3
