TOHATSU MFS 9.9 User Manual

Bracket
7-16
4st 9.9/15/20 2008
1
2
3
4
5

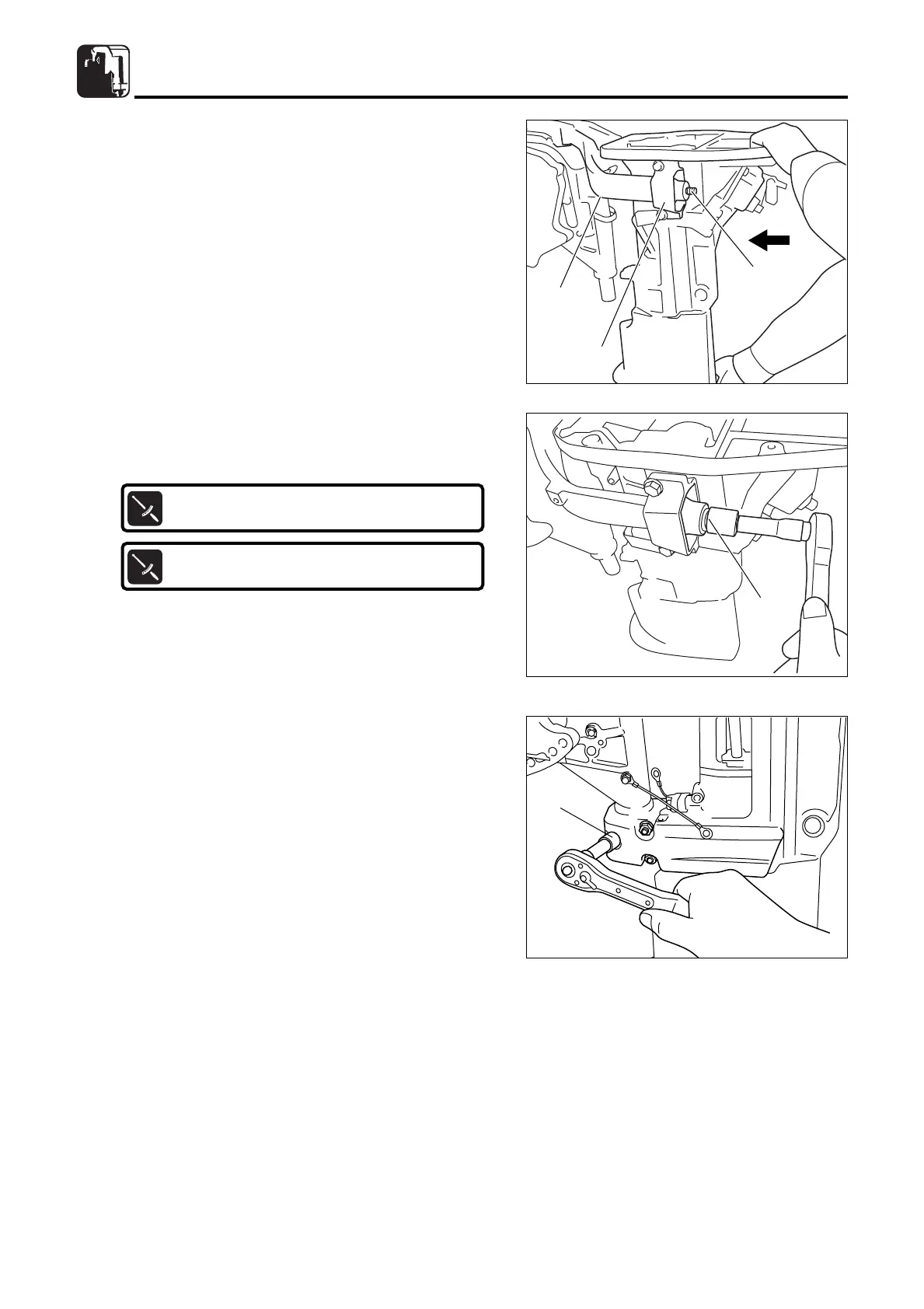

7) Installation of Drive Shaft Housing Ass'y
1. Insert drive shaft housing ass’y into stud bolt 3 of upper
rubber mount 2 of swivel bracket 1.
2. Install rubber mount and lower dumper and mount bracket to
drive shaft housing. Tighten bolts and nuts to specified
torque.
Upper Rubber Mount Nut 4 :
M8 13 · m (9 lb · ft) [1.3 kgf · m]
Lower Rubber Mount Bolt 5 :
M8 13 · m (9 lb · ft) [1.3 kgf · m]
