TOHATSU MFS 9.9 User Manual

3-12
Maintenance
4st 9.9/15/20 2008

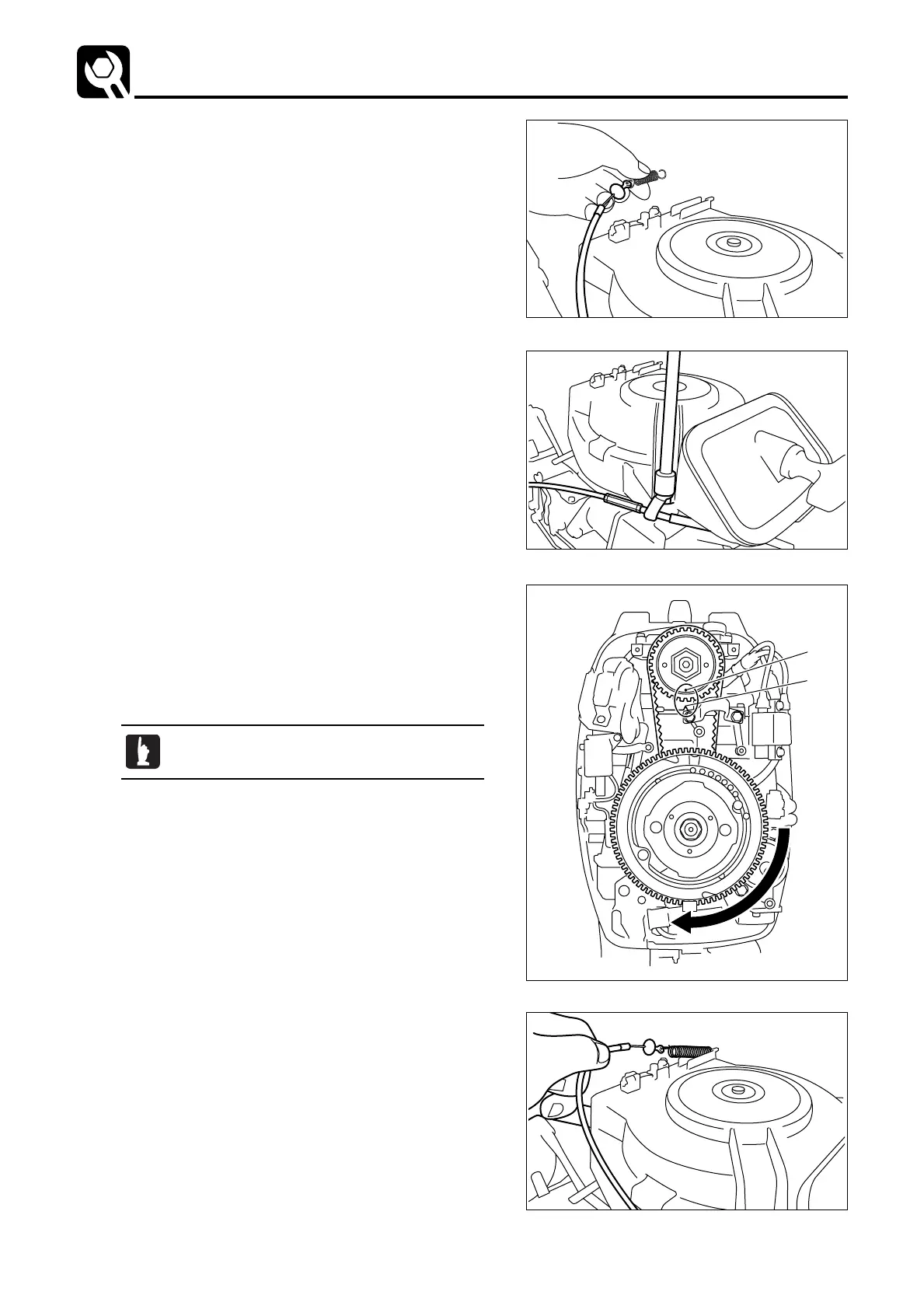

11) Inspection of Timing Belt
1. Disconnect starter lock cable, and then remove recoil starter
and belt cover.
4. Reinstall recoil starter and belt cover.
#1 piston is to be at top dead center of compression
stroke.
b
a
11
2
5. Reconnect upper starter lock cable.
2. Check timing belt inner and outer surfaces for cracks,
damages and wear while rotating flywheel clockwise with
hands. Replace if necessary.
3. Rotate flywheel clockwise to bring "
●1" mark a of cam shaft
pulley to "▲" mark b of cylinder head.
