5-54
Power Unit
4st 9.9/15/20 2008

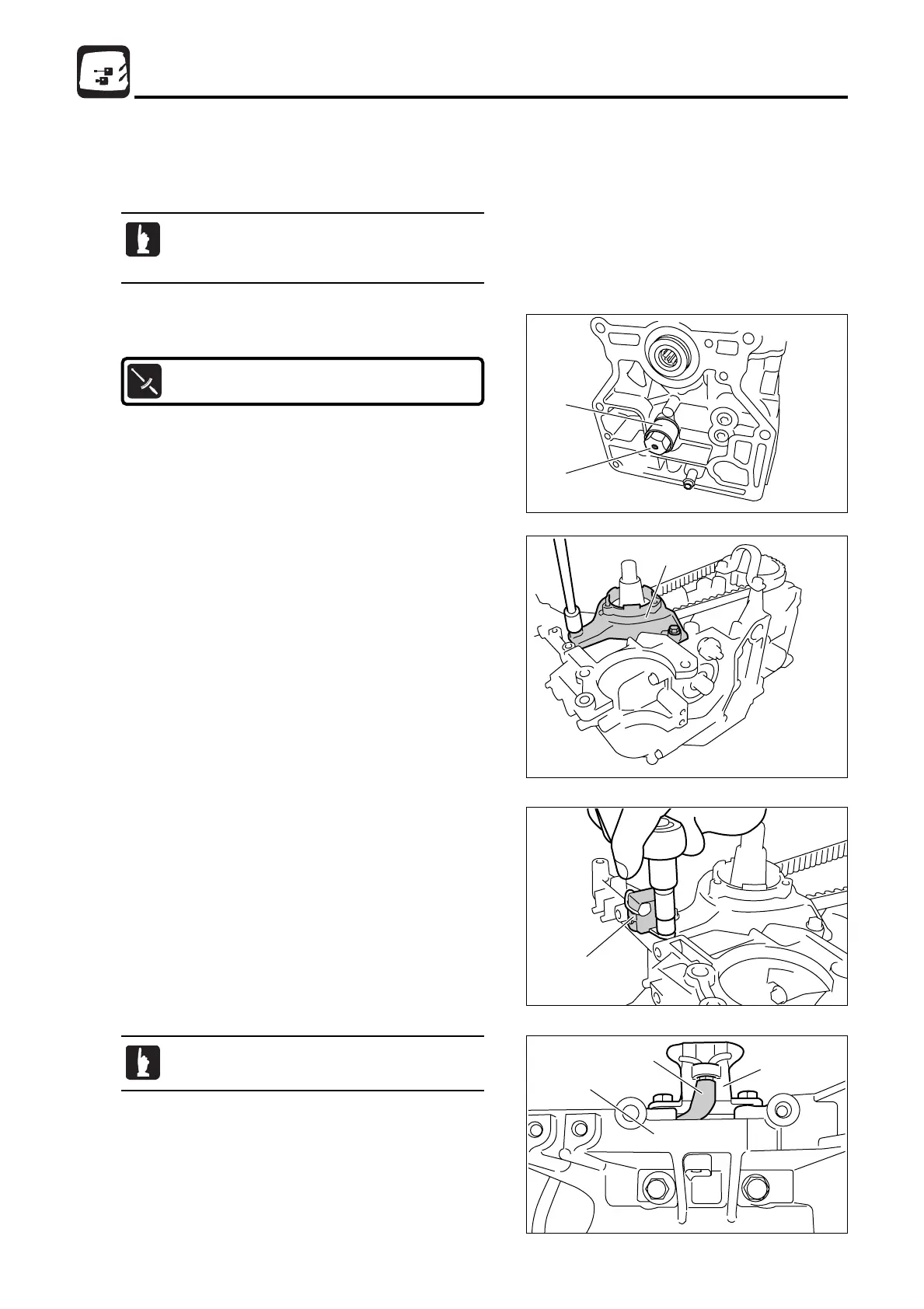

2. Attach plunger cover 1 and plunger 2 before performing
the next step.
41) Installation of Timing Belt
For the procedure, refer to :
Chapters 1 and 3 12) Replacement of Timing Belt
13) Attaching timing belt
Plunger 2 :
30 N · m (22 lb · ft) [3.0 kgf · m]
Run wire 5 from pulser coil through gap
between coil 6 and bracket 7.
3. Install coil bracket 3.
4. Install pulser coil 4 on coil bracket.
6
7
5
1. Attach timing belt to crankshaft pulley and cam shaft
pulley.
E_MFS20C_ch05_090105.qxd 09.1.20 5:25 PM ページ 54
