TOHATSU MFS 9.9 User Manual

4
4-5
4st 9.9/15/20 2008
4st
OIL
4st OIL
25
9 N·m (7 lb·ft) [0.9 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
4st OIL
4st
OIL
3
3
4
6
6
2
1
7
8
7
5
24
23
23
11
14
18
21
15
16
19
21
17
21
20
21
13
10
9
12
22
4

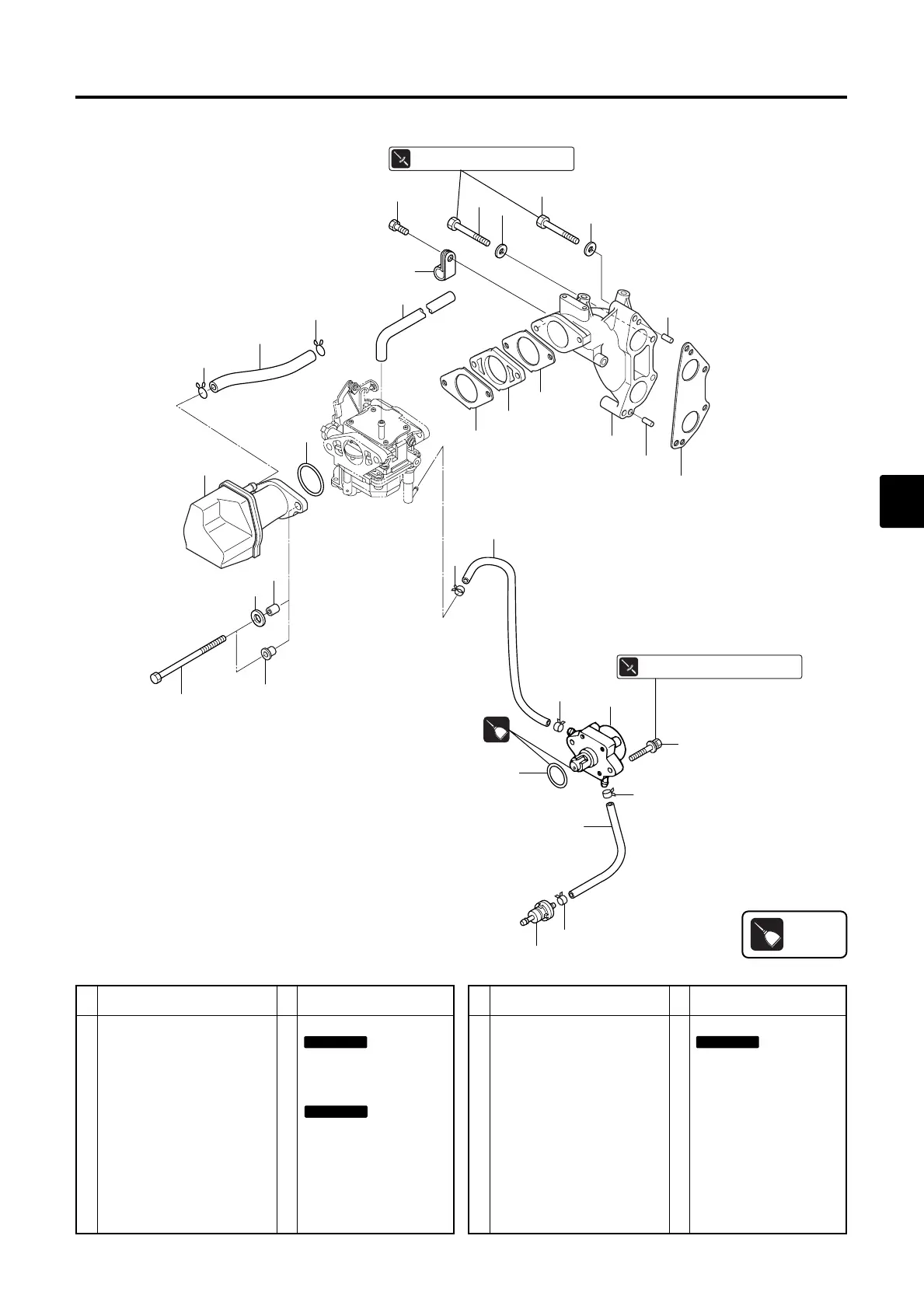

Intake Manifold & Fuel Pump
P/L Fig. 4
1 Intake Manifold 1
2 Intake Manifold Gasket 1
3 Bolt 5 M6 L=45mm
4 Washer 5 M6
5 Clamp, 6.5-14L 1
6 Dowel Pin, 6-12 2
7 Carburetor Gasket 2
8 Insulator 1 for 15/20
Insulator - for 9.9
9 Bolt, 6-100 2 M6 L=100mm
10 Washer 2 for EP
11 Intake Silencer 1
12 Collar, 6.1-14-8.9 2 for MF & EF
13 Collar, 6.2-9-7.4 2 for EP
14 Seal Ring, 2.4-35 1
Ref.
No.
Description Remarks
Q'ty
15 Fuel Pump 1
16 O-Ring, 3.5-25.7 1
17 Bolt 2 M6 L=25mm
18 Rubber Hose 1 L=300mm
19 Rubber Hose 1 L=120mm
20 Fuel Filter 1
21 Clip ø9.5 4
22 Rubber Hose 1 L=120mm, for Breather
23 Clip, ø12 2
24 Breather Hose 1 for Carburetor
25 Bolt 1 M6 L=12mm
Ref.
No.
Description Remarks
Q'ty
Do not reuse.
Do not reuse.
Do not reuse.
E_MFS20C_ch04_090105.qxd 09.1.20 5:24 PM ページ 5
