8-14
Electrical System
4st 9.9/15/20 2008

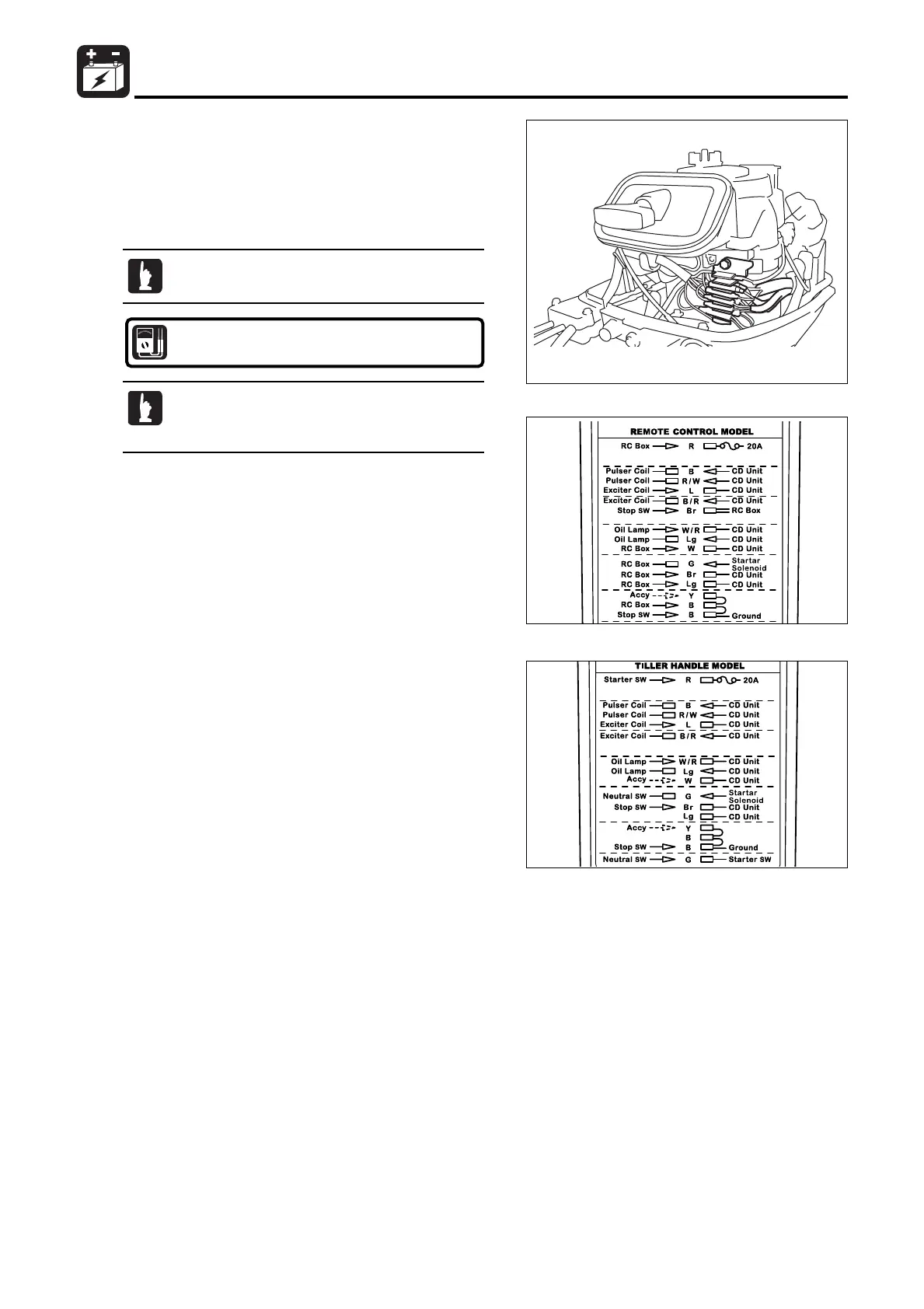

4) Inspection of Pulser Coil
1. Remove cable terminal holder cover.
2. Disconnect cable coupler from pulser coil, and measure
resistance.
Pulser Coil Resistance (Reference value) :
Between Red/White (R/W) - Black (B) : 148 - 222Ω
This test can be made without removing parts.
Check the connection by referring to coupler
connection chart located on the back of cable
terminal holder cover.
Remote control model (EP)
Tiller handle model
E_MFS20C_ch08_081203.qxd 09.1.20 5:33 PM ページ 14
To Next Page
