Lower Unit
4st 9.9/15/20 2008
CAUTION
Do not reuse removed bearing.
3. Use commercially available universal puller plate to remove
ball bearing.
4
3
2
3
4. Use a press to remove oil seal 2 and needle bearing 3 at
the same time.
Before removing, check bearing for play or
deflection. Replace if necessary.
Before removing, check bearing for play or
deflection. Replace if necessary. Direct
attachment with side without O-ring to needle
bearing.
CAUTION
Do not reuse removed bearing.
Needle Bearing Attachment 3 :
P/N. 3BA-99710-0
Driver Rod 4 :
P/N. 3AC-99702-0
2 Oil seal
3 Needle bearing
Do not reuse.
Do not reuse.

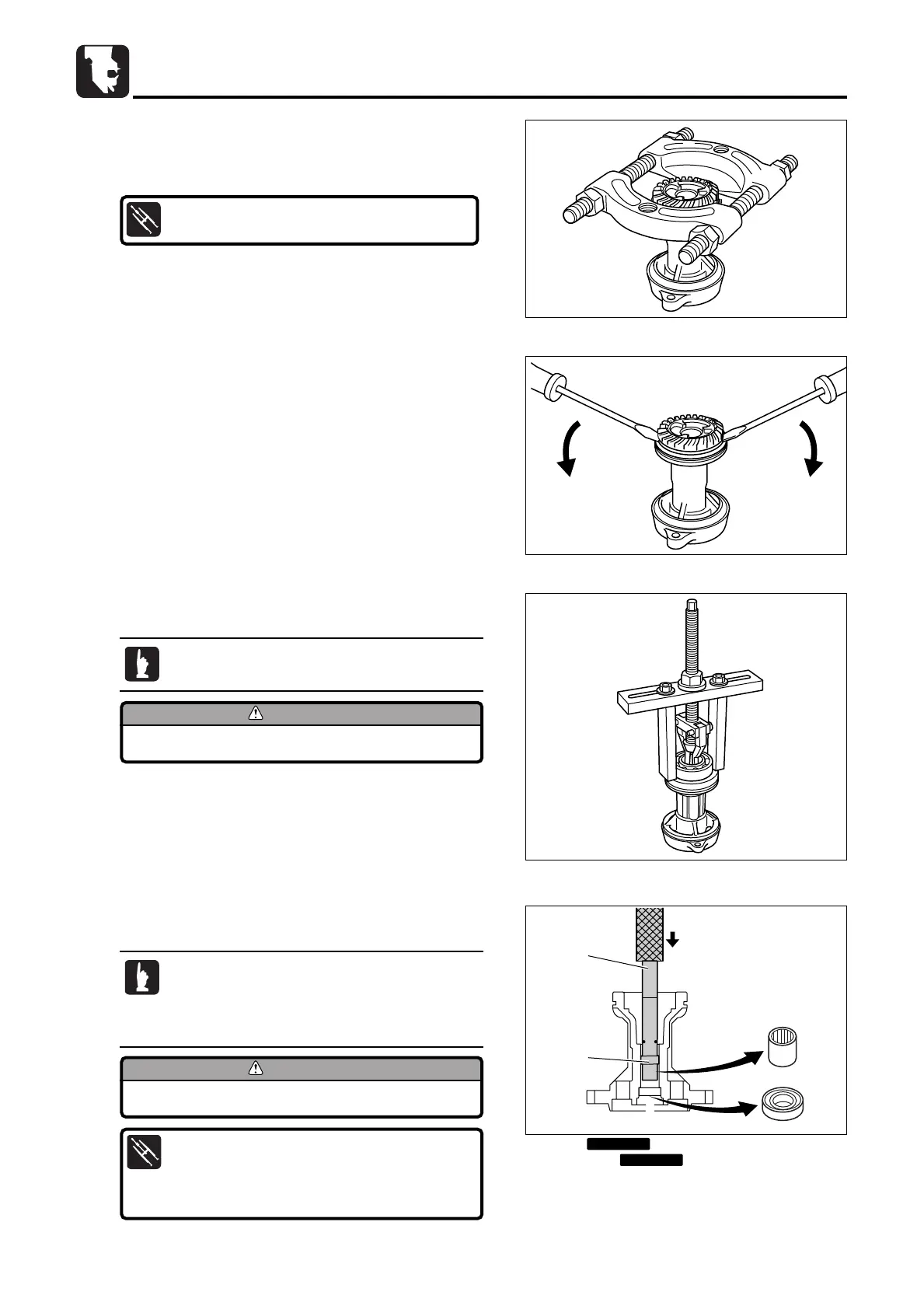

10) Disassembly of Propeller Shaft Housing
1. Tighten universal puller plate to make gap between reverse
gear (C gear) and propeller shaft housing.
2. Remove reverse gear (C gear) ass'y by putting two bladed
screw drivers into the gap to force the gap to open.
Universal Puller Plate :
P/N. 3AC-99750-0
