3-27
3
4st 9.9/15/20 2008

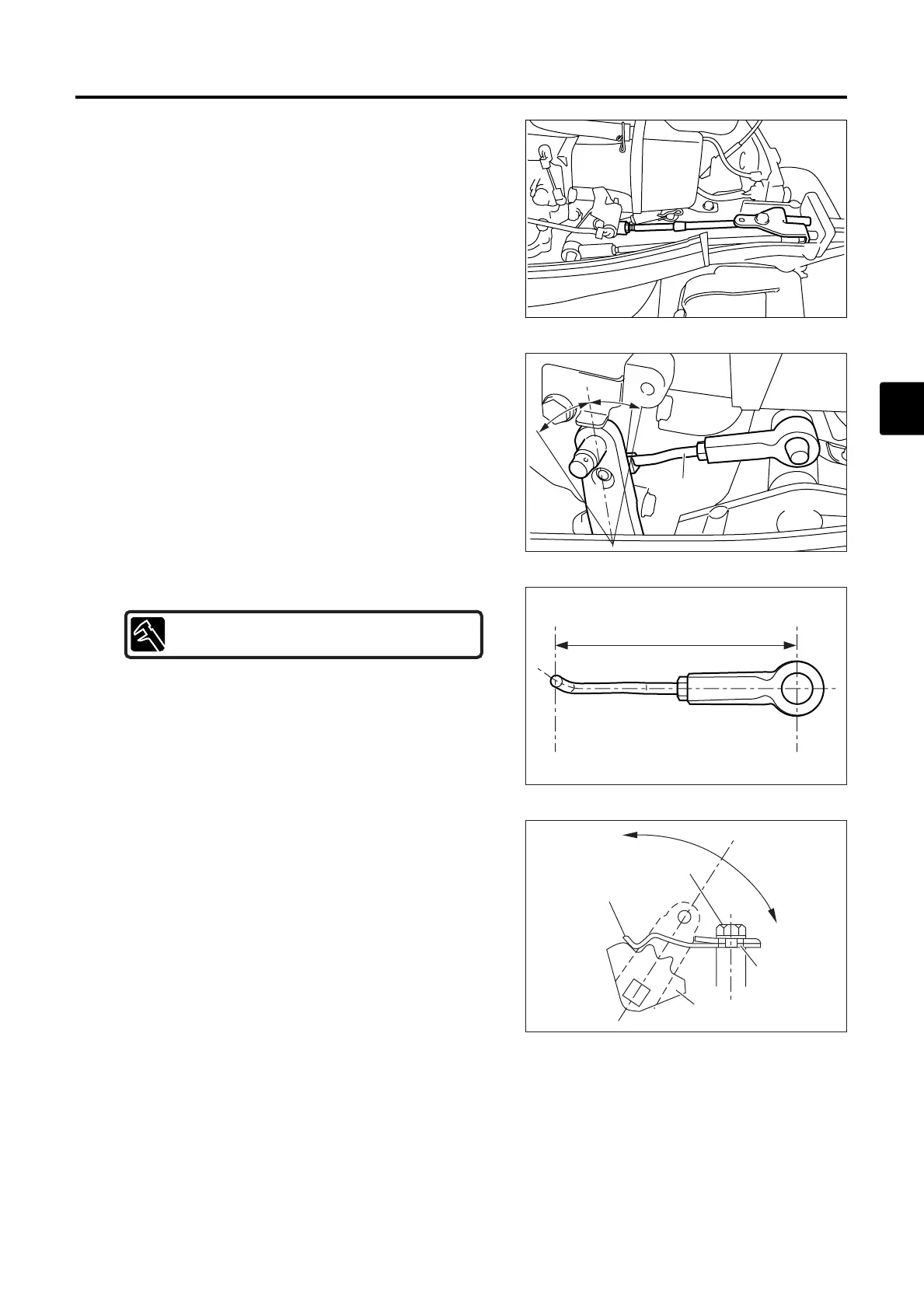

19) Inspection of Gear Shift Operation
Shift gear from neutral (N) to forward (F), neutral (N), and
then to reverse (R) to check that shift operation is performed
smoothly. Adjust shift link rod length and shift cable position
if necessary.
1. Shift gear into neutral (N).
2. Remove shift link rod a.
a
4
6
5
R
F
a
3. Check and adjust standard length a of shift link rod.
5. Perform shift adjustment after assembling lower unit. Loosen
shift lever stopper bolt 4. Set shift lever shaft ass'y 5 fully
to forward, adjust shift lever stopper 6 position, and then,
tighten shift lever stopper bolt 4. Operate shift lever to
check that operation from neutral (N) to forward (F) to
neutral (N) to reverse (R) is normal, and forward and reverse
movements are equal to each other.
Remote Control Model a : 87mm
4. Check that shift lever’s hole and shift arm are on a vertical
line.
