5
5-39
4st 9.9/15/20 2008

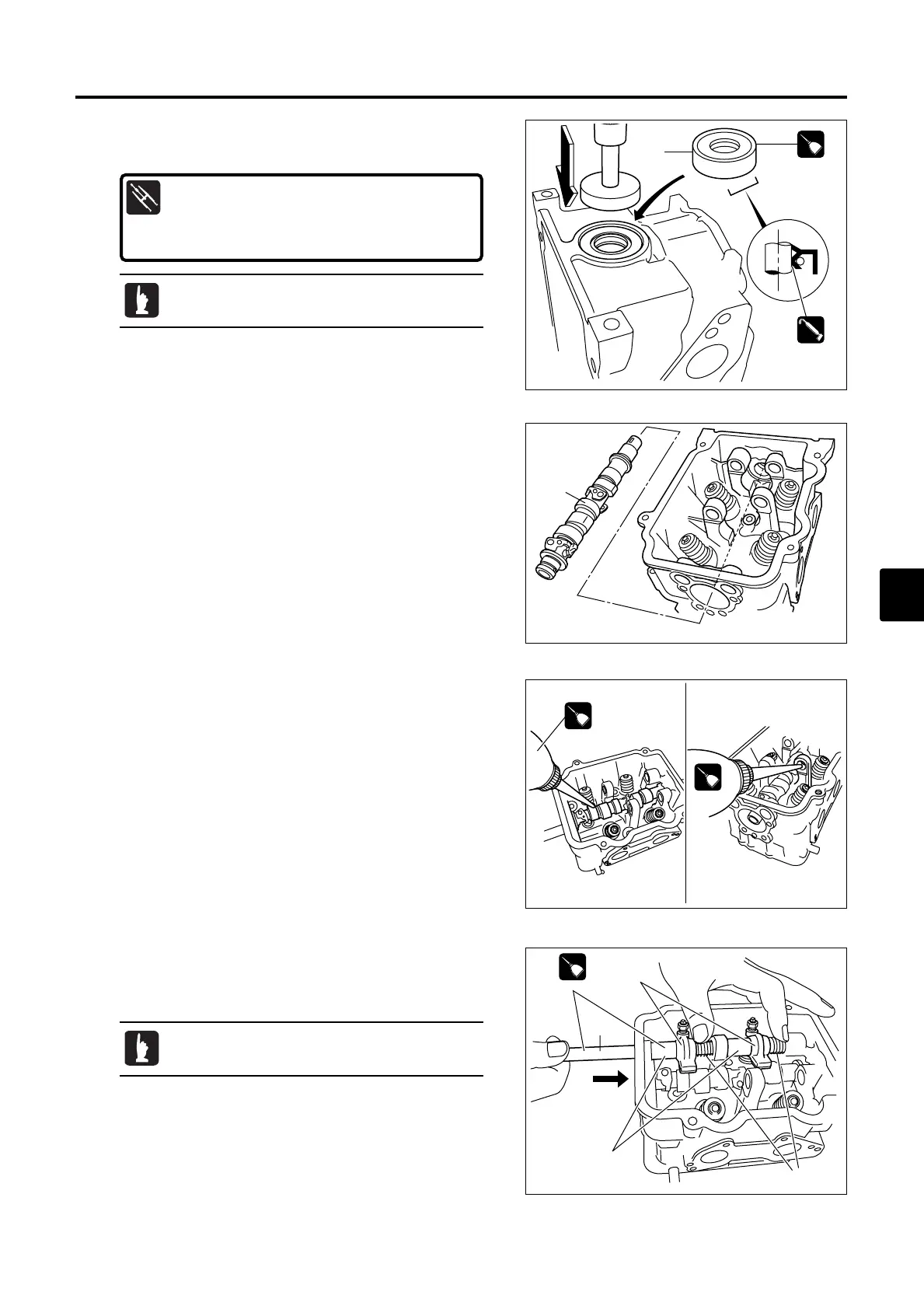

22) Installation of Cam Shaft
1. Apply engine oil to periphery of new oil seal 1 and install it.
Driver Rod :
P/N. 3AC-99702-0
Oil Seal Attachment :
P/N. 3AC-99820-0
2. Install cam shaft 2 from direction a shown.
Apply grease to lip of oil seal before installing it.
1
LIT
GREASE
LIT
4st OIL
4st
OIL
23) Installation of Rocker Arm Shaft
1. Apply sufficient amount oil to cam surface of cam shaft and
journal of rocker arm shaft.
4st OIL
4st
OIL
4st OIL
4st
OIL
2. Install rocker arms 1, springs 3, washers and collar 4 from
lower side of cylinder head a while installing rocker arm
shaft 2.
Apply sufficient amount of oil to rocker arm and
adjust screw after installing rocker arm.
E_MFS20C_ch05_090105.qxd 09.1.20 5:25 PM ページ 39
