6
6-11
4st 9.9/15/20 2008
2. Check clutch 3, spring retainer 5, ball, and push rod 4 for
crack and wear. Replace if necessary.

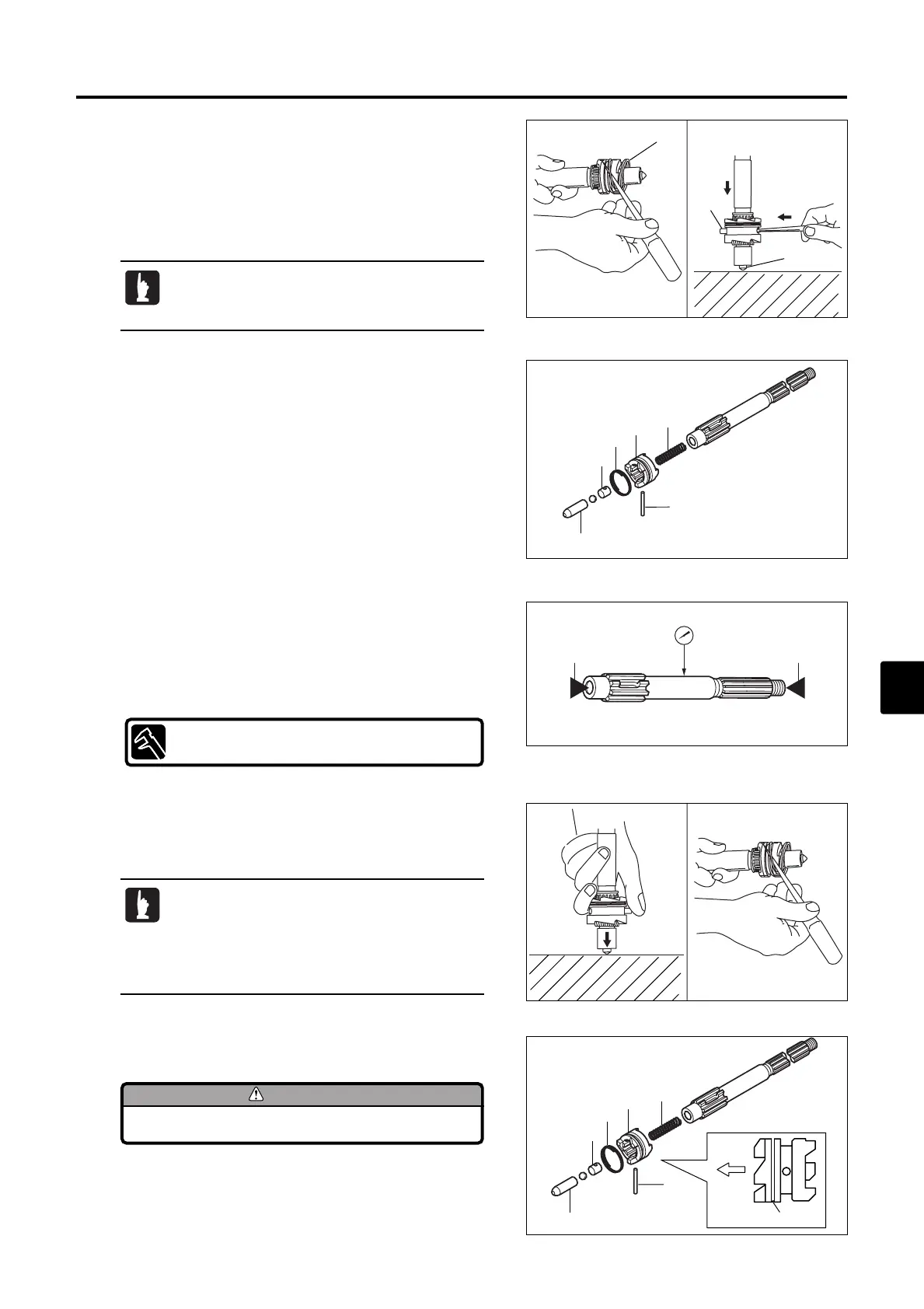

7) Disassembly of Propeller Shaft Ass'y
1. Push small bladed screw driver into clutch pin snap 1 to
remove it while rotating propeller shaft. Then, push clutch pin
2 lightly while applying preload to push rod 4 to remove the
pin. Remove clutch 3, push rod 4, ball, spring retainer 5,
and spring 6.
·
Take care not to allow ball fly out by easing spring
tension gradually.
· Do not reuse removed clutch pin snap.
a a
Runout Limit :
0.05 mm (0.0020 in)
8) Inspection of Propeller Shaft
1. Check propeller shaft for bend and wear. Replace if
necessary.
2. Measure propeller shaft runout.
a Support point
9) Assembly of Propeller Shaft Ass'y
1.
Attach spring 6, spring retainer 5, ball, push rod 4, clutch
3 and clutch pin 2 to propeller shaft.
·
Install clutch with groove a facing push rod side.
· Install clutch pin while applying preload to
push rod.
· Be careful not to allow ball to fly out by spring
tension.
2. Attach new clutch pin snap 1 by using a small bladed screw
driver to turn the snap spirally.
Do not reuse removed clutch pin snap.
E_MFS20C_ch06_081216.qxd 09.1.20 5:27 PM ページ 11
