TOHATSU MFS 9.9 User Manual

8
8-11
4st 9.9/15/20 2008

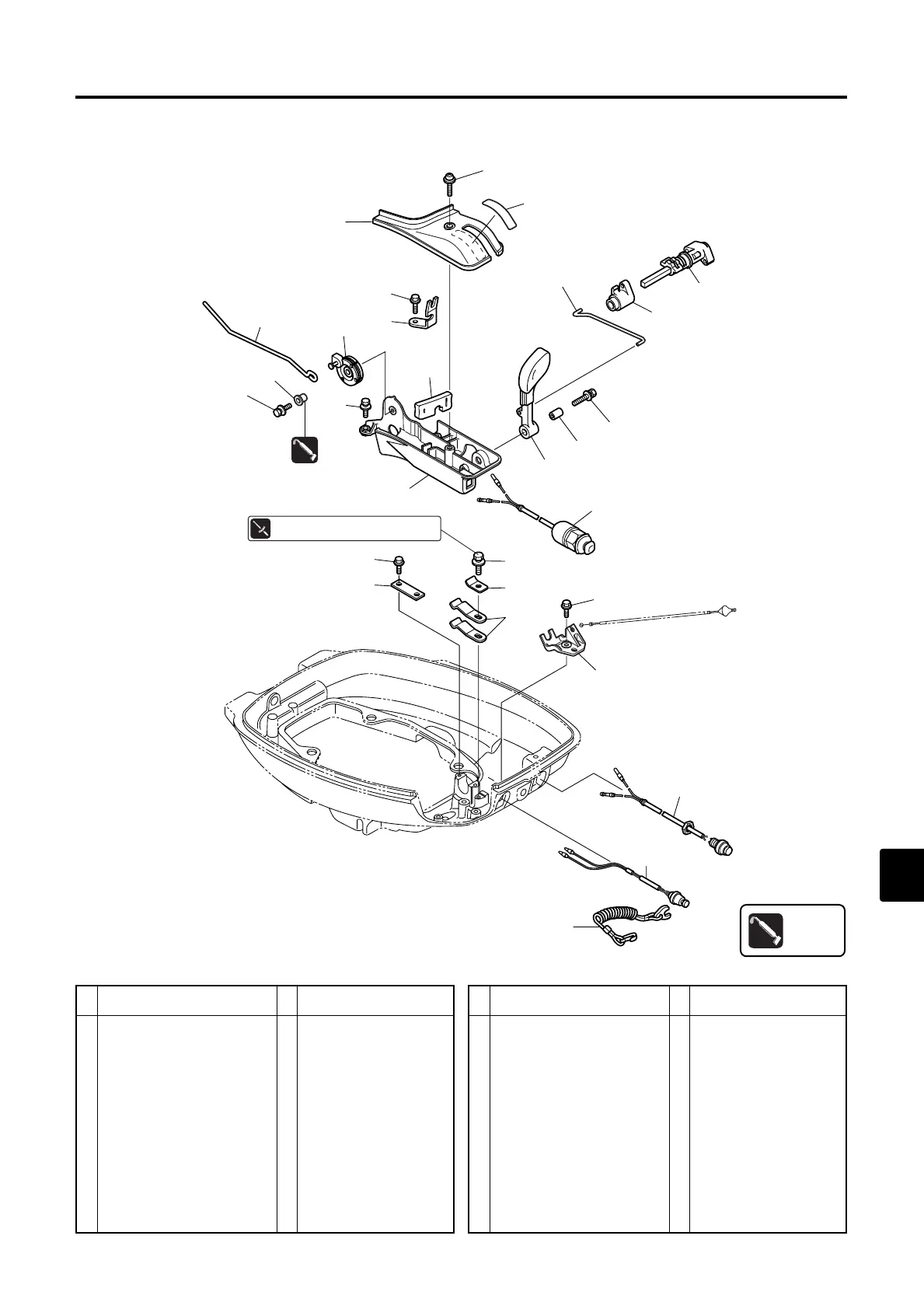

Shift & Stop Switch
P/L Fig. 16
23
22
20
19
12
24
13
14
11
21
10
7
6
5
3
1
26
8
8-1
27
3
2
25
18
9
4
17
16
15
LIT
GREASE
LIT
6 N·m (4 lb·ft) [0.6 kgf·m]
1 Neutral Switch Bracket 1
2 Shift Lever Shaft Holder 1
3 Bolt 3
4 Shift Lever Shaft 1
5 Shift Lever Stopper 2
6 Shift Lever Stopper Plate 1
7 Bolt 1
8 Stop Switch 1
8-1 Stop Switch Lanyard 1
9 Shift Arm 1 for MF & EF
10 Shift Lever Bracket 1
11 Bolt 2
12 Throttle Dram 1
13 Collar, 6.1-14-8.9 1 for MF & EF
14 Bolt 1
Ref.
No.
Description Remarks
Q'ty
15 Shift Lever 1
16 Collar, 6.5-10.5-22.6 1 for MF & EF
17 Bolt 1
18 Shift Lever Rod 1 for MF & EF
19 Throttle Cable Bracket 1
20 Bolt 1
21 Shift Lever Rod Grommet 1 for MF & EF
22 Shift Lever Bracket Cover 1
23 Screw 1
24 Throttle Rod 1 for MF & EF
25 Shift Decal (F, N, R) 1
26 Main Switch 1 for EF
27 Neutral Switch 1
Ref.
No.
Description
Remarks
Q'ty
LIT
GREASE
LIT
E_MFS20C_ch08_081203.qxd 09.1.20 5:33 PM ページ 11
