13) Installatin of Timing Belt

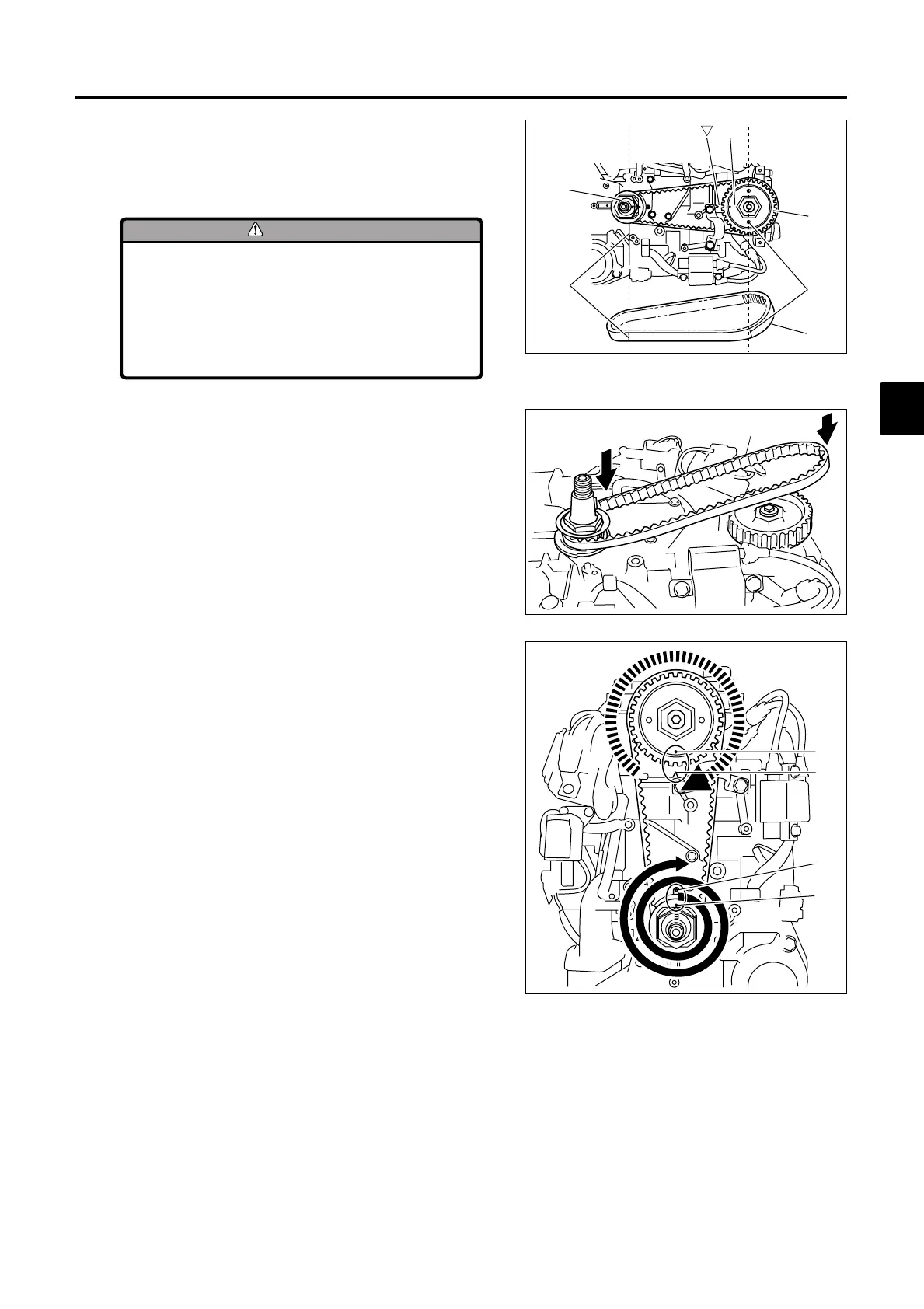

1. Align locating lines a of new timing belt 1 as shown, face
part number side up, and engage belt with timing pulley 2
and then with cam shaft pulley 3.
·
Be careful not to damage timing belt when
installing.
·
Do not twist timing belt, bring inside out, or bend
sharp, or it may be damaged.
·
Be careful not to allow oil or grease to adhere to
timing belt.
?
C/L C/L
a
a
1
3
2
1
1 Timing belt 3 Cam shaft pulley
2 Timing pulley
2. Turn timing pulley clockwise twice, and check that locating
marks a, b and c, d of both pulleys are aligned with each
other respectively.
