TOHATSU MFS 9.9 User Manual

6
6-5
4st 9.9/15/20 2008
TB
13421342
1342
13
9
10
12
1
8
11
1-1
5
2
14
30
29
27
28
25
26
7
6
35
4
3
29
30
33
33
31
34
32
16
23
22
24
16
15
18
17
19
20
21
1373B1373B
OBM
OBM
OBM
OBM
1342
19 N·m (14 lb·ft) [1.9 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]
TB
13421342
1342
4 N·m (3 lb·ft) [0.4 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]
13 N·m (9 lb·ft) [1.3 kgf·m]
LIT
GREASE
LIT

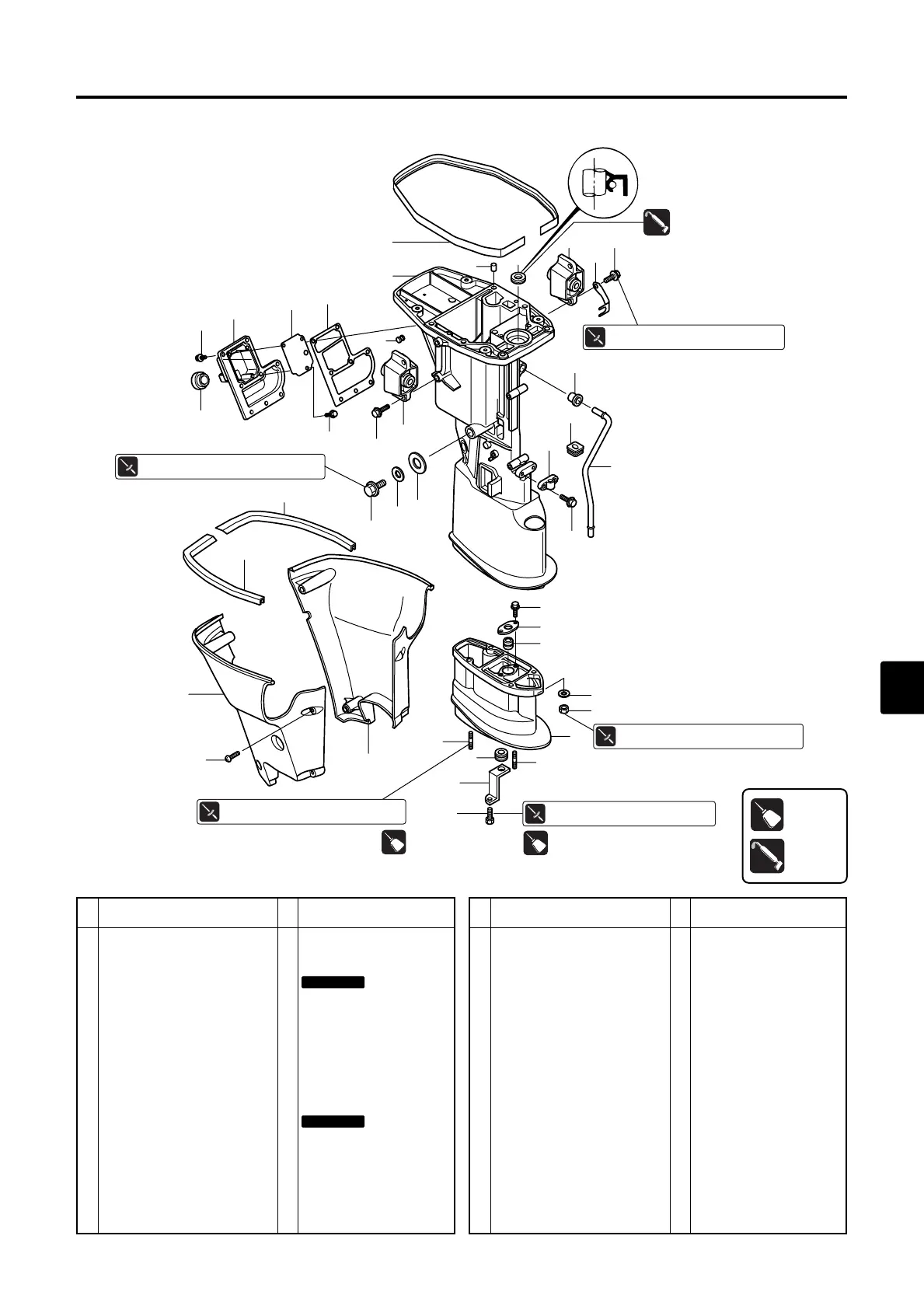

Drive Shaft Housing
TB
13421342
1342
1 Drive Shaft Housing "S" 1
Drive Shaft Housing "L" 1
1-1 Exhaust Plug 1
2 Oil Seal, 12.8-25-7 1
3 Drain Bolt 1
4 Washer, 14.5-24-1 1
5 Dowel Pin, 6-12 2
6 Cam Rod Holder 1 for Transom "L" & "UL"
7 Bolt 2
8 Idle Exhaust Port Grommet 1
9 Idle Exhaust Port Cover 1
10 Idle Exhaust Port Plate 1
11 Bolt 3
12 Idle Exhaust Port Gasket 1
13 Bolt 8
14 Engine Basement Seal 1
15 Extension Housing "UL" 1 for Transom "UL"
16 Stud Bolt 4
17 Washer, 8.1-16-1.5 4 for Transom "UL"
18 Nut 4
19 Drive Shaft Busing 1
Ref.
No.
Description Remarks
Q'ty
20 Bushing Stopper 1
21 Bolt 2
22 Lock Plate 1 for Transom "UL"
23 Water Pipe Auxiliary Mount 1
24 Screw 1
25 Water Pipe "S" 1 for Transom "S"
Water Pipe "L" 1 for Transom "L"
Water Pipe "UL" 1 for Transom "UL"
26 Water Pipe Auxiliary Mount 1
27 Water Pipe Lock Plate 1
28 Water Pipe Seal (Upper) 1
29 Rubber Mount (Upper) 2 for Transom "S" & "L"
Rubber Mount (Upper) 2 for Transom "UL"
30 Bolt 4
31 Drive Shaft Housing Cover (Right) 1 Starboard
32
Drive Shaft Housing Cover (Left) 1 Port
33 Apron Seal 2
34 Tapping Screw, 6-60 4
35 Oil Drain Grommet 1
Ref.
No.
Description Remarks
Q'ty
P/L Fig. 13
Do not reuse.
Do not reuse.
LIT
GREASE
LIT
E_MFS20C_ch06_081216.qxd 09.1.20 5:27 PM ページ 5
