TOHATSU MFS 9.9 User Manual

7-5
4st 9.9/15/20 2008
7
16
16
25
26
18
3
1
2
10
11
14
12
6
13
15
8
7
5
4
9
24
22
23
17
21
20
19
TB
1373B1373B1373B
GREASE
OBMOBM
LIT
GREASE
LIT
1373B
OBM
6 N·m (4 lb·ft) [0.6 kgf·m]
4 N·m (30 lb·ft) [4.1 kgf·m]
GREASE
OBMOBM
LIT
GREASE
LIT
LIT
GREASE
LIT

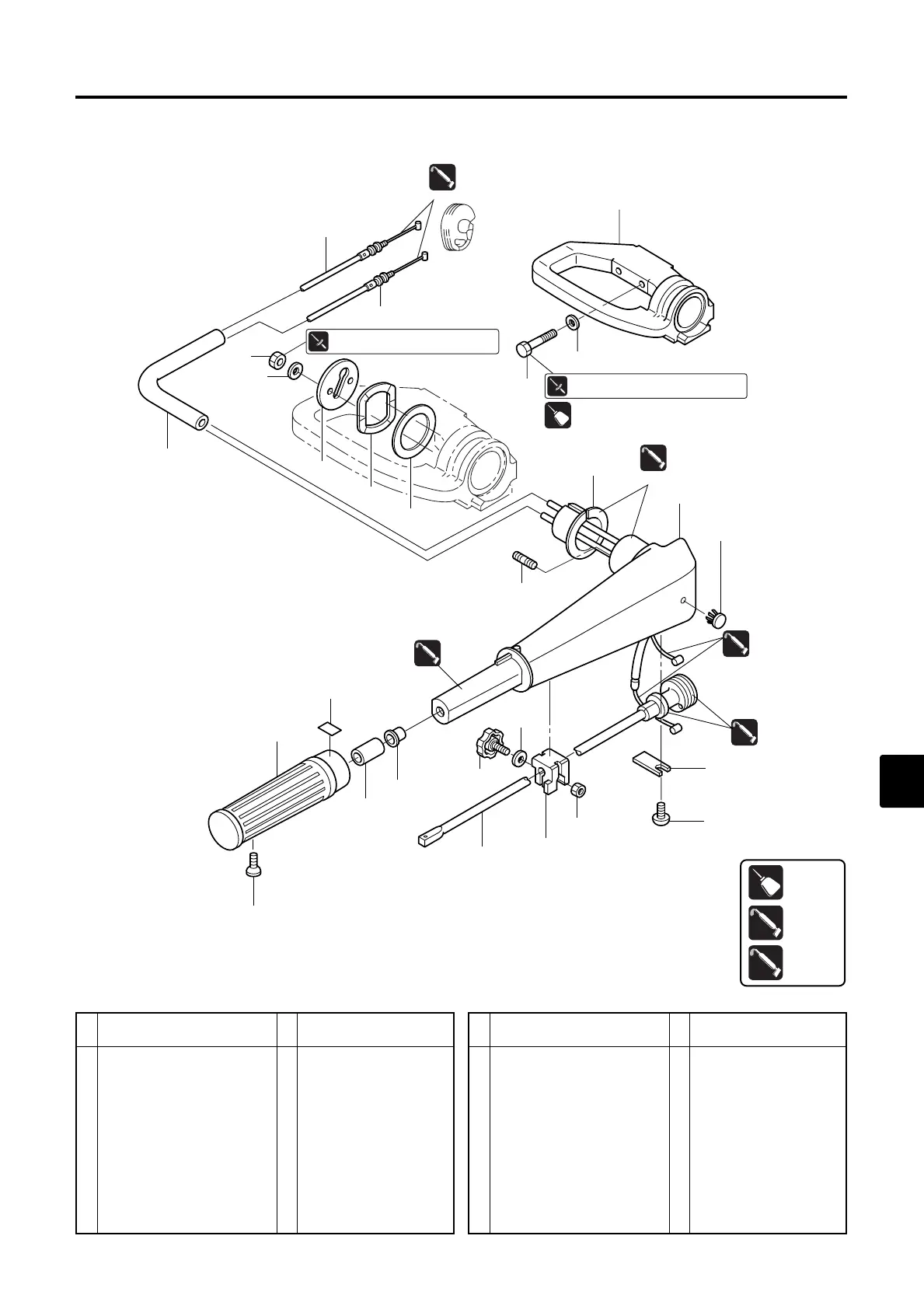

Tiller Handle
1 Tiller Handle 1 for MF & EF
2 Plastic Rivet, 6.5 1
3 Stud Bolt 2
4 Grip 1
5 Throttle Decal 1 for MF & EF
6 Throttle Shaft 1
7 Throttle Shaft Damper 1
8 Bushing, 8.4-10-11 1
9 Screw 1
10 Throttle Shaft Supporter 1 for MF & EF
11 Screw 1
12 Friction Piece 1
13 Adjusting Screw 1
Ref.
No.
Description
Remarks
Q'ty
14 Nut 1
15 Washer 1
16 Throttle Cable 2
17 Protector Tube 1 for MF & EF
18 Tiller Handle Bushing 1
19 Washer, 39-52-1 1
20 Wave Washer, 39.5-52-1.2 1
21 Tiller Handle Cover 1 for MF & EF
22 Nut 2
23 Washer 2
24 Steering Bracket 1
25 Bolt, 10-80 P1.5 2 for MF & EF
26 Washer 2
Ref.
No.
Description
Remarks
Q'ty
LIT
GREASE
LIT
GREASE
OBMOBM
OBM
TB
1373B1373B1373B
1373B
P/L Fig. 12
E_MFS20C_ch07_081216.qxd 09.1.20 5:40 PM ページ 5
