TOHATSU MFS 9.9 User Manual

7-21
4st 9.9/15/20 2008
7
Nylon Nut 5 :
24 N · m (17 lb · ft) [2.4 kgf · m]
4. Put grease into bushing a through grease nipple 7 until it
overflows.

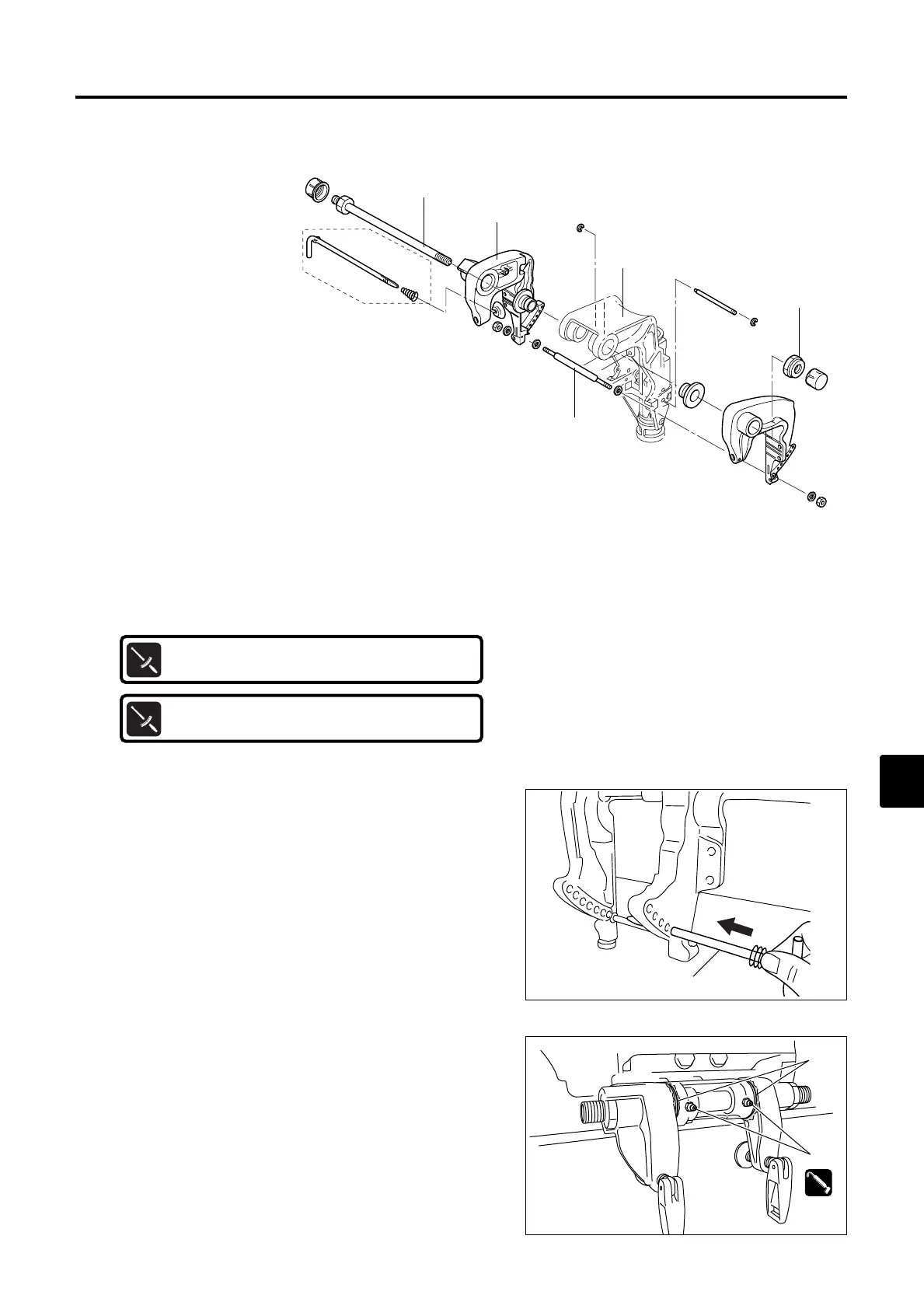

11) Assembly of Clamp Bracket
1. Insert distance piece 2 into clamp bracket 1.
Nut :
6.0 N · m (4.3 lb · ft) [0.6 kgf · m]
3. Install thrust rod 6 and tighten clamp screw.
2. Install clamp bracket 1 to swivel bracket 3, insert swivel
bracket shaft 4, and then, tighten nylon nut 5 and nut to
their specified torque respectively.
4
1
3
5
2
6
a
7
GREASE
OBMOBM
OBM
E_MFS20C_ch07_081216.qxd 09.1.20 5:40 PM ページ 21
