3-8
Maintenance
4st 9.9/15/20 2008
8) Inspection of Water Pump
· Disconnect shift rod at lower side of shift rod
joint 1.
· Use spring pin tool to remove spring pin.
· Do not reuse removed spring pin.
3. Add recommended gear oil to specified level if it is lacking.
4. Attach upper oil plug 1.

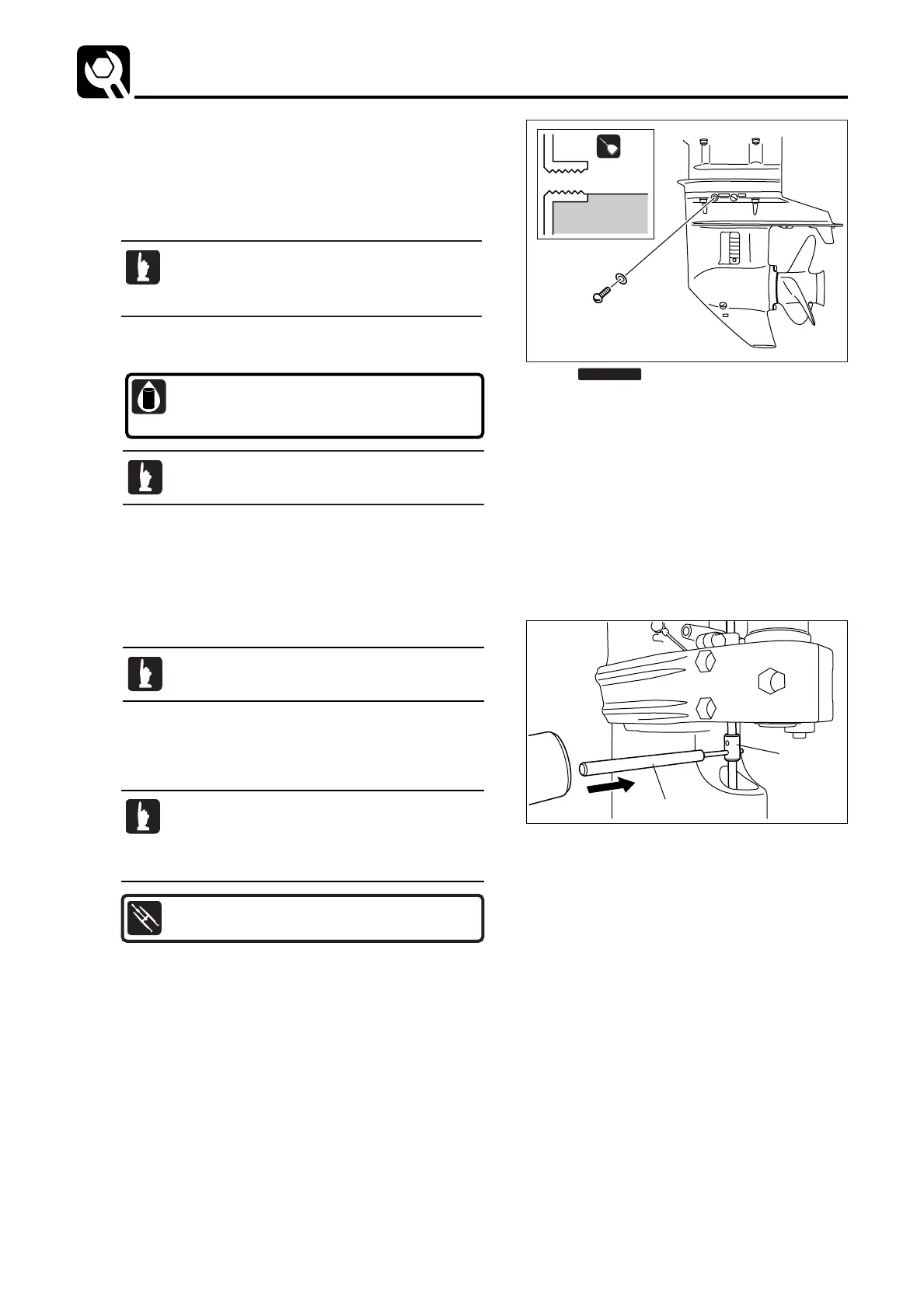

7) Inspection of Gear Oil Quantity
1. Tilt down outboard motor to make it vertical.
2. Remove upper oil plug 1 and check level of gear oil in the
gear case.
Gear Oil :
Hypoid Gear Oil
API : GL-5 SAE : #90
Spill of some oil from plug hole a as plug is
removed indicates that gear case is filled with
specified quantity of gear oil.
Spring Pin Tool A2:
P/N. 345-72227-0
If the oil is lacking much, add through lower oil
plug hole.
2Washer
Do not reuse.
1. Remove spring pin and disconnect shift rod.
(Disconnect shift rod at lower side of shift rod joint 1.)
Inspection of water pump does not require
removal of power unit from outboard motor body.
E_MFS20C_ch03_090105.qxd 09.1.20 5:23 PM ページ 8
