HYDRAULIC SYSTEM
4-24 Z580/Z593/Z595 Diesel Service Manual
4
Purging the Hydraulic System

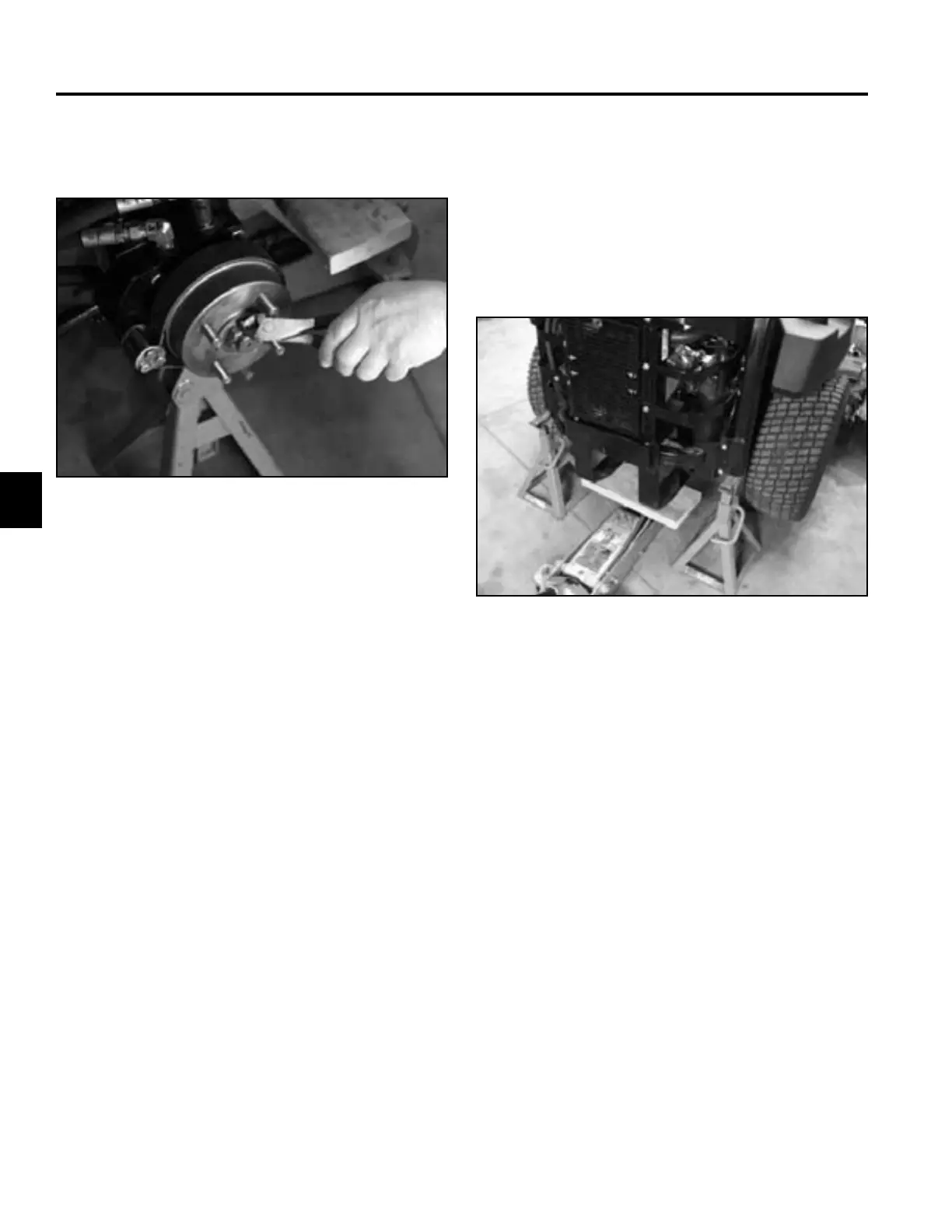

13. Install a cotter pin into the wheel motor shaft (Fig.
322).
The hydraulic system is normally self-bleeding however;
it may be necessary to bleed the system if fl uid is
changed, or after work is performed on the system.
1. Raise rear of the machine so the wheels are off the
ground and support it with jack stands (Fig. 323).
Fig 322 PICT-3350
Fig 323 PICT-3464
14. Install the rear wheel.
15. Install the negative battery cable.
16. Lower the seat.
