CHASSIS
3-30 Z580/Z593/Z595 Diesel Service Manual
3

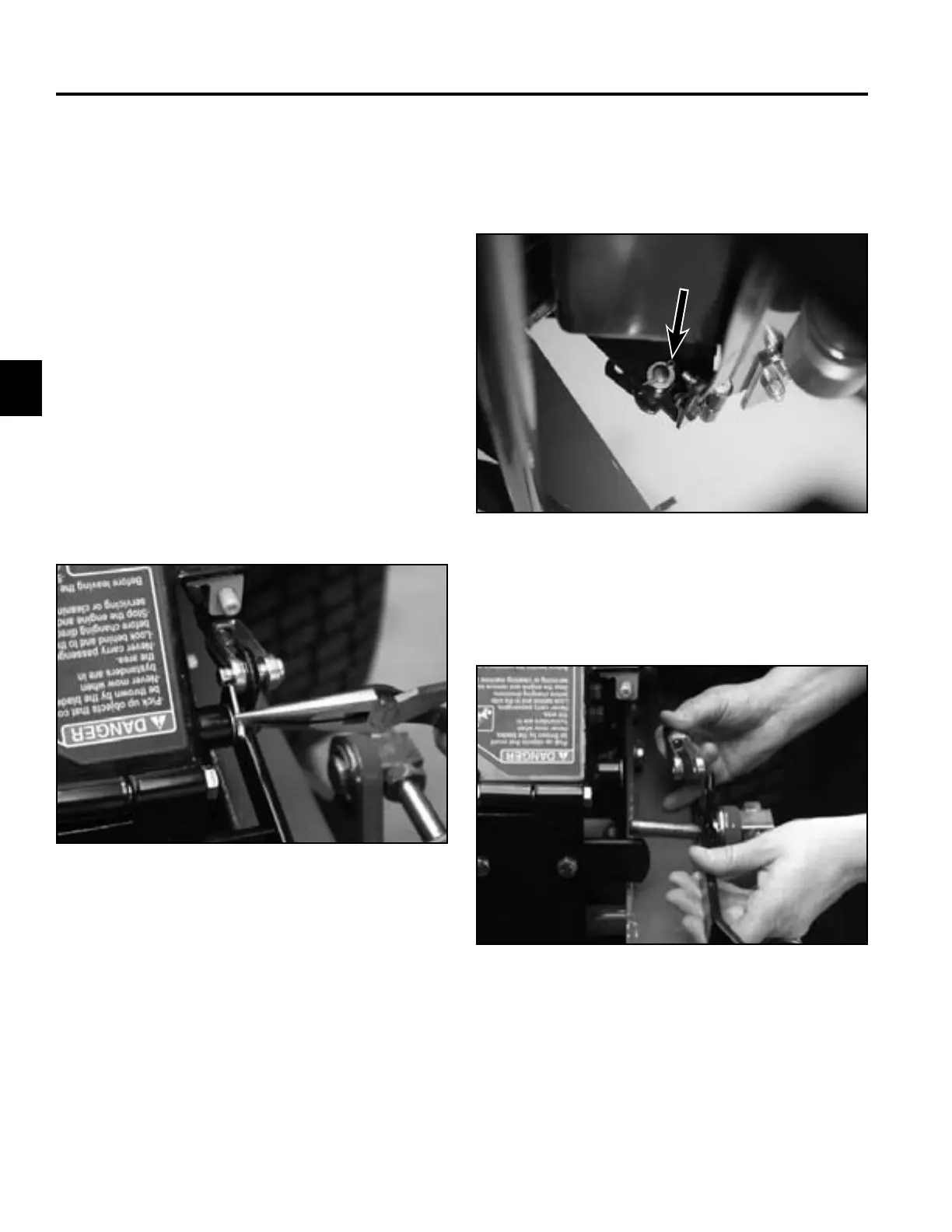

6. Lift the fl oor pan assembly.
7. Remove the brake lever pivot shaft cotter pin (Fig.
115).
Fig 115 IMG_7922a
8. Slide the brake lever out of the pivot bushings (Fig.
116).
Fig 116 PICT-2913
The left fuel tank and hood have been removed for photo
purposes.
1. Raise the seat.
2. Disconnect the negative battery cable from the
battery terminal.
3. Lower the seat.
4. Release the parking brake (forward position).
5. Remove the cotter pin and clevis pin securing the
brake linkage yoke to the brake lever assembly (Fig.
114).
Fig 114 PICT-2915
Brake Lever Replacement
Brake Lever Removal
To Next Page
