5-51Z580/Z593/Z595 Diesel Service Manual
5
Air Cleaner Replacement
Air Cleaner Removal
3. Position the cooling fan and shroud assembly into
the bottom radiator plate (Fig. 595).
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.
4. Remove the front engine panel (Fig. 597).

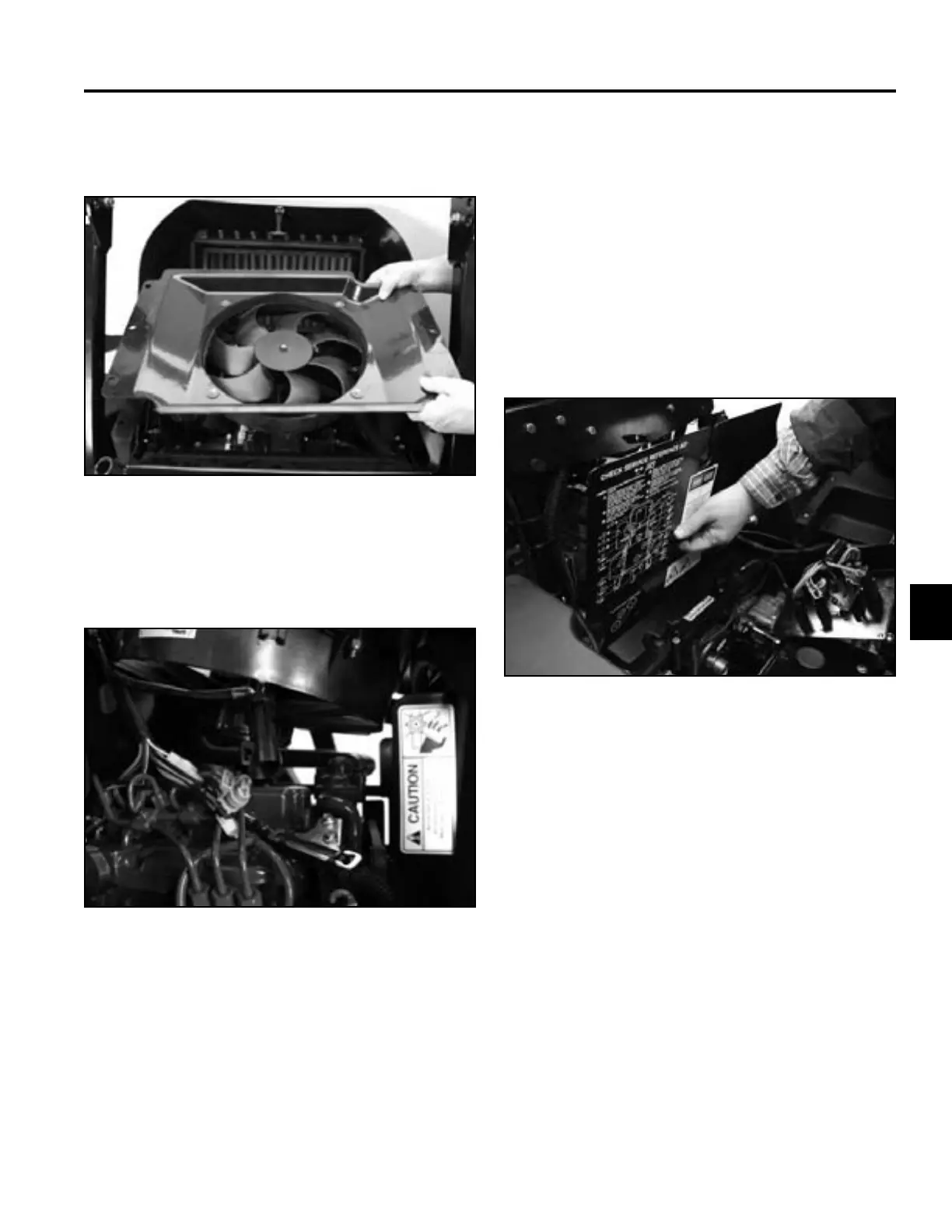

Fig 595 PICT-3755
Fig 597 IMG_7895
5. Install the Radiator. Refer to “Radiator Installation”
on page 5-46.
4. Plug the cooling fan connector into the harness
connector (Fig. 596).
Fig 596 PICT-3754
